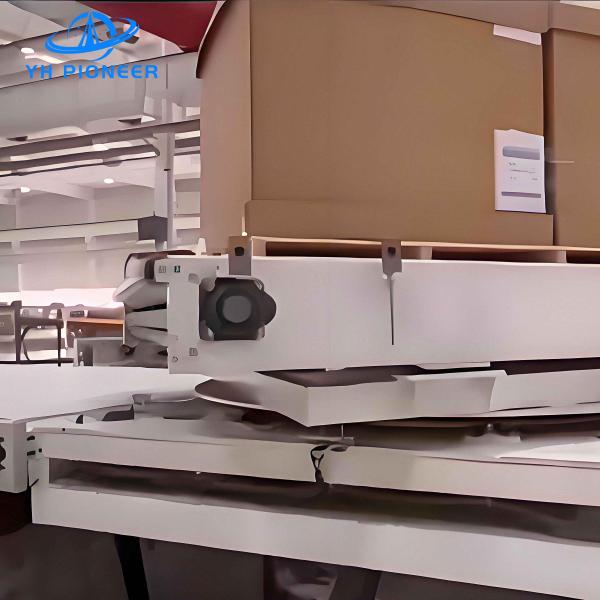

Robust Chain Turntable Conveyor for Precise 90 Degree Pallet Turns High Load
Robust Chain Turntable Conveyor for Precise 90 Degree Pallet Turns High Load
Robust Chain Turntable Conveyor for Precise 90 Degree Pallet Turns High Load
Robust Chain Turntable Conveyor for Precise 90 Degree Pallet Turns High Load
Robust Chain Turntable Conveyor for Precise 90 Degree Pallet Turns High Load
Robust Chain Turntable Conveyor for Precise 90 Degree Pallet Turns High Load
Specifications
Brand Name :
YH PIONEER
Place of Origin :
China
MOQ :
1 Sets
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets/month
Delivery Time :
To be negotiated
Packaging Details :
Wooden box
Rotating Diameter :
2000mm
Strand Number :
3 Strands
Strand Centers :
500mm
Height :
500 mm ± 50 mm Heavy Duty Adjustable Feet
Chain :
10A-2 (15.875 mm Pitch) Duplex Chain Guided by UHMWPE Track
Rotating Angle :
Std. 90 Degree
Turntable Rotating Speed :
3 - 5 rpm, Soft Start/Stop and Variable by Inverter
Chain Table Conveying Speed :
10 m/min, Constant
Description

Robust Chain Turntable Conveyor for Precise 90 Degree Pallet Turns and High Load Capacity

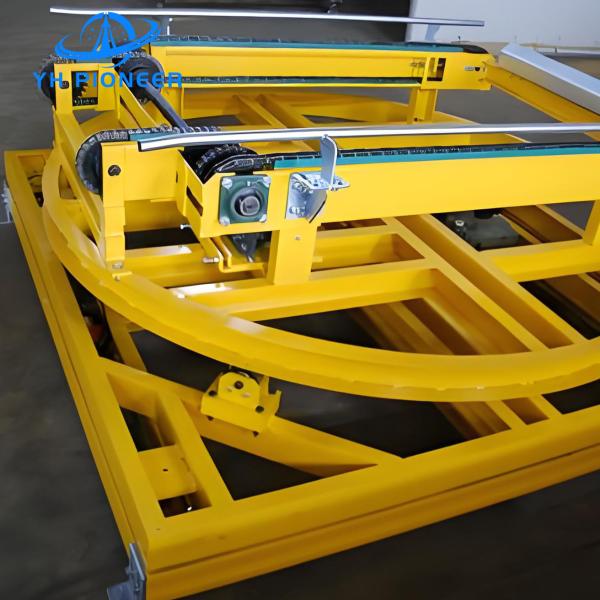

Chain Turntable Conveyor

We provide professional Chain Turntable Conveyor, support the conveying of various types of bottles, and provide a variety of conveying types.

The Chain Turntable Conveyor is a robust and highly functional material handling equipment designed to facilitate the efficient rotation and sorting of products in various industrial applications. Engineered with a heavy-duty build and precision, this conveyor system is tailored for integration into existing production lines, offering a seamless solution for heavy-load handling and precise positioning.

PRODUCT PARAMENTERS

Rotating Diameter
 2000 mm
Strand Number
 3 Strands
Strand Centers
 500 mm
Height
 500 mm ± 50 mm Heavy Duty Adjustable Feet
Chain
 10A-2 (15.875 mm Pitch) Duplex Chain Guided by UHMWPE Track
Rotating Angle
 Std. 90 Degree
Turntable Rotating Speed
 3 - 5 rpm, Soft Start/Stop and Variable by Inverter
Chain Table Conveying Speed
 10 m/min, Constant
Adjustable Side Guide
 Yes
Walkway Plates
 Yes
Driven Type
Rotating Driven by Slewing Bearing;
Chain Table Driven by 10A-2 Duplex Roller Chain;
Voltage
 380 VAC 3 ph 50/60 Hz
Motor
Rotating Motor: 0.55 kw DELI Braked Gear Motor;
Chain Conveying Motor: 0.75 kw GPG Motor;
Frame Finish
 Powder Coated (Std. RAL 7035)
Load Capacity
 1500 kg

*It can be modified according to customer requirements.

Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.

PRODUCT ADVANTAGE

*The Chain Turntable Conveyor is designed for heavy-duty applications, capable of withstanding weights up to 2000 kg.
*It can adapt to any rotational requirement within its range, accommodating various pallet sizes and types.
*The roller or chain platform can be installed on the rotating bearing according to layout requirements and pallet specifications, making it easily adaptable to any transport speed, pallet type, and weight.
*The conveyor offers high load capacity, precise pallet rotation, reduced manual operation, and enhanced production efficiency and safety.

PRODUCT SPECIFICATIONS

Rotating Diameter: 2000 mm, accommodating large-scale products.
Strand Number: Equipped with 3 strands for enhanced strength and support.
Strand Centers: Spaced at 500 mm centers for uniform distribution and load bearing.
Height (H): Adjustable from 500 mm ± 50 mm, mounted on heavy-duty adjustable feet for stability on uneven surfaces.
Chain: Utilizes a 10A-2 (15.875 mm Pitch) Duplex Chain, guided by UHMWPE track for smooth operation.
Rotating Angle: Standard 90-degree rotation, customizable as needed.
Turntable Rotating Speed: Variable from 3 - 5 rpm with soft start/stop and adjustable via inverter.
Chain Table Conveying Speed: Constant at 10 m/min.
Adjustable Side Guide: Included for precise load control.
Walkway Plates: Provided for safe operator access.
Driven Type: Rotating driven by slewing bearing; chain table driven by 10A-2 Duplex Roller Chain.
Voltage: Operates on 380 VAC 3 ph 50/60 Hz.
Motor: Features a 0.55 kw DELI Braked Gear Motor for rotation and a 0.75 kw GPG Motor for chain conveying.
Frame Finish: Powder coated in standard RAL 7035 for durability and resistance to wear.
Load Capacity: Designed to handle a substantial load of up to 1500 kg.

PRODUCT MATERIALS

Chain: Made from durable materials with a pitch of 15.875 mm, ensuring reliable load support and movement.
Rollers: Constructed with a roller diameter of Ø76 mm and tube wall thickness of 3 mm, made from galvanized steel for added strength and corrosion resistance.
Axle: Features an axle diameter of Ø20 mm, retained by female thread with the use of M12 bolts for secure fastening.

PRODUCT APPLICATION

*The Chain Turntable Conveyor is widely applied in industries such as food and beverage, pharmaceuticals, and general manufacturing for pallet transfer and product rotation.
*It is particularly useful in scenarios where space is limited but the need for efficient material handling is high.
*The turntable conveyor can be integrated into existing systems or used as a standalone solution for various material handling challenges, improving production flow and efficiency

SERVIC and SUPPORT

We provide comprehensive maintenance services to ensure the Rotary Turntable Conveyor remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
