We provide professional Modular Belt with Flight with Friction, support the conveying of various types , and provide a variety of conveying types.

The Modular Belt with Flight is a specialized conveyor belt designed for applications requiring the controlled elevation and transportation of materials. This belt features integrated flights or side guides that prevent spillage, making it ideal for industries where material containment during transit is crucial.

*Reduced Friction: The belt's surface with protrusions effectively decreases friction between the belt and the conveyed materials, suitable for delicate or abrasion-sensitive products.
*High Load Capacity: The POM material offers a high working load capacity, making it ideal for heavy-load transportation requirements.
*Chemical Resistance: PP pins provide good chemical resistance, suitable for use in acidic environments and the chemical industry.
*Temperature Adaptability: Both POM and PP materials are stable over a wide temperature range, ensuring reliable operation in various conditions.
*Low Maintenance: The wear resistance and self-lubricating properties of the materials reduce maintenance needs and costs.
*Long Service Life: The durable materials and design contribute to an extended service life for the conveyor belt.
*Versatility: Suitable for a wide range of industrial applications, particularly in the automation of food, pharmaceutical, and chemical industries.
*Easy to Clean: The smooth surface is easy to clean, meeting hygiene and sanitation standards.

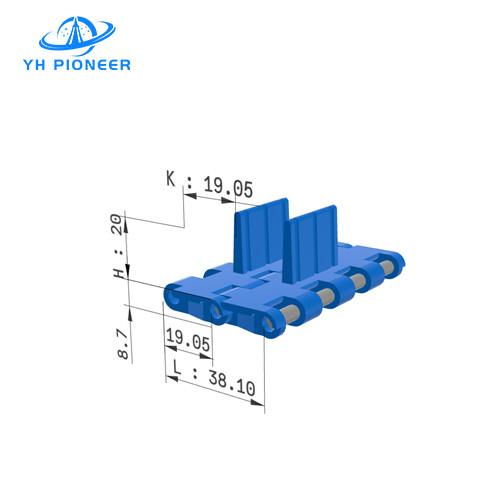

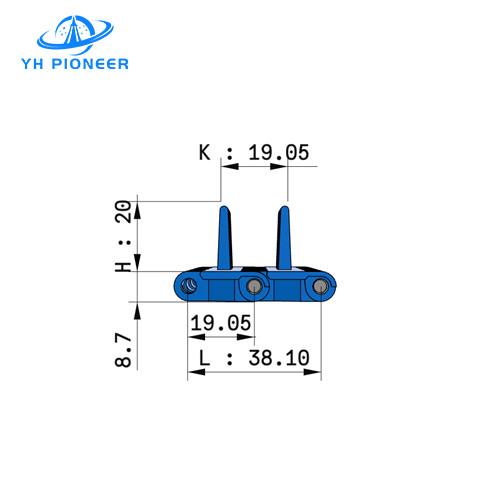

PRODUCT SPECIFICATIONS

*Belt Material: Polyoxymethylene (POM), suitable for temperatures ranging from -30°C to 90°C.
*Pin Material: Polypropylene (PP).
*Belt Load Capacity: 17280N per meter for POM.
*Belt Opening Rate: 8% for optimal ventilation and material release.
*Belt Color: Available in white or coffee color.
*Weight: 13.3 kg/m^2.
*Standard Module Width Multiplier: 1.

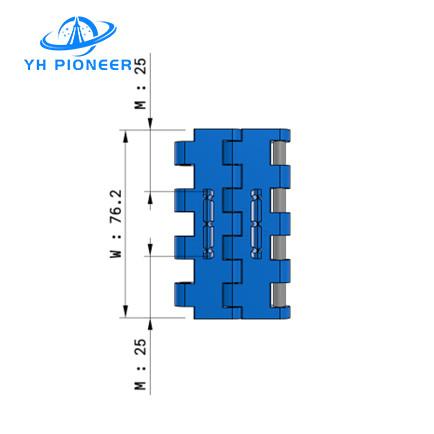

*Belt Width: 76.2 mm.
*Standard Pitch Multiplier: 1.
*Standard Belt Width: W = 76.2 mm multiplied by the number of standard modules (N).

PRODUCT MATERIALS
