5KG To 25KG Bag Making Vertical Form Fill Seal Machine For Building Sand

Product Description:

This automatic weighing packing system include:

1. Inclined belt elevator / Z bucket elevator:

It is made by 304 stainless steel frame or food class plastic ABS buckets.
The elevator is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc.
For the lifting machine, the hopper is driven by the chains to lift. It's used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.
Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.
Speed: Max 90buckets/min, each bucket 1.8L
Power: 550W Voltage: 220V or 380V 3PHASE
The vibration hopper is 75x45x10cm

2. Double head weigher / Multihead weigher:

Main Features:
1) The most efficient and accurate weight calculation by computer.
2) Circle dump avoid materials drops together to avoid break and pile up
3) 10.1 inch touch screen with multiple languages.
4) Adjustable backlight control for vision protection
5) Compatible with single packaging machine for automatic weighing.
6) Instant hopper vibration index for better control.
7) 50 preset programs for multiple tasks.
8) Individual setting linear vibration amplitude
9) Templated motor drive, convenient for dismantling
10) adopts latest CAN BUS electronics and DSP technology, each head unit with modular system control

Technical Parameters:

3. Working platform:

It can made by 304 stainless steel or iron steel, the size can made according to customer requirements.

4. vertical form fill seal packaging machine:

I. The scope of packaging
It's suitable to use in packing the high accuracy and easy fragile material, such as: puffy food, crispy rice, Potato Chips, Snacks, candy, pistachio, sugar, apple slices, dumpling, chocolate, pet food, small wares, granular aquafeed etc.
II. The major performance and structural feature
*Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;
*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
* minimize the loss with complete automatic warn protection function;
* supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma
* The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.

Technical parameter:

5. Output conveyor:

Relevant supporting equipment:

1.VFFS Packaging Machine line

2.Multihead weigher, Linear weigher, Auger filler, Counting machine

3.Automatic vacuum packing machine line

4.Automatic secondary packing machine(put small bags into large bags)

5.5-50kg Automatic bag feeding packing machine

6.Check weigher, Metal detector, Conveyor, Elevator

7.Automatic carton case packing line

8.Robot Palletizing Line

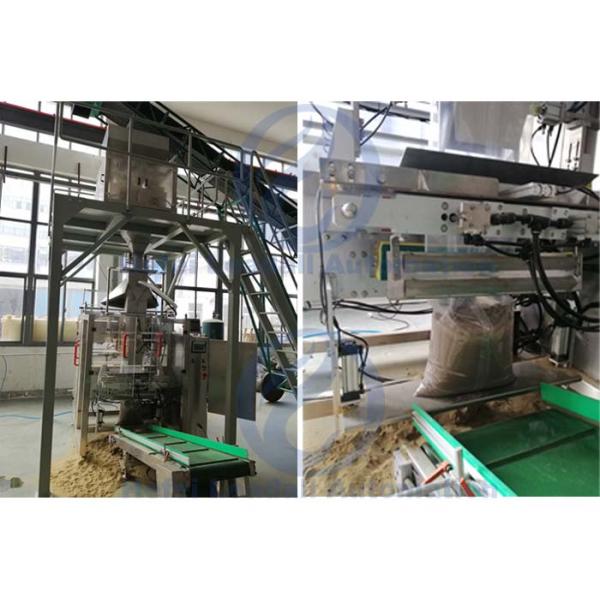

More detailed machine photos:
