High Speed Auto Palletizer Machine Easy Operating For 40kg To 50kg Bag
High Speed Auto Palletizer Machine Easy Operating For 40kg To 50kg Bag
High Speed Auto Palletizer Machine Easy Operating For 40kg To 50kg Bag
High Speed Auto Palletizer Machine Easy Operating For 40kg To 50kg Bag
High Speed Auto Palletizer Machine Easy Operating For 40kg To 50kg Bag
High Speed Auto Palletizer Machine Easy Operating For 40kg To 50kg Bag
Specifications
Brand Name :
Hefei Leadall
Model Number :
LA-MD-600
Certification :
CE ISO9001
Place of Origin :
Hefei, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5 Sets Per Month
Delivery Time :
40 to 50 work days
Packaging Details :
Standard Wooden Cases for Export
Palletizing layer :
2-10 layers
Palletizing capacity :
550-650 bags hourly for 40-50kg/bag
Power Supply :
AC380V/50HZ, 11KW
Air consumption :
130NL/min
Description

High Speed Automatic Palletizer Machine / Palletizer Machine For 40kg To 50kg Bag

High Position Palletizer for Stacking on Pallets

Working Principle:

1. Product Introduction

High - level palletizing machine is a special high speed automatic palletizing machine. High level palletizing machine LA-MD1000 could lift bag to a certain height, then transfer, marshall, layer and stow the material bag according to the predetermined way on the empty pallet with layer type, and finally output with the finished pallets.

2. Features

The high - level palletizing machine is to carry out each layer according to the bag counting. The material bag is changed by the transposition machine to reach the preset pallet type. The marshalling machine determines which bags are in which layer, and then the bag pusher accurately push the bag onto the pallet. After it finished the palletizing, the loading car will put the full pallet on the conveyor, waiting for the forklift to take away.

Features of this palletizing system:

1. Automatic stacking machine

2. Full automatic

3. Robot hand-simulated stacking

4. 1/3 cost of robot palletizer machine

5. Working stable and smoothly

6. Fomous brand module,low maintenance cost

7. PLC system with full touch screen panel

8. Easy installation and operating

9. Customized design or OEM service available

10. High stacking capacity

11. Stacking 550-650 bags hourly
12. Suit for different bags,such as woven bags etc

13. Suit for various pallet size
14. Various of bags stacking style for choose

15. Full automatic, stacking bags flat and beautiful

Equipment Composition:

1 Slope Conveyor
2 Roller Conveyor
3 Servo Transposer
4 The Marshalling Machine
5 Push Bags System
6 Layering Device
7 Pallets Library
8 Pallet Conveyor
9 Block Conveyor

Technical Parameters:

Product Name Automatic bag palletizer machine auto bag stacking machine
Item LA-MD-600
Applicable stacking/palletizing for woven bags, kraft bags, paper-plastic compound bags
Voltage AC380V/50HZ, 11KW
Air source 0.6-0.8MPa
Air consumption 130NL/min
Palletizing capacity 550-650 bags hourly for 40-50kg/bag

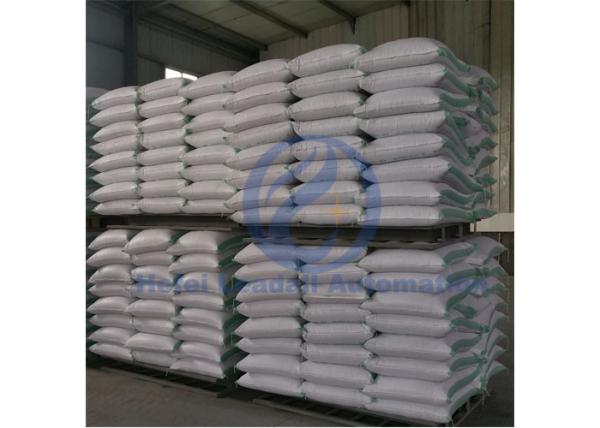

Stacking style:

Total 9 layer 50 bags: 6 bags/layer * 8 layer + 2 bags * 1layer = 50 bags
Total 9 layer 54 bags: 6 bags/layer * 9 layer = 54 bags
Total 10 layer 50 bags: 5 bags/layer *10 layer = 50 bags
Customized at your need

Pallet stype:

Pallet size 1650mm×1450mm, 1600mm×1400mm or customized size
Stacking machine(host) size L*W*H 2800*1900*3500mm, not including the conveyor size

Relevant supporting equipment:

1 VFFS Packaging Machine line
2 Multihead weigher, Linear weigher, Auger filler, Counting machine
3 Automatic vacuum packing machine line
4 Automatic secondary packing machine(put small bags into large bags)
5 5-50kg Automatic bag feeding packing machine
6 Check weigher, Metal detector, Conveyor, Elevator
7 Automatic carton case packing line
8 Robot Palletizing Line

Normally we have some questions to customers:

1 What is your packing product?
2 How many grams per bag?
3 What is your bag size(the width and length)?
4 What is voltage and Hertz in your local?
5 If you want to design the special packing machine, we can manufacture the packing machine as your requirements.

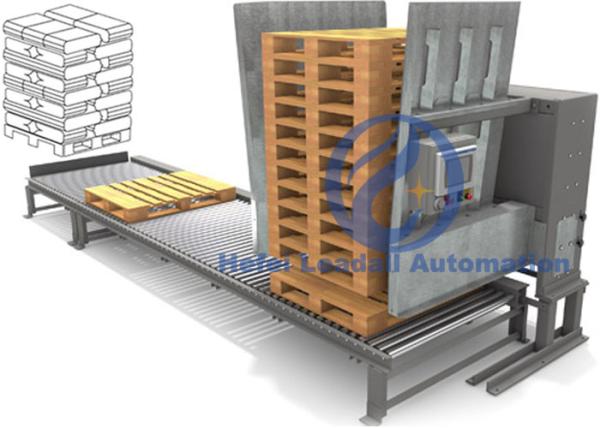

Machine detailed photos:

High Speed Auto Palletizer Machine Easy Operating For 40kg To 50kg Bag

High Speed Auto Palletizer Machine Easy Operating For 40kg To 50kg Bag
