Aquatic Feed Big Bag Packing Machine For 25Kg PP Woven Bag With Label
Aquatic Feed Big Bag Packing Machine For 25Kg PP Woven Bag With Label
Aquatic Feed Big Bag Packing Machine For 25Kg PP Woven Bag With Label
Aquatic Feed Big Bag Packing Machine For 25Kg PP Woven Bag With Label
Specifications
Brand Name :
Hefei Leadall
Model Number :
LA-25K
Certification :
CE ISO
Place of Origin :
Hefei , China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, MoneyGram, Western Union
Supply Ability :
10 Sets Per Month
Delivery Time :
60 to 80 work days
Packaging Details :
Standard Wooden Case for Export
Product Name :
Aquatic Feed
Bag Material :
PP Woven / PE / Paper
Packing Range :
25Kg to 50Kg
Bag Size :
According to customer
Description

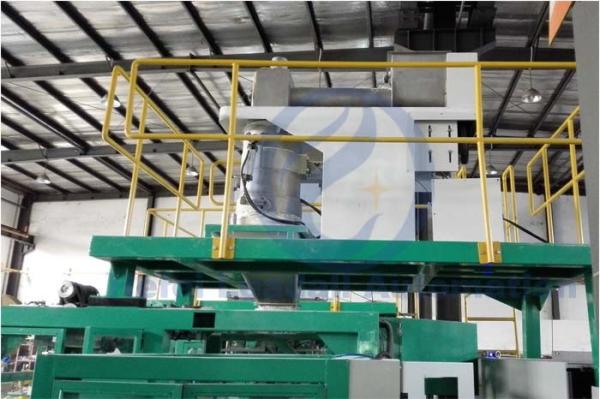

Aquatic Feed Big Bag Packing Machine For 25Kg PP Woven Bag With Label

Description:

LA-25K auto powder bag-feeding packing machine (hereinafter to be referred as LA-25K) is developed specifically for powder products which made in agro and food industry. This machine can realize automatic bag-feeding, products filling, bag air suck ,bag belt conveyor and outside bag sewing, etc.

Including:

This unit consists of one set elevator, one set automatic weighing machine, one set bag-feeding packing machine, one set automatic sewing machine and one set conveyor.

Control system: PLC and touch screen

Function:

product lifting, measuring, filling, bag-opening, sealing and output.

Scope of application:
Chemical industry, feed,grain etc. fields ,large bag packaging for powder material.
Function Feature:
1. Automatic weighing,automatic bag giving,automatic sewing ,do without manual operation.
2. Touch screen controling,human-computer interface is well.

Products to be packed:

1) Powder name: powder
2) Bulk Density: 0.24 -0.40 kg/cubic meter
3) packing size: 25-50kg per bag
4) powder size: <110 micrometer
5) characteristic: powder very fine and dusty and fluffy.
6) Bag Size: woven bag - 23" x 37"


Specification Requirement:


1. Automatic bag feeding;

2. Automatic weighing /filling

3. The bag clamping system will be down step by step when powder filling, to decrease the dust happing.

4. Automatic bag sealing device for PE /laminated bag;

Technical Parameters:

Packaging bag premade PE/Laminated bag
Packing size (500~1000mm)×(300~600mm)[length×width]
Packing capacity 25-50kg
Packing speed 2~4bag/min
Air source/compressed air 0.5~0.7Mpa
Power 5.0KW 380V±10%, 50HZ
Appearance size 5860×2500×4140mm(L×W×H)
material non-sticky chemical powdery material

Relevant supporting equipment:

1. VFFS Packaging Machine line

2. Multihead weigher, Linear weigher, Auger filler, Counting machine

3. Automatic vacuum packing machine line

4. Automatic secondary packing machine(put small bags into large bags)

5. 5-50kg Automatic bag feeding packing machine

6. Check weigher, Metal detector, Conveyor, Elevator

7. Automatic carton case packing line

8. Robot Palletizing Line
