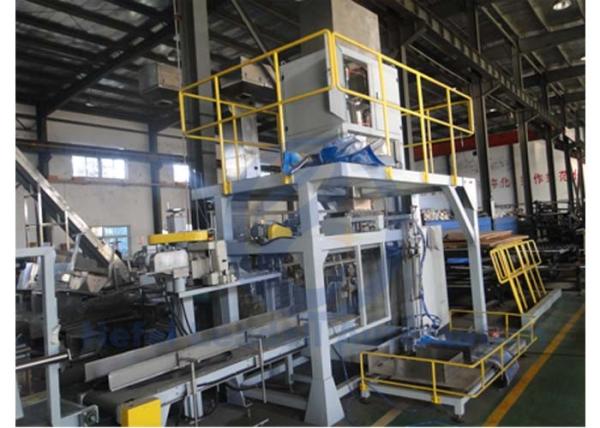

Feed Pellet Automatic Big Bag Packing Machine For 25 KG PP Woven Bags

Equipment Profile:

This unit has the functions of automatic weighing, automatic bag feeding, automatic filling, automatic pack delivery, automatic sealing, etc. It can work in linkage with the equipment for various types of granular, flaky materials to achieve unmanned production operation of large-sized packaging.

This unit is specially suitable for granular material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-50kg, the maximum speed can reach 8-12bags/min. High efficiency, advanced design suitable for various requirements.

Below find the main qualities that distinguish it from the rest:
• Possibility to work flat bags and bags with lateral gusset from 10 to 25kg.
• Perfect sealing for powders thanks to the particular hermetically sealed filling mouth.
• Bags "step" movement, which can be treated with various devices at every stop.
• Easy cleaning of parts in contact and prevention of “cross-contamination”.
• Product compacting devices to eliminate excess air.

Equipment Application:

Grain, Rice, Spices, Other Foods, Feed Pettet, Cattle Feed, Bird Seed, Feed Ingredients, Fish Feed, Sweet Feed, Other Feed, Limestone, Litter, Ice-Melting Salt, Other Minerals, Alfalfa, Corn Seed, Grass Seed, Sorghum Seed, Soybean Seed, Sunflower Seed, Other Seed and Crops, Fertilizers, Plastic Pellets, Other Chemicals.

Equipment Functions:

● Individual bag pick-up and opening

● Empty bag (with or without gusset) transfer to filling mouth

● Bag hermetic fastening on filling mouth

● Bag filling (product discharge from scale or dozer) and vibrating

● Closing system: Thermo-sealing and/or multiple sewing, fold and glued etc.

Configuration Explanation:

1) The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.

2) Pneumatic part adopts SMC/Airtac solenoid, oil- water separator, and cylinder.

3) Vacuum system adopts SMC/Airtac solenoid, filter, and digital vacuum pressure switch.

4) The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.

Mechanism Component:

1) Automatic picking-up bag system: Automatically pick up the prepared bag.

2) Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.

3) Hugging bag and conveying mechanism: Hugging bag and conveying bag.

4) Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)

5) Electrical control part: Completely control the whole packaging unit.

6) Automatic weighing machine: Linear weighing machine

7) Conveyor: Convey material automatically

Technical Parameters:
