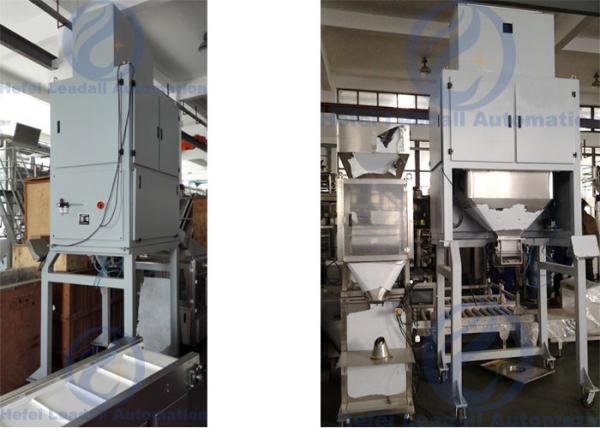

High Precision Indica Bagging Machine For 5kg To 50kg PE Or PP Woven Bags
High Precision Indica Bagging Machine For 5kg To 50kg PE Or PP Woven Bags
High Precision Indica Bagging Machine For 5kg To 50kg PE Or PP Woven Bags
High Precision Indica Bagging Machine For 5kg To 50kg PE Or PP Woven Bags
Specifications
Brand Name :
Hefei Leadall
Model Number :
LA-A
Certification :
CE ISO
Place of Origin :
Hefei , China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, MoneyGram, Western Union
Supply Ability :
50 Sets Per Month
Delivery Time :
20 to 30 work days
Packaging Details :
Standard Wooden Case for Export
Product Material :
Indica Rice
Packaging Material :
PP Woven Bag , PE Bag
Filling Range :
100g to 50kg per bag
Capacity :
≥300 bags/H
Description

Indica Rice Bag Packing Machine For 5Kg To 50Kg PE Or PP Woven Bags

Application:

1. Rice weighing packaging machine is suitable for packaging granular materials with good fluidity, such as wheat, corn, rice, urea, feed and so on.

2. This machine adopts the combination of self-flowing feeding and vibration feeding, and use electronic scale weighing, which overcomes the shortcomings caused by the change of the specific gravity of the material.

3. This machine is not limited by the packaging container, suitable for occasions where the material variety and packaging specifications change frequently.

Equipment consists of:


1. Automatic filling system
2. Automatic weighing balance

3. Feed bag by hand
4. Automatic belt conveyor
5. Automatic sewing machine
6. Electric control cabinet


Characteristics:


1. Automatic weighing, filling and packing for granular material;
2. Precise weighing and bagging;
3. All automatic control of fast and slow intake, weighing and letting down of the bag;
4. All the working parameters are input on the mimic panel;
5. Auto minus of the weight and auto zero resetting:
6. The imported intellective weighing instrument can display the gross weight and net weight at the same time;
7. Automatic test and correct the weighing errors;
8. It can be connected to the computer for rational management of production

Series Features:

1. New controller with high precision,working stable, can display the total weight,number of package, easy operation.

2. The adaptive software,having the function of automatic control parameters setting, automatic drop revising,over - weight warning and auto-diagnosis.

3. Wide packing range, high precision, it can match well with conveyor and sewing machine.

4. Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.

5. The main material body is carbon steel, with painted plastic. And material contact part is stainless iron , corrosion resistance, long service life.

6. Communication interface can be offered if need, realization of data communication with PC.

Technical Parameters:

LA-A Series Electronic Quantitative Scale
Model LA-1A LA-5A LA-25A LA-50A LA-100A
Weighing range 0.1-1kg 1-5kg 2.5-25kg 5-50kg 10-100kg
Weighing accuracy 0.2%F.S 0.2%F.S 0.1%F.S 0.1%F.S 0.1%F.S
Graduation value 2g 5g 10g 20g 20g
Filling speed 300-500 bags/H 300-500 bags/H 300-420 bags/H ≥300 bags/H ≥300 bags/H
Power source AC220V 50Hz 0.4-0.8MPa
Overall dimensions(mm) 1725X620X710 1890X620X710 2450X650X715 2560X650X715 2960X730X775
Action mode Pneumatic device
Accuracy grade x(0.2) x(0.1)

Relevant supporting equipment:

1. VFFS Packaging Machine line

2. Multihead weigher, Linear weigher, Auger filler, Counting machine

3. Automatic vacuum packing machine line

4. Automatic secondary packing machine(put small bags into large bags)

5. 5-50kg Automatic bag feeding packing machine

6. Check weigher, Metal detector, Conveyor, Elevator

7. Automatic carton case packing line

8. Robot Palletizing Line
