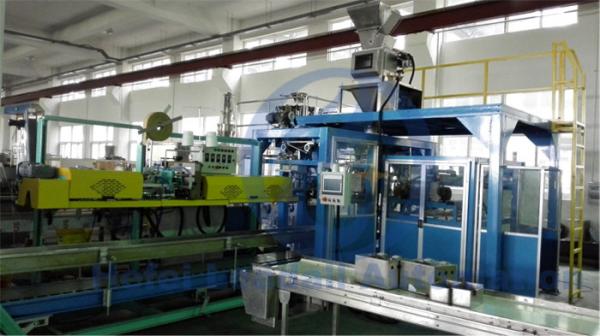

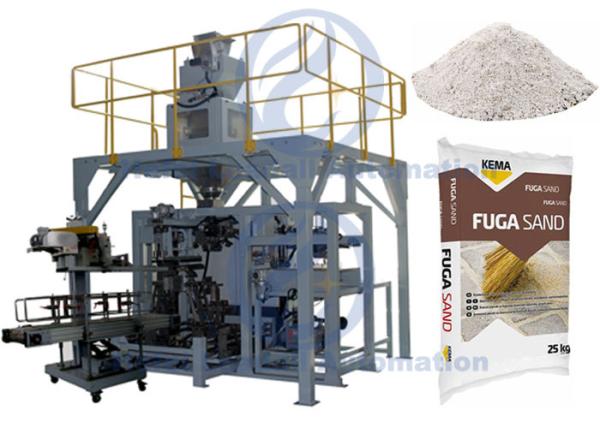

Quartz Sand Automatic Big Bag Packing Machine For 25 KG PP Woven Or PE Bags

Equipment Profile:

This unit has the functions of automatic weighing, automatic bag feeding, automatic filling, automatic pack delivery, automatic sealing, etc. It can work in linkage with the equipment for various types of granular, flaky materials to achieve unmanned production operation of large-sized packaging.

This unit is specially suitable for granular material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-50kg, the maximum speed can reach 6-14bags/min. High efficiency, advanced design suitable for various requirements.

Below find the main qualities that distinguish it from the rest:
• Possibility to work flat bags and bags with lateral gusset from 10 to 25kg.
• Perfect sealing for powders thanks to the particular hermetically sealed filling mouth.
• Bags "step" movement, which can be treated with various devices at every stop.
• Easy cleaning of parts in contact and prevention of “cross-contamination”.
• Product compacting devices to eliminate excess air.

Equipment Features:

With accurate and reliable mechanical action instead of artificial bagging, high security, high automation, high production efficiency.

Double station bag supply, automatic alternative supply bag, which ensures the uninterrupted operation of the equipment is stable and reliable, and the maintenance is convenient.

Full computer touch screen control, man-machine interface, operation is simple and convenient, the replacement of the product is simple, fault display system, convenient and quick maintenance.

1) Work Stable

2) High Packing Capacity

3) Easy to operate

4) Easy to maintain

Configuration Explanation:

1) The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.

2) Pneumatic part adopts SMC/Airtac solenoid, oil- water separator, and cylinder.

3) Vacuum system adopts SMC/Airtac solenoid, filter, and digital vacuum pressure switch.

4) The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.

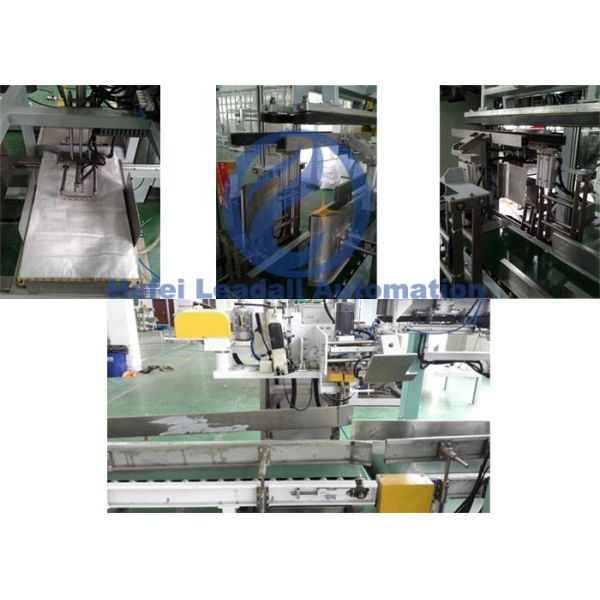

Mechanism Component:

1) Automatic picking-up bag system: Automatically pick up the prepared bag.

2) Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.

3) Hugging bag and conveying mechanism: Hugging bag and conveying bag.

4) Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)

5) Electrical control part: Completely control the whole packaging unit.

6) Automatic weighing machine: Linear weighing machine

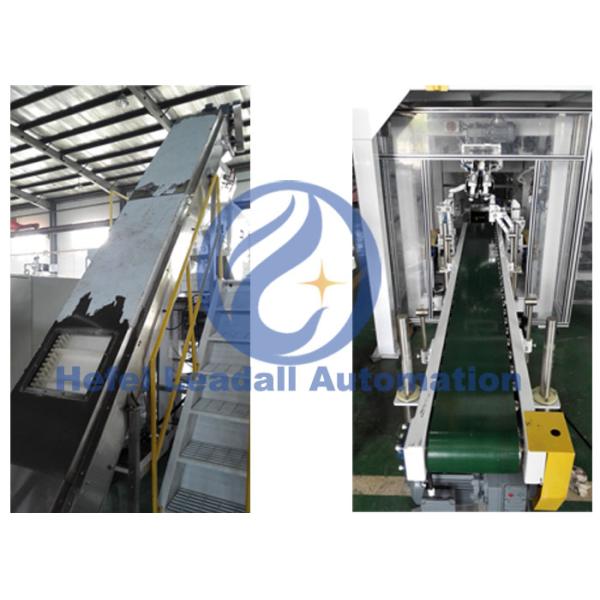

7) Conveyor: Convey material automatically

Technical Parameters:

Relevant supporting equipment:

1. VFFS Packaging Machine line

2. Multihead weigher, Linear weigher, Auger filler, Counting machine

3. Automatic vacuum packing machine line

4. Automatic secondary packing machine(put small bags into large bags)

5. 5-50kg Automatic bag feeding packing machine

6. Check weigher, Metal detector, Conveyor, Elevator

7. Automatic carton case packing line

8. Robot Palletizing Line

Quartz Sand Profile:

Field of use:

Flame-dried quartz sand for grouting of paving units, floor tiles, washed boards etc.. Due to the excellent flowability and correct granulation composition, it assures easy and quality grouting.

Features:

• Nature Quartz Sand

• 100 % washed, without organic impurities

• Sieved

• Correct grain – size distribution

• Remarkably mechanical properties
