Food Granule Multi Head Weighing Machine High Precision Low Power Consumption
Food Granule Multi Head Weighing Machine High Precision Low Power Consumption
Food Granule Multi Head Weighing Machine High Precision Low Power Consumption
Food Granule Multi Head Weighing Machine High Precision Low Power Consumption
Specifications
Brand Name :
Hefei Leadall
Model Number :
LA-2.5B-ZD-DJ
Certification :
CE ISO
Place of Origin :
Hefei, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40 Sets Per Month
Delivery Time :
10 to 30 work days
Packaging Details :
Standard Wooden Cases for Export
Weighing Range :
100-5000g
Weighing Accuracy :
≤±0.1%
Max.Weighing Speed :
25-35 bags/min
Hopper Capacity :
2.5L
Power Supply :
AC220V/50HZ 1.0KW
Machine size :
1000*640*1400mm
Machine weight :
150kg
Usage :
bags, bottles, can
Description

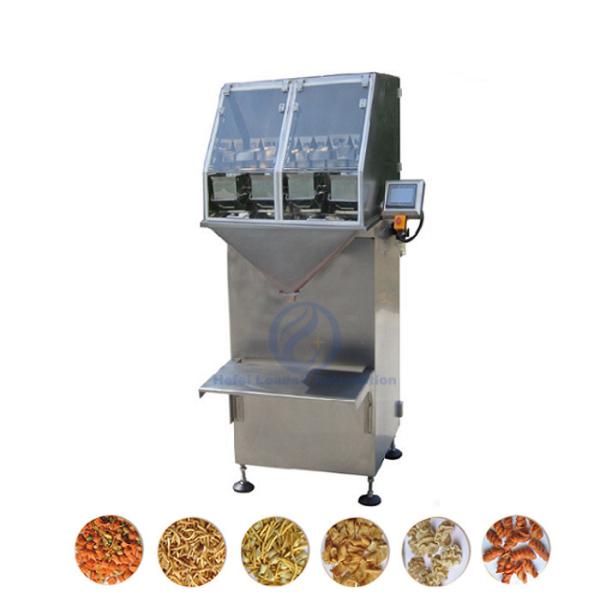

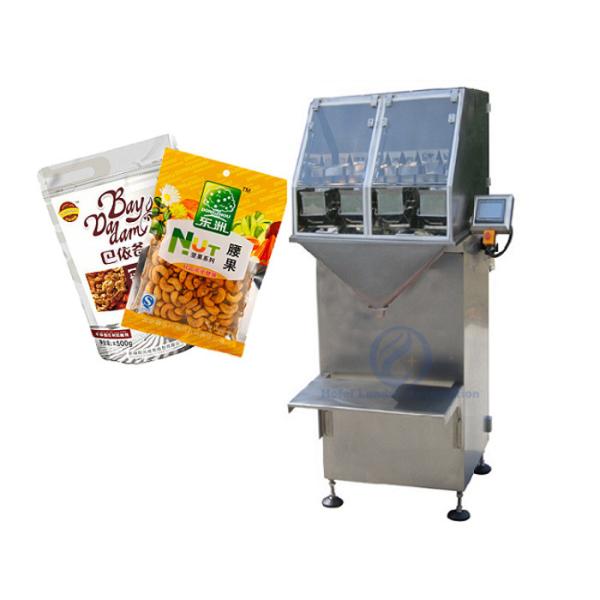

Linear Weigher / Multi Head Weighing Machine With Four Hoppers For 100g To 5000g Food Granule

General description:

This series semi-automatic packing machine mainly consist of feeding equipment, weighing hoppers and electronic control system. It can complete feeding, weighing and packing work independently. Suitable for variety packaging containers(bags, cans, bottles, etc.) with various size, the packing weight varies from 100g to 5000g by changing amounts of its hopper.

Application:

Suitable for many kinds of material packaging, such as rice, nuts, tea, essence spice, corns, gourmet powder, sugar, coffee beans, sunflower seeds, chemicals, wash powder, and solid drinks, and so on.

Main Features:

High precision digital HBM load cell.

Color touch screen (Mouse, SD card and memory card are compatible).

Multilanguage choice (Translation is needed for some specific language).

Different authority management.

1 Original program can be restored
2 Easy cleaning and maintenance with clean function, all hoppers can stay open
3 Piece counting function
4 IP65 certificate
5 Unqualified weight reject
6 Step motor angle can be set according to different product
7 99 program can be preset
8 Stagger dump prevents products blockage

Special Features:

Weighing mix different products at one discharge

Parameters can be freely adjusted during running condition

New generation design, each actuator,boards can exchange with each other.

Self-diagnose function on the electronic boards

1 Modular electronic system makes function expanding and maintenance easier and at lowest cost
2 Professional A/D card with high accuracy and stability. Interchange is available
3 HMI program with different authority management more user-friendly
4 HMI program can be upgraded by U-disk
5 PLC control system applied in the weigher and it makes machine more stable and low fault rate. Makes machine more stable and low fault rate.Funtions expanding more easier
6 Application software can be upgraded by memory card
7 Remote control is available

Technical Parameters:

Model LA-2.5B-ZD-DJ LA-5.5B-ZD-DJ LA-13B-ZD-DJ
Hopper volume 2.5L 5.5L 13L
Packing Weight 100g-1000g 250g-2500g 500g-5000g
Packing accuracy ≤±0.1% ≤±0.1% ≤±0.1%
Filling speed 25-35 bags/min 22-30 bags/min 15-25bags/min
Power supply AC220V/50HZ 1.0KW
Machine weight 150kg 160kg 180kg
Overall dimension 1000*640*1400mm 1000*640*1400mm 1000*690*1530mm

Relevant supporting equipment:

1 VFFS Packaging Machine line
2 Multihead weigher, Linear weigher, Auger filler, Counting machine
3 Automatic vacuum packing machine line
4 Automatic secondary packing machine(put small bags into large bags)
5 5-50kg Automatic bag feeding packing machine
6 Check weigher, Metal detector, Conveyor, Elevator
7 Automatic carton case packing line
8 Robot Palletizing Line

Normally we have some questions to customers:

1 What is your packing product?
2 How many grams per bag?
3 What is your bag size(the width and length)?
4 What is voltage and Hertz in your local?
5 If you want to design the special packing machine, we can manufacture the packing machine as your requirements.

Machine Details:

Food Granule Multi Head Weighing Machine High Precision Low Power Consumption

Food Granule Multi Head Weighing Machine High Precision Low Power Consumption

Food Granule Multi Head Weighing Machine High Precision Low Power Consumption
