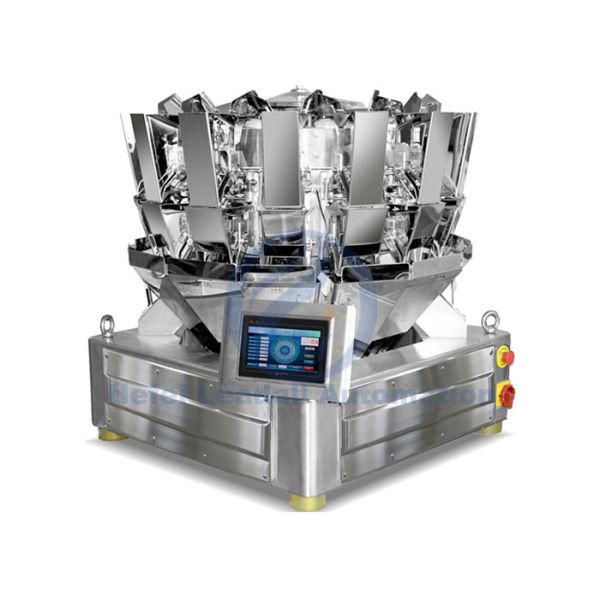

20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine
20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine
20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine
20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine
20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine
20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine
Specifications
Brand Name :
Hefei Leadall
Model Number :
LA-M10
Certification :
CE ISO
Place of Origin :
Hefei, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
40 Sets Per Month
Delivery Time :
10 to 30 work days
Packaging Details :
Standard Wooden Cases for Export
Weighing Range :
20g to 1kg
Weighing Accuracy :
0.1-1.5g
Max.Weighing Speed :
80 bags/min
Hopper Capacity :
1.5L
Power Supply :
AC220V±10% 50HZ/60HZ 1.5KW
Machine size :
1980L*720W*1080H
Description

Multi Head Weighing Machine / Auto Weighing Machine For 20g To 1kg Granule

Application:

It is suitable for weighing of granule, slice, roll or irregular shape materials such as cereal, pasta, candy, seed, chips, coffee bean, nut, puffy food, biscuit, chocolate, pet food, frozen foods, etc. It is also suitable for non-food industry such as screws, bolts and plastic components.

Main Features:

Amplitude can be adjusted freely and individually in running status, more friendly HMI.

Multi-language operating interface.

Mouse, USB and SD card compatible with touch screen.

Stagger dump prevents products blockage.

1 Original program can be restored
2 Easy cleaning and maintenance with clean function, all hoppers can stay open
3 Piece counting function
4 IP65 certificate
5 Unqualified weight reject
6 Step motor angle can be set according to different product
7 99 program can be preset
8 Stagger dump prevents products blockage

Special Features:

1 Modular electronic system makes function expanding and maintenance easier and at lowest cost
2 Professional A/D card with high accuracy and stability. Interchange is available
3 HMI program with different authority management more user-friendly
4 HMI program can be upgraded by U-disk
5 PLC control system applied in the weigher and it makes machine more stable and low fault rate. Makes machine more stable and low fault rate.Funtions expanding more easier
6 Application software can be upgraded by memory card
7 Remote control is available

Technical Parameters:

Model LA-M10
Weighing range 20-1000g
Single bag average error 0.2-0.5g
Weighing accuracy range 0.1-1.5g
Maximum weighing speed 80 bags/min
Hopper capaity 1.5L
Driven mode Stepper motor
Product preset number 99
Machine size(mm) 1980L*720W*1080H
Machine weight 500KG

Relevant supporting equipment:

1 VFFS Packaging Machine line
2 Multihead weigher, Linear weigher, Auger filler, Counting machine
3 Automatic vacuum packing machine line
4 Automatic secondary packing machine(put small bags into large bags)
5 5-50kg Automatic bag feeding packing machine
6 Check weigher, Metal detector, Conveyor, Elevator
7 Automatic carton case packing line
8 Robot Palletizing Line

Normally we have some questions to customers:

1 What is your packing product?
2 How many grams per bag?
3 What is your bag size(the width and length)?
4 What is voltage and Hertz in your local?
5 If you want to design the special packing machine, we can manufacture the packing machine as your requirements.

Machine Details:

20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine

20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine

20g To 1kg Granule Multi Head Weighing Machine / Auto Weighing Machine
