Bulk Bag Discharger Machine / Unloading Machine For Big Bag Unloading

Brief description:

Bulk/big/ton bag unloader used in chemical industry, plastics, rubber, pharmaceutical, food and other industries of powder and granular material in the ton bag unpacking discharging operation, such as a large bag (ton bag) plastic resin, carbon black powder and granular materials and food additives and other dry powder and granular materials unpacking and discharging.

Ton-bag breaker is mainly applied to the powder material of 500KG-2500KG bag's unloading. It is widely used in industries of chemicals, plastics, sewage treatment, infrastructure and other industries. Ton- bag breaker charter not only effectively protect the production environment, reduce the intensity of workers, improve production efficiency, but also solve the problems of the material is easy block due to moisture absorption and the problem of material is difficult to be discharged.

Application:

unloading machine can be widely used in magnetic materials industry, food processing industry, plastic processing industry, lithium power industry, coatings industry, chemical industry and pharmaceutical industry etc.

Features:

1. Simple open- bag structure and easy for operation

2. Tapping device can ensure the material smoothly feed into the next process from the sack

3. Crusher breaks the block during splitting the bag to ensure the next processing work smoothly.

4. Fully automated operation that increase productivity and reduce labor intensity;

5. Sealed split bag that prevent dust emissions, no heat generation, improve the working environment, reduce production costs;

6. Cutting the bag, beating, crushing, magnetic separation integrated design makes structure compact and operation convenient.

7. After unpacking the bag, the material can be conveyed to proper position by the chains conveyor, screw conveyors, pneumatic conveying systems or other specialized conveying equipment.

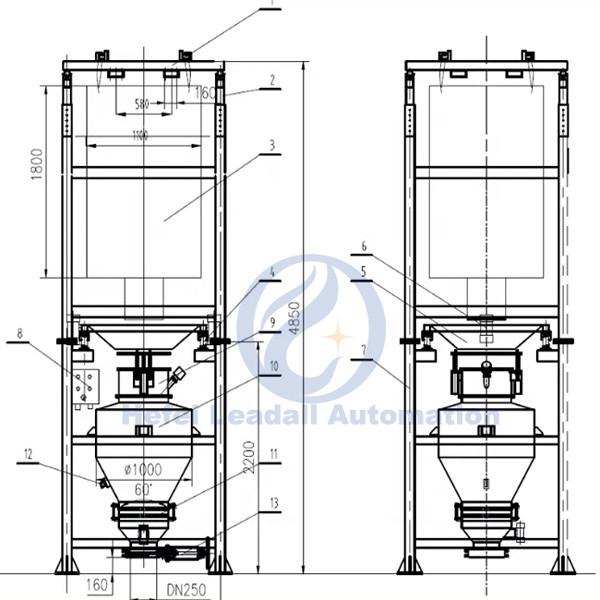

8. This big bag unloader consists of a steel frame complete with a material discharge hopper, hoist, iris valve and an upper mobile cross bar for lifting of the filled up bag by hoist into the Discharger.

Construction material: Carbon steel, 304, 304L / 316L stainless steel.

9. Available in different sizes, Versions available:

With height adjustment for loading by forklift truck

For overhead crane loading

With monorail for installation of a hoist ο Massage paddles

Hammer Arms Mid Bag Agitators

Weighting equipment.

Working principle:

By forklift or electric hoist to enhance the ton bags to the equipment feed port, manually or automatically open the discharging mouth of ton bags, open the flow valve and supplemented by vibration device to promote powder or granular material(in the ton bags) to rely on gravity fall into the hopper to complete unpacking discharging work.

Technical parameters:

We are specialized in manufacturing customized machines. Just tell us all your requirements, such as products, production capacity, dimension requirements, etc. and then we will work out most suitable solution for your confirmation.

Relevant supporting equipment:

Normally we have some questions to customers:

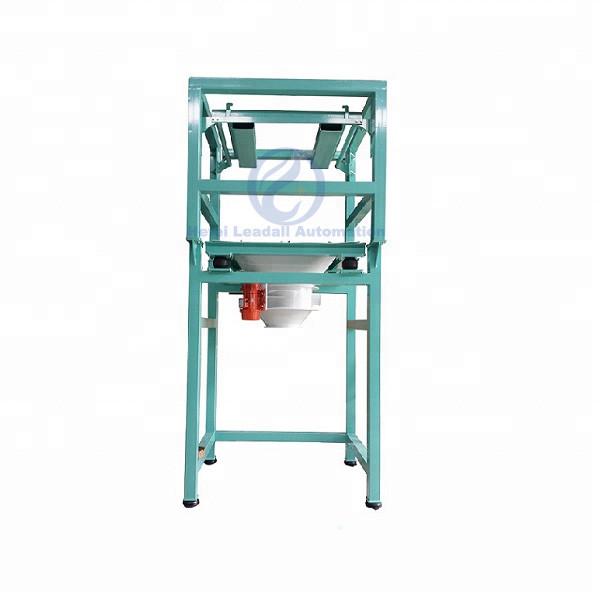

Equipment Photos:
