2700rpm Auto Bag Closer Sewing Machine Photoelectric Switch For Woven / Paper Bag
2700rpm Auto Bag Closer Sewing Machine Photoelectric Switch For Woven / Paper Bag
2700rpm Auto Bag Closer Sewing Machine Photoelectric Switch For Woven / Paper Bag
2700rpm Auto Bag Closer Sewing Machine Photoelectric Switch For Woven / Paper Bag
Specifications
Brand Name :
Hefei Leadall
Model Number :
GK35-6AW
Certification :
CE ISO
Place of Origin :
Hefei , China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
20 to 30 work days
Packaging Details :
Standard Wooden Case for Export
Suture head height :
720-1220mm（From the ground to the needle）
Brake motor :
4P,3Ph，0.75kw/0.4kw
Start-stop :
Photoelectric switch
Suture head :
GK35-6AW
Top speed :
2700rpm
stitch width :
7-10.5mm
Description

Auto Bag Sealer / Bag Closing Machine With Paper Slip Sewing For Woven Bag / Paper Bag

Applications:

pp woven bags, composite bags, sacks, paper bags, etc.


Applicable industry:

feed, flour, fertilizer, sugar, food, chemical and port terminals.

It is suitable for closing filled bags and sacks made of cotton, jute, plastic and paper etc. In such industries as food chemical industry and port etc. It has the features such as semi automatic mechanical thread chain cutting, high sewing speed,low noise, easy mintenance and long operating lift etc.

Description:

A2-PW/GK35-6AW/GP4900 automatic bag folding and sewing machine is suitable for automatic folding and sewing of kraft paper bags or plastic woven bags. It is widely used in grain, feed and chemical industries. The automatic folding seam machine adopts photoelectric control.

Technical Parameter:

Suture head height 720-1220mm(From the ground to the needle)
Brake motor 4P,3Ph,0.75kw/0.4kw(Depending on the conveying speed)
Start-stop Photoelectric switch
Suture head GK35-6AW
Top speed 2700rpm
stitch width 7-10.5mm(Standard setting 10mm)
stitch type Single stitch, double stitch chain stitch (single stitch needs customization)
Cutter type Cylinder driven cutter
pressure 0.4MP/cm2
Air consumption 3.5NL/min
lubrication system Automatic Oil Bath System (Recommended Lubricant: Shell Durex Oil No. 32)
Oil injection quantity 1740cc
Machine pulley diameter 100mm(Variable speed pulleys need to be ordered)
Needle type DR-H30#26
suture Synthetic fibers or cotton yarns,20/6,20/9

Main features:

One-lined closure of paper bag

 Trimming, stitching, heat-sealing(linner PE), and heatseal-tape sealing can be done all at on-lined and automatic process.

Simple adjustment and high performance

 Easy to install and simple to maintain. Efficient and automatic to operate. Advanced technique embodled in its function.

Eight standard models for a wider application

 Wider choice to suit bag specifications and products. Eight standard models plus optional items are available.

Easy control of heater bar temperature

 Easy to adjust temperature and pressure of heater bar, so that no extra time required when to change bag thickness.

High level of sealed and stitched closure

 Superior at a sift, dust, and insect proof. Products filled in bag can be completely protected.

Relevant supporting equipment:

1 VFFS Packaging Machine line
2 Multihead weigher, Linear weigher, Auger filler, Counting machine
3 Automatic vacuum packing machine line
4 Automatic secondary packing machine(put small bags into large bags)
5 5-50kg Automatic bag feeding packing machine
6 Check weigher, Metal detector, Conveyor, Elevator
7 Automatic carton case packing line
8 Robot Palletizing Line

Normally we have some questions to customers:

1 What is your packing product?
2 How many grams per bag?
3 What is your bag size(the width and length)?
4 What is voltage and Hertz in your local?
5 If you want to design the special packing machine, we can manufacture the packing machine as your requirements.

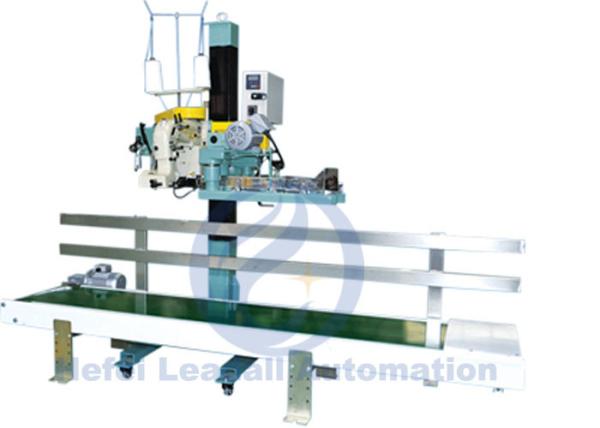

Machine detailed photos:

2700rpm Auto Bag Closer Sewing Machine Photoelectric Switch For Woven / Paper Bag

2700rpm Auto Bag Closer Sewing Machine Photoelectric Switch For Woven / Paper Bag
