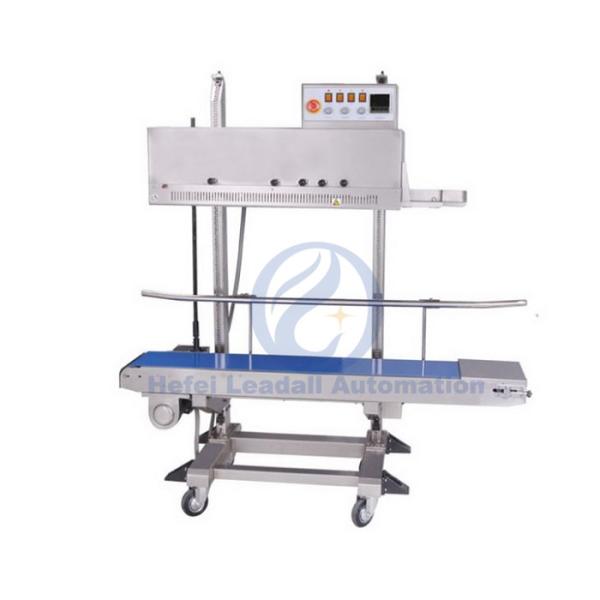

10mm Sealing Width Auto Bag Sealer 1450×680×1480mm Durable Construction
10mm Sealing Width Auto Bag Sealer 1450×680×1480mm Durable Construction
10mm Sealing Width Auto Bag Sealer 1450×680×1480mm Durable Construction
10mm Sealing Width Auto Bag Sealer 1450×680×1480mm Durable Construction
Specifications
Brand Name :
Hefei Leadall
Model Number :
LA-1120LD
Certification :
CE ISO
Place of Origin :
Hefei , China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
20 to 30 work days
Packaging Details :
Standard Wooden Case for Export
Sealing speed :
0-10m/min
Sealing width :
10mm
Temperature range :
0-300℃
Motor Power :
245W
Printing Heating Power :
40×2(W)
Printing Type :
Solid-Ink Roller
External Dimensions :
1450×680×1480mm
Net Weight :
136kg
Description

1kg To 5kg Auto Bag Sealer / Heat Sealing Machine For Plastic Bag


Applicable industry:

feed, flour, fertilizer, sugar, food, chemical and port terminals.

It is suitable for closing filled bags and sacks made of cotton, jute, plastic and paper etc. In such industries as food chemical industry and port etc. It has the features such as semi automatic mechanical thread chain cutting, high sewing speed,low noise, easy mintenance and long operating lift etc.

Description:

LA-1120LD is designed to quickly and efficiently seal any thermoplastic material including PE, PPE, stand up pouches, gusseted bags, and moisture barrier bags.

LA-1120LD is designed to quickly and efficiently seal any thermoplastic material including PE, PPE, stand up pouches, gusseted bags, and moisture barrier bags.This sealer can also be used in a wide array of fields such as: food, medical, and cosmetics industries. LA-1120LD is our most versatile band sealing capable of sealing bag heights of 4" - 27" and up to a single load of 11-lbs.

Advantage:

1) Adjustable height of both sealing head and conveyor belt providing maximum capacity of bag sizes

2) Durable stainless steel construction

3) Easy to operate - minimal operator training

4) Fast warm up time

5) Ideal for medium duty and heavy duty applications

6) Vertical configuration makes this suitable for any product including liquids

7) Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality

8) Motorized rubber conveyor for speed control

9) Knurled pressure wheels with variable pressure adjustment

10) Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks

11) Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted)

12) Dry ink coding allows for printing at the seal line

13) Unit feeds from right to left (Optional:left to right feed available)

14) Equipped with an emergency stop button

Technical Parameter:

Voltage (V/Hz) AC 220/50 110/60
Motor Power (W) 245
Sealing Power (W) 300×2
Printing Heating Power(W) 40×2
Speed(m/min) 0-10
Seal Width(mm) 10
Temperature Range(℃) 0-300
Printing Type Solid-Ink Roller
Distance from Sealing Center to Conveyor (mm) 100-700
Conveyor Size(L×W )(mm) 1400×250
Max. Conveyor Load for Single Bag(kg) 5
Overall Conveyor Load(kg) 15
External Dimensions(L×W×H) (mm) 1450×680×1480
Net Weight (kg) 136


Relevant supporting equipment:

1 VFFS Packaging Machine line
2 Multihead weigher, Linear weigher, Auger filler, Counting machine
3 Automatic vacuum packing machine line
4 Automatic secondary packing machine(put small bags into large bags)
5 5-50kg Automatic bag feeding packing machine
6 Check weigher, Metal detector, Conveyor, Elevator
7 Automatic carton case packing line
8 Robot Palletizing Line

Normally we have some questions to customers:

1 What is your packing product?
2 How many grams per bag?
3 What is your bag size(the width and length)?
4 What is voltage and Hertz in your local?
5 If you want to design the special packing machine, we can manufacture the packing machine as your requirements.

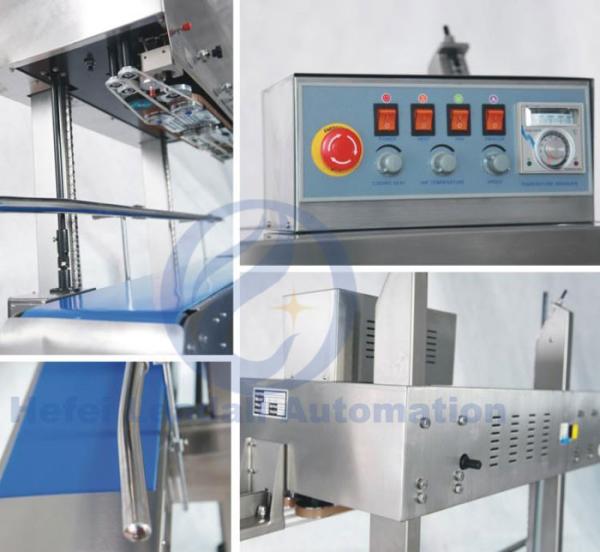

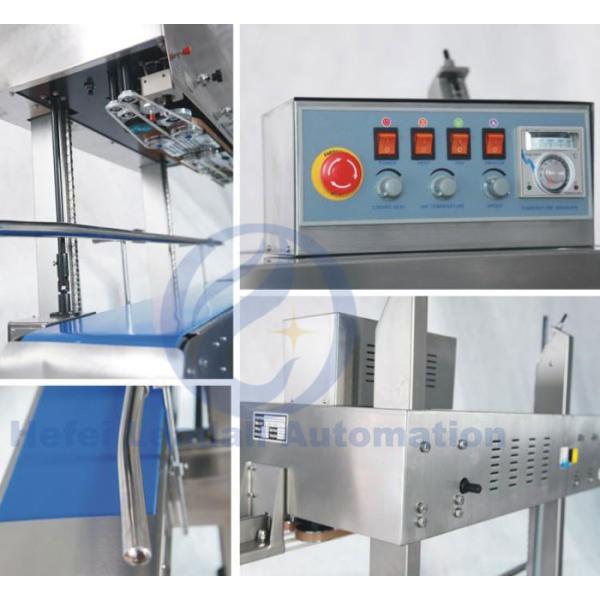

Machine detailed photos:

10mm Sealing Width Auto Bag Sealer 1450×680×1480mm Durable Construction

10mm Sealing Width Auto Bag Sealer 1450×680×1480mm Durable Construction

10mm Sealing Width Auto Bag Sealer 1450×680×1480mm Durable Construction
