automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
Specifications
Brand Name :
Hefei Leadall
Model Number :
VFS5000
Certification :
CE ISO9001
Place of Origin :
Hefei City, China
MOQ :
1 Set
Price :
USD 15,000.00 to 20,000.00/Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets Per Month
Delivery Time :
30 to 40 work days
Packaging Details :
Standard Wooden Cases for Export
Automatic Type :
Full automatic
Bag Type :
Pillow bag , Gusset bag , Box bag
Function :
bag making, coding, filling, sealing, counting
Production Capacity :
50bag/min , 30bag/min
Description

vertical roll film powder packing machine for wheat flour / bread flour / cake flour / high flour / gluten flour

Vertical Packaging Machine
Model
VFS-5000D
VFS-5000B
VFS-7300B
Packaging size L×W(mm)
(50~280)×(70~180)
(50~340)×(80~250)
(50~460)×(80~350)
Capacity(pouch/min)
30~80
20~70
20~50
Pouch material
laminated film, aluminum foil, aluminum-plated film etc.
Pouch type
Pillow bag, gusset bag, punching bag, quad seal bag, valve bag
Reel inner diameter(mm)
Φ75
Φ75
Φ75
Max reel outer diameter(mm)
Φ400
Φ450
Φ500
Power supply
380V, 50~60Hz, 3kw
Compressed air
0.6MPa 350L/min
Dimension L×W×H(mm)
1470×988×1400
1800×1220×1680
1854×1440×1930
Machine material (optional)
carton steel, stainless steel 304/316, telfon
Screw Elevator
Model
SE-S2-2K
SE-S2-3K
SE-S2-5K
SE-S2-7K
SE-S2-8K
lifting capacity
2m3/h
3m3/h
5 m3/h
7 m3/h
8 m3/h
Diameter of tunnel
φ102
φ114
φ141
φ159
Φ168
Total power
0.58KW
0.78W
1.53KW
2.23KW
2.23KW
Thickness of Hopper
1.5mm
1.5mm
1.5mm
1.5mm
1.5mm
Thickness of Pipe
2.0mm
2.0mm
2.0mm
3.0mm
3.0mm
Outer dia.of Screw
Φ88mm
Φ100mm
Φ126mm
Φ141mm
Φ150mm
Thickness of Pitch
2mm
2mm
2.5mm
2.5mm
2.5mm
Dia.of Axis
Φ32mm
Φ32mm
Φ42mm
Φ48mm
Φ42mm
Thickness of Axis
3mm
3mm
3mm
4mm
4mm
Auger Filler
Model
AF-LL-25L
AF-LL-50L
AF-LL-75L
Hopper volume(L)
25L
50L
75L
Packaging weight(g)
1~200
10~2000
10~5000
Packaging accuracy(g)
≤100,≤±2%;100~500,≤±1%;≥500,≤±0.5%
Capacity(time/min)
40~100
30~100
10~30
Power supply
3P AC208~415V 50/60Hz

Technical Features

---Vertical Packaging Machine---
* Integrates the functions such as bag-making, filling, sealing, printing, punching, and counting.
* Adopts servo motor for film pulling with automatic offset correction. Two types of driving motor.
* Off-the-shelf components ensure quick service response.
* No-tool changeover, user-friendly operation process.
* All the electrical components adopt local and foreign well-known brands with reliable performance.
* Two types of vertical sealing mechanism, i.e. center sealing type and platen press type.
* Robust, stainless steel frame.

--- Auger Lifter---
* motor driven type.
* good sealing environment.
* Tailor-made size.
* Stainless steel 304/316.

---Auger Filler---
* Stainless steel structure, convenient for cleaning.
* Servo motor and servo drive control the screw.
* PLC controls the system, touch screen, a user-friendly operation panel.
* Various product adjusted parameter formulas can be stored.
* Accessories can be replaced, adapting to various materials such as ultra-fine powders and tiny granule.
Optional Ancillary Machines
* Metal Detector
* Check Weigher
* Collecting Table
* Carton Machine

Product Details:

automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour

automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour

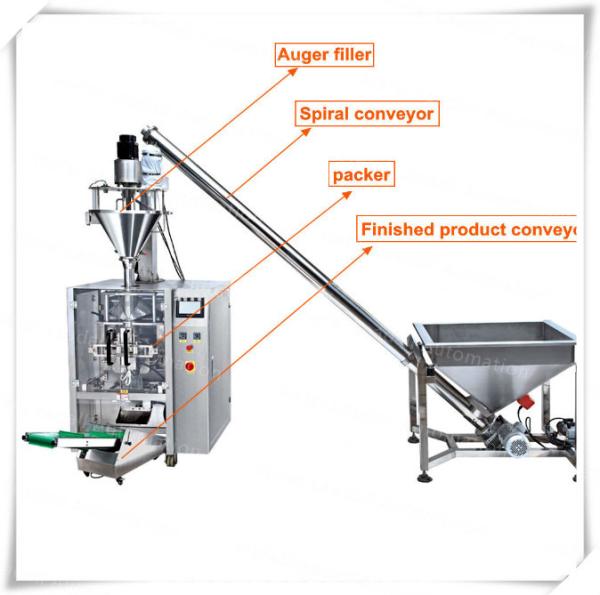

Screw elevator: driven by motor, hopper size tailor-made, it provides a good sealing environment, protects powder from pollution.

Auger filler: driven by the servomotor, it has a sensor to ensures the product level inside the hopper, and is very convenient to clean.

automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour

 automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
Film releasing part: air shaft fix the film tightly, at the same time the film releasing motor drive it to pull the film up smoothly, when the film runs out, the machine will send the alarm single. Printing and mark sensor: you can print production date/ batch number/ place of origin/ etc. Max. 4 lines character are acceptable, and you can choose the printer brand as well; mark sensor through capturing the color mark to tell machine the bag length.

automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour

automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour

Film correction mechanism: when misalignment of the back seal/deformation of the bag happen, the positioning sensor senses the change of the film position, a worker operating through the touch screen, and the mechanism will auto change the film position rightly.

Bag former: within the acceptable range, different ba sizes can be made by changing the bag former, and the replacement process is very simple.remark: quad seal bag can't share the same machine with pillow type bag.

automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour

automatic flour packing machine , powder packaging machine for wheat flour / bread flour / cake flour / gluten flour
Horizontal sealing mechanism: it has sealing cooler/ air deflating device, the surface pattern of the horizontal sealing mold can be changed according to bag design. Electric cabinet: different configuration level can be made basis on the customer demands.the electric and pneumatic control device are separately in the different cabinets.
