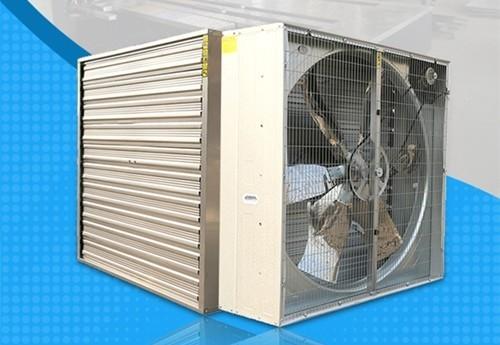

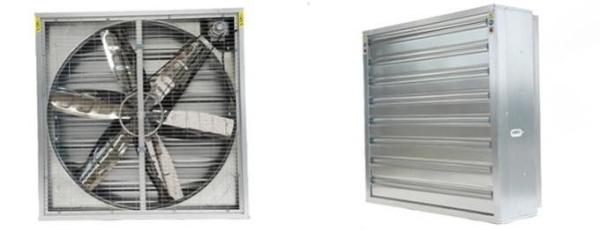

Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
Specifications
Brand Name :
Bagease
Model Number :
8613780964661
Certification :
ISO 9001:2015, FDA, HACCP, SGS, EN13432
Place of Origin :
MADE IN CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
T/T, Western Union
Supply Ability :
100,000 Sets per week
Delivery Time :
7 DAYS
Packaging Details :
Standard Export Packing for Automatic Chicken Feeding Pan System
Material :
Plastic
Design :
Anti-Waste
Weight :
2 kg
Unit Size :
Custimize 30X35X25 cm
Convenience :
Easy to Clean
Color :
Customized for feed pan or nipple drinker
Application :
Poultry Farming
Suitable For :
Chickens, Ducks, Geese
Usage :
Complete Automatic poultry feeding line
Shape :
Cylindrical
Features :
UV Resistant
Durability :
Weatherproof
Mounting Type :
Free Standing
Capacity :
20 kg
Core Components :
Motor, Pump, Engine
Key Selling Points :
New Feeding and Drinking line, Brand motor, Quality Products
Keyword :
Chicken feeders and drinkers poultry automatic
Applications :
Farms, Manufacturing Plant, Poultry farm feeding equipment
Advantage :
Automatic, labor-saving, economical
Operation :
Automatic feeding
Feeding type :
Floor feeding
Drink line :
Aluminum support with imported nipple cone
Warranty :
2 years
Packing :
30X35X25 CM Carton
Description

Hot Sell Heavy Duty Exhaust Fan For Industry/poultry/greenhouse Frp Poultry Ventilation System, paint booth exhaust fan, 8 inch exhaust fan 50HZ Poultry Ventilation System, exhaust fan for cooler, window mounted exhaust fan

Introduction:
1,Stainless steel fan blade, light weight, Bagplastic.com high intensity, good toughness GuoYu fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. The thickness of the stainless steel is 1.2mm. Surface finish BA grade. 2,Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, lower vibration. Blast- sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability. 3,Belts are Japanese Mitsubishi brand, ensure the long service life, maintenance free. 4,Both China famous motor and Siemens motor are available. Bagplastic.com Motor voltage and frequence can be customized.

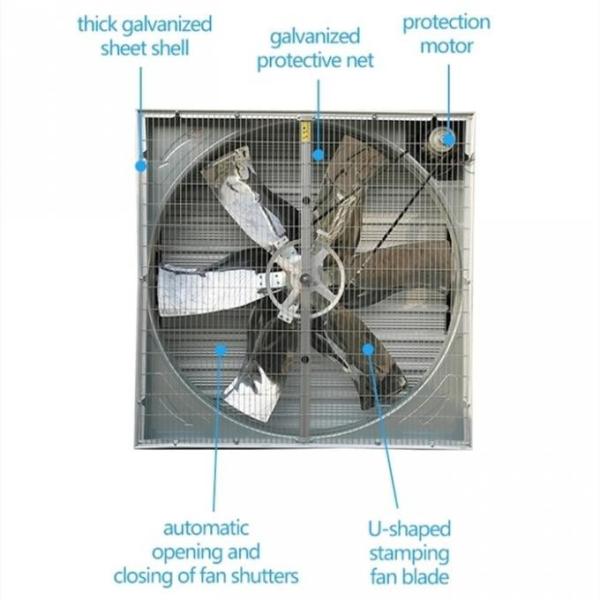

Main Accessories:
1,Centrifugal system: Bagplastic.com Centrifugal system open the shutter at completely 90 degree to ensure the lowest air resistance and biggest air volume. When close the sealing can efficiently block light and wind into the poultry farm house. Adopt high quality nylon PA66 to ensure the long service life.
2.V-belt: imported Japan Mitsuboshi or Sanlux belt, B type belt make sure use at least 5 years.
3,Motor: both China high quality motor and Siemens motor are available. Approved by CCC certificate. Protection level:IP55, insulation level: F class.
4,Fan blade: Fan blade is made of stainless steel by punching forming, no dust, attractive and durable. Special blade shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade. Bagplastic.com
5,Fan bearing: Bearing adopts imported double-row bearing with special waterproof disign, water can’t enter. High strength, lower noise, maintenance free and long service life.
blade
430 stainless steel, 1.2mm thickness
Linking parts
Aluminium alloy
Frame
Galvanized sheet
Spring
304 stainless steel
Shutter
Galvanized sheet
Fastener parts
Stainless steel
Belt
Japanese Mitsubishi brand
Bearing
Imported double-row bearing, waterproof
Motor
Both China famous brand and Siemens Motor are available
Blade support
Hot-dip galvanized
Voltage
Can be changed to different voltage like 220v, Single phase
Delivery time
As usual 5~7 days
Motor protection class
IP55
Payment term
T/T,
Fan belt pulley
High strength aluminum-magenisum alloy
Motor plate
Hexagon fixed nuts. Can suitable different size of motor.
Fan side
With plastic handle

Poultry Livestock House Farm Ventilation FAN

Product Application

DJF(b)-2 Series Hanging exhaust fan is widely used in the cow house or dairy farm for ventilation and cooling.

Technical Data:
Model
Drive
Blades Diameter(mm)
Blades Rotational Speed(rpm)
Motor Rotational Speed(rpm)
Air Flow (m³/h)
Input Power (W)
Noise (db)
DJF(b)-2-900
Belt
750
630
1400
28000
370
<65
DJF(b)-2-1000
Belt
900
610
1400
30000
750
<70
DJF(b)-2-1100
Belt
1000
600
1400
32500
750
<70
DJF(b)-2-1220
Belt
1100
460
1400
38000
750
<70
DJF(b)-2-1380
Belt
1270
439
1400
44000
1100
<70
DJF(b)-2-1530
Belt
325
1400
55800
1500
<70

Main Features

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , Bagplastic.com utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Fan blades

1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:

Blade material also have galvanized sheet, Bagplastic.com aluminum alloy for option

Belt Pulley

1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.

Bearing

Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, Bagplastic.com free maintenance and long service life.

Belt

Brand: Mitsuboshi belt (Japanese)
Type: A type
Advantage:
Famous brand, Bagplastic.com Long service life, maintenance free

Hanging Rings
Four hanging rings are added
Advantage:
Convenient to install and adjust the angle to reach excellent performance.
Round Frame Bagplastic.com
Material: Hot-dip galvanized sheet with zinc thickness of 275g/㎡
Advantage:
Extremely improves the anti-corrosion performance.

Safe Net

Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.

Blade Support Base

1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Bagplastic.com Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly.

Motor

1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, Bagplastic.com the first put in the phase lack protection device which would power off when shortage of electricity.

CNC Production Line
The fan is totally improved to numerical control steamlined production line
Advantage:
High quality, Bagplastic.com reach international top standard and attractive appearance.

Italligent Dynamic-balance Tester

Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g. Bagplastic.com

Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.

Heavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust FanHeavy Duty Poultry Ventilation System Exhaust Fan For Cooler, Window Mounted Exhaust Fan
