LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm
LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm
LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm
LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm
LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm
LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm
Specifications
Brand Name :
XINLEI
Model Number :
XLGC-600
Certification :
Letters Patent
Place of Origin :
JIANGYIN
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 set per month
Delivery Time :
15-20 work days
Packaging Details :
Wrapping Film
Material :
LDPE HDPE CPP
Machine speed :
less than 300m/min
Tension :
Automatic tension
Voltage :
380V
Weight :
1950kg
Total power :
5kw
Warranty :
one year
Condition :
New
Dimension :
3500*1650*2800mm
After-sales service provided :
Online support,Video technical support
Description

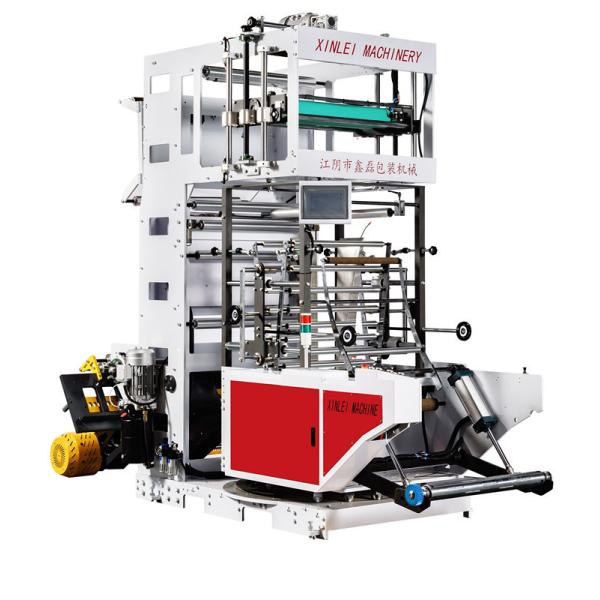

High Speed Vertical Gusset Machine

This machine adopts Japanese technology, upload and download in unwinding and rewinding are automatic control by cylinder .

Unwinding adopts automatic tension adjustment, photoelectric automatic correction .

The main driver adopts vector frequency motor ,rewinding adopts servo motor , suitable for inserting edge rewinding of toilet paper bags, sanitary bags, shopping bags and other tube material.

The speed of the machine is less than 300 meters per minute.

Main Technical Parameters

Material LDPE.HDPE.CPP.etc
Unwinding Width ≤700mm
Uwinding Diameter ≤1000mm
Rewinding Diameter ≤800mm
Machine Speed ≤300m/min
Power Supply 380V50Hz
Total Power 5KW
Machine Dimension 3500*1650*2800mm
Machine Weight 1950KG

LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm

pictures as reference

Detailed Images

LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm

LDPE HDPE Vertical Gussets Machine 300m/Min CPP 3500X1650X2800mm
