UL Listed Bakelite Moulding Powder Brown Color For Injection Heat Resistance Parts
UL Listed Bakelite Moulding Powder Brown Color For Injection Heat Resistance Parts
UL Listed Bakelite Moulding Powder Brown Color For Injection Heat Resistance Parts
UL Listed Bakelite Moulding Powder Brown Color For Injection Heat Resistance Parts
Specifications
Brand Name :
HONINGLITE
Model Number :
PF2A2-161J
Place of Origin :
CHINA
MOQ :
1000KGS
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
5000TONS PRT MONTH
Packaging Details :
25KGS BAG
Appearance :
Brown Granule
Package :
25kg bag
Molding Process :
Injection
Filler :
Wood flour and Glass fiber
Features1 :
Improved heat resistance
Features2 :
Fast curing
Description

UL Listed Bakelite Moulding Powder Brown Color for Injection Heat Resistance Parts

Product Description

● Based on phenolic novolak resin,wood dust and mineral dust filled
● Fast Curing and suitable for compression moulding process
● For general purpose of parts and knobs for household appliance

Bakelite Moulding Powder are produced with with heated rollers or extruders.Treatment of a mixture of phenolic novolac resin,hexamethylenetetramine, fillers and additives leads to an intermediate, the actual moulding material. The polycondensation is driven so far that the moulding material in the final molding step can still flow, but so that the final cross-linking occurs very quickly. Especially important processing properties are good flow characteristics and rapid curing.

HONING Heat resistance PMC PF2A2-161J
Used under the upper temperature limit of 280℃ and the upper voltage limit of 220V

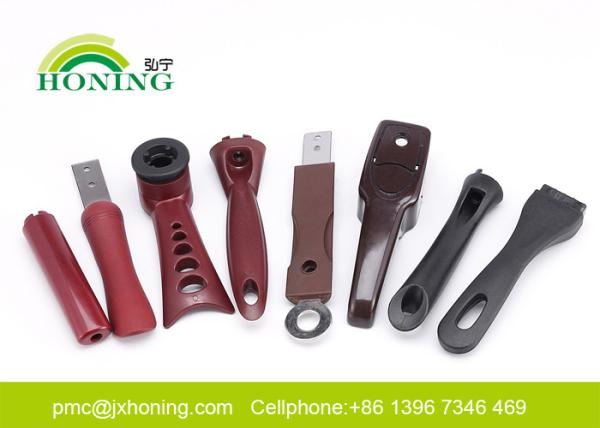

Suitable for handles and knob of electric oven and top grade pan, coil holders
(transformer coil frameworks) etc.

♦ Glassfiber reinforced
♦ High heat resistance
♦ UL V-0 Approved

Specification:

Physical properties Typical value Unit Standard
Density 1.5 g/cm3 ISO1183
Apparent Density 0.5 g/cm3 ISO60
Moulding Shrinkage 0.9 % ISO2557
Water absorbency(24h / 23°C) 20 mg ISO62
Thermal properties
Temperature of deflection under load 140 ℃ ISO75-2
Temperature resistance 180 ℃ DIN44904
Mechanical properties
Flexural strength 80 Mpa ISO178
Charpy Impact strength 1.55 KJ/m2 ISO179-1
Charpy notched Impact strength 6.5 KJ/m2 ISO179-1
Electrical properties
Electrical strength 10 KV/mm IEC60243-1
Insulation resistance 1010 ohm IEC60167
Surface resistivity 1012 ohm IEC60093
Volume resistivity 1012 ohm*cm IEC60093
Dissipation factor(1MHz) tanδ 0.1 - IEC60250
Proof Tracking Index 150 - IEC60112

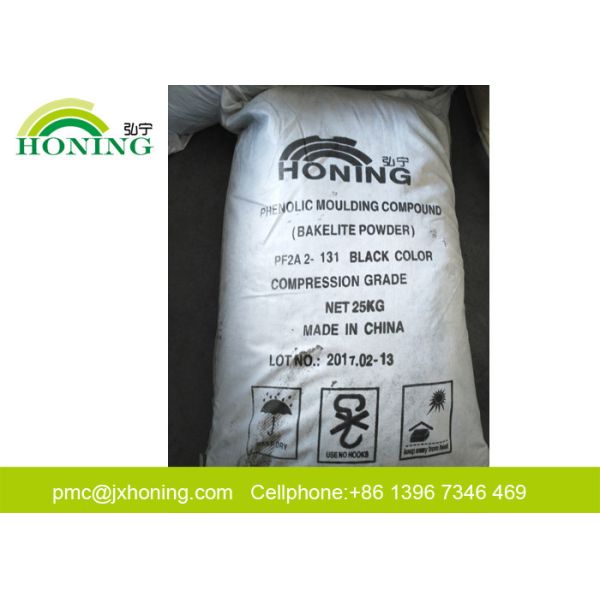

Packing&Storage

the package is paper-plastics bag in 25KGS each one
The storage life of this product is 12 months in a cool and dry place in original closed bags
