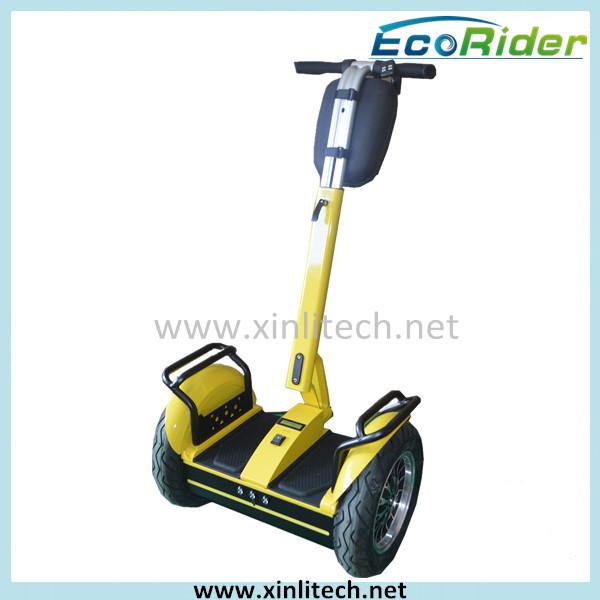

Two Wheeled Self Balance Electric Scooter Free Standing Segway I2 47Kg

I.About the Escooter
The product is a fully open, all electric scooter with innovative design and sensible mind which can easily figure

out what you think about, bringing you the unprecedented driving experience you even experienced.
Working principle of EScooter
The real innovation in this escooter, though, is that it can stay upright, all by itself.The driver does not need to

balance it at all.This is achieved with the innovative use of 5 groups of gyroscope under the substructure where

it also lies the working principle of this electric scooter.It simply follows where your gravity center goes.With

an integrated circuit PCB board inside to control the signal flow, ESII, scooter moves forward as you lean

forward and slows down as you lean backward or lower your gravity center.Braking device is totally unnecessary

in this scooter.This scooter can even turn 360 degree with 0 radius, making it flexible under narrow space.

II About US
With three years of Experience, advanced tech and skilled workforce, we are confident to supply our scooters

direct to you at competitive prices with no middle man.

We offer an extensive range of stylish scooter designs in eye-catching colours.There's bound to be a scooter to

get you whizzing off down the road.Don't forget to check out our latest three model ESII and ESIII and ESOI

(off road).
OEM service provided, welcome to consult for more information.

III .Application Field--Where is Escooter can be used?
This Mobility scooter can be used for leasing, tour,patrol.
It has wide application as below:
Police, security personnel patrol
Personal travel, amusement and short-distance travel
Renting in tourist attractions, exhibition hall,hotel,parks,and amusements playgrounds
Intelligent robot moving platform
Industrial zone, factory, warehouse personal transport

IV Join US
Distributors and dealers are wanted.No matter where you are from, fully support will be provided to you and

make your business fly.Let us grow together!
OEM service provided, welcome to consult for more information.

V FAQ
1.How to order?
Simply inquiry us by your wanted model.With deals made, we can send the product to your door through DHL,

FedEx, UPS, etc.

2.How does EScooter move?How does it balance?
Escooter senses the lean of the rider with the assistance of two-dimensional inertial navigation system and

two accelerometers that sense the angle of the E-scooter with respect to gravity at
100 times per second.It balances the rider by applying forces to the ground in the direction of the lean.If you

lean forward the Escooter applies motor torque to the wheel to push it forward, bring you upright and balance

you.When you lean back, it applies reverse torque to slow you down and balance you accordingly.

Feature of new model:
1.New steering mechanism, more stable and comfortable, faster response
2.Updated process motherboard, more safe and easy to be controlled
3.Waterproof
4.Advanced design for steer and handle, beauty and fashion
5.More exquisite and light steering mechanism, more flexible turning
6.New model pedal with 4 detecting switch.Driver will not fall down in driving.
7.Adjusting big power importing motor.Max power of single wheel can achieve 800W, easy to climb

continuously 30 degree slope.
8.Siren alarm, reminding the statue of scooter
9.GPS tracking is optional
10.High quality wheel with smooth racing tire.

Description of Escooter(ESIII-L)
1.New Design,imporved based on model ESIII.
2.Lock/Unlock by remote control
3.Default horizontal position3.
4.Front light lighted and back light alarm
5.Three different Speed Mode Switching
6.Motor:Two import DC Motor, DC servo drives
7.Max distance:30 km depends on terrain and driving skill

Specifications

Brand & Model: Ecorider ESIII-L1 or L2
Net Weight:47kg
Dimension: 68*43*43 cm
Max.cruise speed: 18km/h(customized)
Max.load: 125kg
Max.mileage: 30-35km
Max.climb angle: 30 degree
Min.turning radius: 0 degree
Charging time: 4-5hours
Battery: Lithium Battery 72V, 8.8AH
Power: brush DC motor
Voltage : 100V-240V
Max.Power: 2000watts(1000w*2pcs)
Lifetime of battery: 1-3years
Tire: 17inches/43cm vacuum
Height of handle : 800-1100mm adjustable
Height of footplate: 260mm
Max.height above ground: 130mm
HS CODE: 8711901090
Warranty: 12 months
Colors:Black, White, Red, Green, Blue, Yellow, Orange,Golden, mix colors, etc.

Packing&Shipping

G.W: 57 kg

Carton Size:74*48*64cm; 0.23CBM per carton,108 pcs per 20ft container.

Double package protect Escooter.Make sure that it is safe in deliver.

QUALITY&CERTIFICATES

Quality assurance is extremely important to our company. We have advanced QC and production equipment at our disposal and can provide a consistent high standard for products. Our scooters strictly comply with IQC, IPQC and FQC standards and specifications.Our scooters have been certificated by CE, FCC and ROSH etc. Also we strictly follow the standard of ISO9001.
