1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU
1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU
1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU
1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU
1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU
1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU
Specifications
Brand Name :
GQZ
Model Number :
LMB8UU
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or PayPal
Supply Ability :
3,000pcs per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
LMB8UU
Shaft diameter :
1/2 inch
Numbers of ball row :
4
Outer diameter :
0.875 inch
Length :
1.5 inch
Bearing Material :
Chrome steel
Mass :
0.04 kg
Lead time :
Within 3 days
Description

12.7mm Shaft Diameter Rubber Seals on both sides Inch Dimension Linear Bearing LMB8UU

1. Specification:

Product name: 12.7mm Shaft Diameter Inch Dimension Linear Bearing LMB8UU
Model NO.: lmb8uu
Brand: GQZ or OEM
Type: Linear bearing lmb8uu
Material: Gcr15,45#steel,chrome steel,stainless steel,aolly steel
Quality standard: ISO9001:2008
Dimension: Showing below
Seal type: U/UU/P/PP
Pre/after sale service: Information consulting, product as your drawings , design as you required, quote price & delivery date, free sample, OEM & ODM, technical support etc.
Payment: TT, L/C, Paypal, Western Union acceptable
Shipment: As negotiated

2. LMB,LMB...AJ and LMB...OP Difference

1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU.

LMB is inch stand type

LMB...AJ means inch size adjustment type

LMB...OP means inch dimension open type

3. Application:

LMB8UU bearing is widely used in food machinary,packing machine,medicial machinary,printing machine,CNC machine tool,precision equipment and so on.

4. Feature:

(1) Good quality

(2) Competitive price

(3) Quick delivery
(4) Long-term quality guarantee

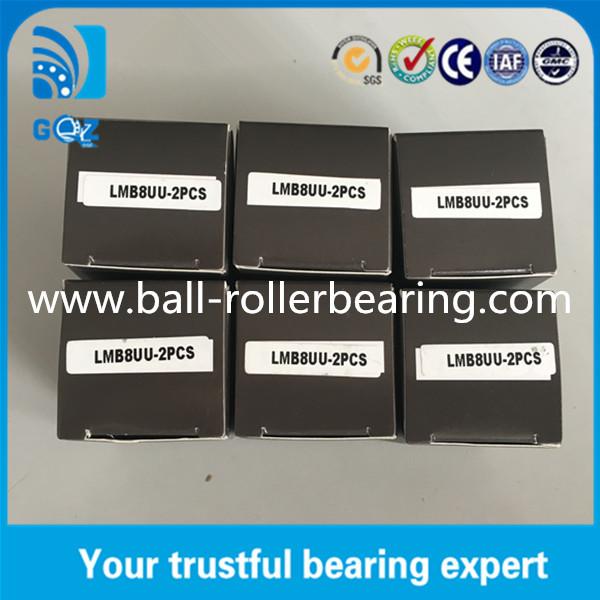

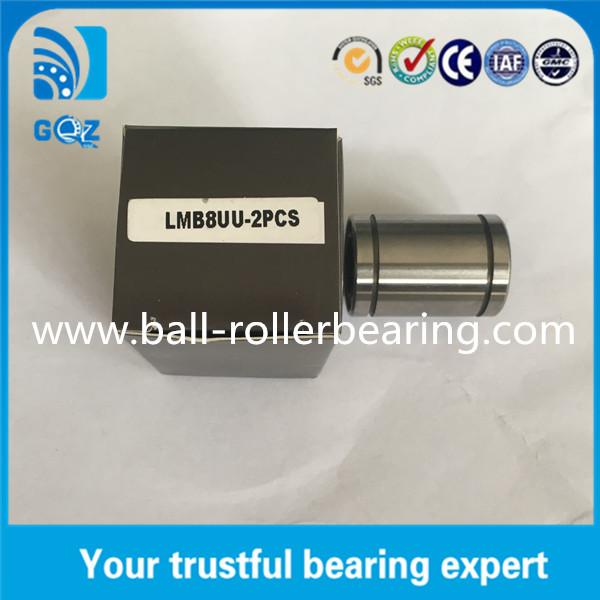

5. Bearing Picture:

1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU

1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU

1/2 inch Shaft dia Linear Motion Bearings with Chrome steel Material LMB8UU

6. We also supply following SBR bearings:

Model Dimension(mm) Slide bush
h E W L F H1 θ B C S L1 T no.
SBR10UU 15 18 36 32 24 6 80° 25 20 M5 10 7 LM10UUOP
SBR13UU 17 20 40 39 27.6 8.5 80° 28 28 M5 10 8 LM13UUOP
SBR16UU 20 22.5 45 45 33 10 80° 32 30 M5 12 9 LM16UUOP
SBR20UU 23 24 48 50 39 10 60° 35 35 M6 12 11 LM20UUOP
SBR25UU 27 30 60 65 47 11.5 50° 40 40 M6 12 14 LM25UUOP
SBR30UU 33 35 70 70 56 14 50° 50 50 M8 18 15 LM30UUOP
SBR35UU 37 40 80 80 63 16 50° 55 55 M8 18 18 LM35UUOP
SBR40UU 42 45 90 90 72 19 50° 65 65 M10 20 20 LM40UUOP
SBR50UU 53 60 120 110 92 23 50° 94 80 M10 20 25 LM50UUOP
SBR16LUU 20 22.5 45 85 33 10 80° 32 60 M5 12 9 LM16LUUOP
SBR20LUU 23 24 48 96 39 10 60° 35 70 M6 12 11 LM20LUUOP
SBR25LUU 27 30 60 130 47 11.5 50° 40 100 M6 12 14 LM25LUUOP
SBR30LUU 33 35 70 140 56 14 50° 50 110 M8 18 15 LM30LUUOP
SBR40LUU 42 45 90 175 72 19 50° 65 180 M10 20 20 LM40LUUOP

If you have any inquiry,please contact us!
