Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing
Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing
Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing
Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing
Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing
Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing
Specifications
Brand Name :
GQZ or OEM
Model Number :
CSK40PP
Certification :
ISO
Place of Origin :
China Jiangsu
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or PayPal
Supply Ability :
3,000pcs per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
CSK40PP
ID :
40mm
OD :
80mm
Thickness :
22mm
Direction :
one way direction
Seals :
Rubber seals
Keyway :
each keyway in inner ring and outer ring
Stock :
30000 Sets
Description

Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing

1. Specification:

Metric Series Inch series Introduction
AXK TC Thrust needle roller and cage assemblies, single cage
NTB NTA Thrust needle roller and cage assemblies, double cage
AXW Thrust needle roller bearings with centering
AX Thrust needle roller bearings with washer
K811,K812,K893,K874,K894 Thrust roller and cage assembly
GS811,812,893,874,894 Thrust race, outer surface grinding
WS811,812,893,874,894 Thrust shaft ring, the inner surface grinding
LS Thrust washers, economical, no grinding inner and outer surfaces
ZS Center washer

AS

 TWA,TWAB,TWC,TWD; Thrust washer
TRA,TRB,TRC,TRD Thrust washer

2. Feature:

(1) One way direction

(2) has two keyway in inner ring and outer ring

(3) Rubber seals
(4) Competitive price

(5) Good qualtiy

(6) Rich stock

(7) Quick delivery

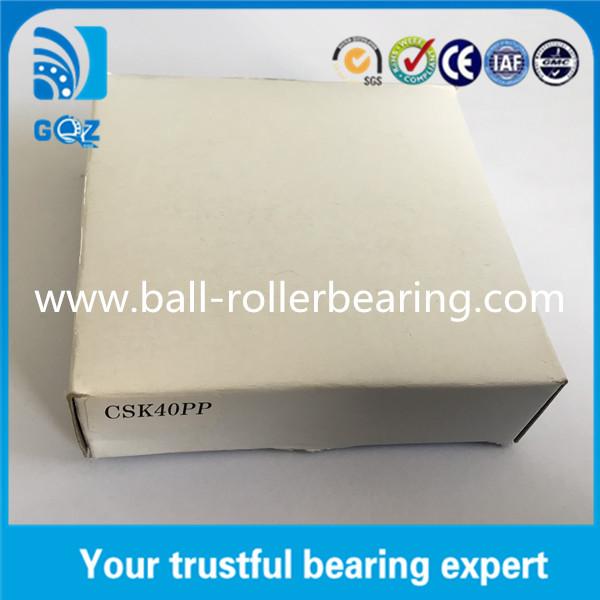

3. Bearing Picture:

Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing

Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing

Rubber Sealed One Way Direction Bearing CSK40PP One Way Sprag Clutch Bearing

4. We also supply following needle roller bearings:

Model Dimension (mm) Rating Torque
(Nm)		 W.G(Kg) dimension (mm)
ID OD T H h d1 D1
CSK8 8 22 9 2.5 0.015 3 3 8.5 21.5
CSK12 12 32 10 7.5 0.04 2 4 13.2 31.4
CSK15 15 35 11 13.5 0.05 2 5 16.2 34.4
CSK17 17 40 12 24.5 0.07 2 5 18.2 39
CSK20 20 47 14 40 0.11 3 6 21.6 45.5
CSK25 25 52 15 68 0.14 6 8 27 50
CSK30 30 62 16 110 0.21 6 8 32 60
CSK35 35 72 17 140 0.3 8 10 37.4 69.5
CSK40 40 80 22 260 0.5 10 12 43.2 77
CSK305 25 62 17 120 0.25 6 8 27 60
CSK306 30 72 19 160 0.38 6 8 32 69.5
CSK12-2RS 12 32 14 7.5 0.05 2 4 13.2 31.4
CSK15-2RS 15 35 16 13.5 0.07 2 5 16.2 34.4
CSK17-2RS 17 40 17 24.5 0.09 2 5 18.2 39
CSK20-2RS 20 47 19 40 0.145 3 6 21.6 45.5
CSK25-2RS 25 52 20 68 0.175 6 8 27 50
CSK30-2RS 30 62 21 110 0.27 6 8 32 60
CSK35-2RS 35 72 22 140 0.4 8 10 37.4 69.5
CSK40-2RS 40 80 27 260 0.6 10 12 43.2 77
