NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm
NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm
NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm
NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm
Specifications
Brand Name :
NSK/OEM
Model Number :
NN3924MBKR
Certification :
ISO9001:2008
Place of Origin :
Japan
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or PayPal
Supply Ability :
3,000pcs per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Structure :
Cylindrical
Type :
Roller
Material :
Chrome steel
Application :
Vibration machinary,CNC machine and so on
Description

NSK Double row bearing NN3924MBKR Double row cylindrical roller bearing NN3924 120 x 165 x 34 mm

Double row cold rolling mill bearing NN3924MBKR information :

Bearing name :cold rolling mill bearing cylindrical roller bearing

Model : NN3924MBKR bearing

Size : 120*165*34 mm

Weight : 1.99 KG

Material : GCR-15

Precision : P0 P6 P5 P4

Quality : ISO9001:2008 approved

OEM service: Offer

Types of cylindrical roller bearing:

.Single row cylindrical roller bearing: NU, NJ, NUP, NUB series

.Double row cylindrical roller bearings:NNU series

.Four row cylindrical roller bearing:FC series

.Single row full complement cylindrical roller bearing:SL18 series, SL 19 series

.Double row full complement cylindrical roller bearing

.SL01 series, SL02 series, SL18 series.

Cold rolling mill bearing cylindrical roller bearing numbering system :

NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm

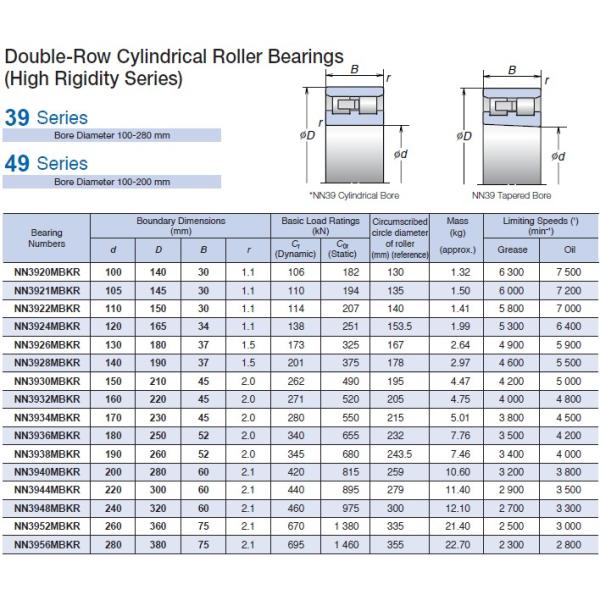

Bearing type Cage symbol Specification Available size
NN MB Roller guided machined brass cage

NN3005,NN3026-NN3040

NN3920-NN3956,NN4920-NN4940
TB Roller guided PPS resin cage NN3006-NN3024
NNU MB Roller guided machined brass cage NNU4920-NNU4940
N MR Roller guided machined brass cage N1006-N1028
TP Outer ring guided PEEK resin cage N1009-N1017

Cold rolling mill bearing cylindrical roller bearing NN3924MBKR model series :

NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm

NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm

NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm

NSK NN3924MBKR Double Row Cylindrical Roller Bearing NN3924 120 x 165 x 34 mm

Introduction about cold rolling mill bearing cylindrical roller bearing :

NSK’s double row cylindrical roller bearing’s rigidity makes them a perfect match for use in machine tool spindles. Tipically,single row and double row cylindrical roller bearings have either bore or a tapered bore. Double row culindrical roller bearings with a tapered bore are often mounted to the main shaft as a fixedend bearing.Simplicity in design and the ability to adjust radial internal clearance after mounting continue to make these bearings populor among machine tool users .

NSK offers several types of cylindrical roller bearings. Users can request and E44 configuration,which includes both lubrication holes and a machined lubrication groove on the outside surface of the outer ring. Types of bearings include the NNU type, which feathures double ribbed outer rings, and the NN type,which features excellent grease discharge during the initial running-in period,and helps promote steady oil flow throught the bearing.

For thin section type bearings , the narrower NN39 series is more suitable than the wider NN49 series due to less heat generation and greater roller stability.Machined brass cages are most common wth cylindrical roller bearings. NSK offers a roller guide pps resin cage for the NN30 series, and a PEEK resin cage, which is guided by the outer ring, for N10 series series of ultra high-speed single-row cylindrical roller bearings.
