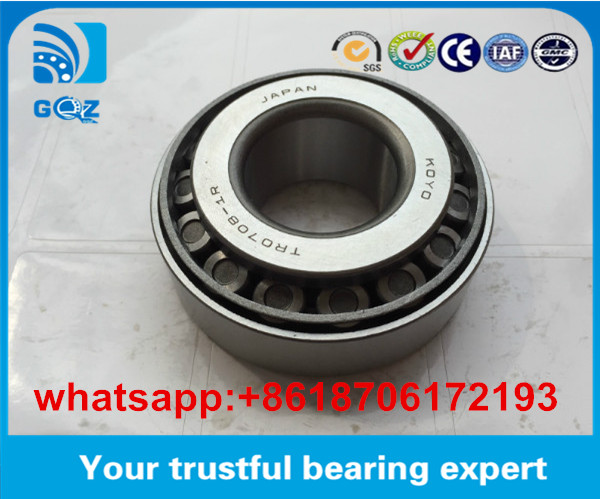

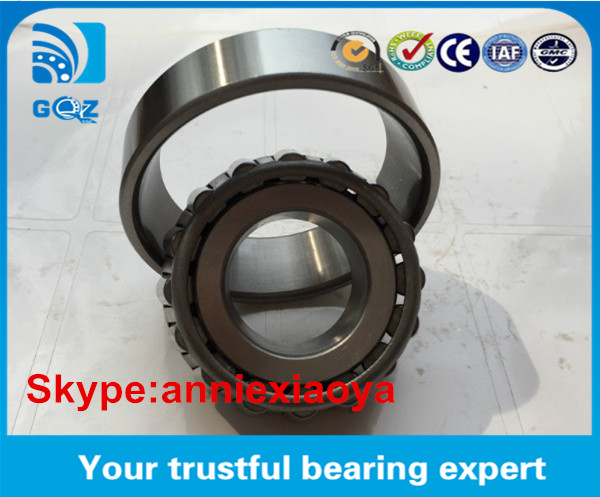

KOYO Japan single row taper Tapered Roller Bearing TR0708-1R 35x80x31 mm TR0708-1R
KOYO Japan single row taper Tapered Roller Bearing TR0708-1R 35x80x31 mm TR0708-1R
Specifications
Brand Name :
KOYO
Model Number :
TR0708-1R
Certification :
ISO9001:2008
Place of Origin :
Japan
MOQ :
1
Price :
1 USD
Payment Terms :
T/T, Western Union
Supply Ability :
10000PCS/Month
Delivery Time :
5 working days
Packaging Details :
Single packing + standard export packing
Bearing type :
Tapered Roller Bearing
Tolerance grade :
ABEC1,ABEC3,ABEC5
Feature: :
Stable Performance:low Voice
Material :
chrome steel(GCR15)
Weight :
0.83 KG
Number of Row :
Single Row
Description

KOYO Japan single row taper Roller Bearing TR0708-1R roller taper bearing tapered roller bearing 35x80x31 mm TR0708-1R

The Brief Introduction of Taper Roller Bearing:

Tapered roller bearing type belongs to the separation bearing, have tapered roller bearing inner

andouter race.According to these bearings on the column number of the roller , it is divided into

single row, double row and four row circular cone roller bearings of different structure.Single row

circularcone roller bearings can bear radial load and the single direction axial load.When bearing

radial load, axial force component, would create a so when need another affordable bearing axial

force in the opposite direction to balance.Widely used in automotive, rolling mill, mining, metallurgy,

plastics machinery and other industries.

Taper Roller Bearing TR0708-1R Details:

KOYO Japan single row taper Tapered Roller Bearing TR0708-1R 35x80x31 mm TR0708-1R

Dimensions

(mm)

 Basic load ratings
(kN)		 Cone Cup

Limiting

 Mass
d D T Cr Cor B R C r Grease lub. Oil lub. (kg)
35 80 32.75 96.9 123 31 2 21 1.5 5200 7000 0.527

Parameter List for the Other Taper Roller Bearing Models:

KOYO SINGLE ROW TAPERED ROLLER BEARINGS, METRIC SERIES
Bearing No. Boundary dimensions(mm) Mass
(kg)
d D T B
32006JR 30 55 17 17 0.177
33006JR 30 55 20 20 0.203
30206CR 30 62 17.25 16 0.23
30206JR 30 62 17.25 16 0.236
32206XR 30 62 21.25 20 0.3
32206JR 30 62 21.25 20 0.292
33206JR 30 62 25 25 0.359
30306DJR 30 72 20.75 19 0.4
TRA0607R 30 72 20.75 19 0.405
30306JR 30 72 20.75 19 0.411
32306CR 30 72 28.75 27 0.61
32306JR 30 72 28.75 27 0.588
320/32JR 32 58 17 17 0.196
302/32CR 32 65 18.25 17 0.275
302/32R 32 65 18.25 17 0.266
322/32CR 32 65 22.25 21 0.34
322/32 32 65 22.25 21 0.33
332/32JR 32 65 26 26 0.404
303/32CR 32 75 21.75 20 0.465
303/32R 32 75 21.75 20 0.461
TR0608A 32 75 29.75 28 0.649
323/32R 32 75 29.75 28 0.65
32907JR-2 35 55 14 14 0.12
32007JR 35 62 18 18 0.231
33007 35 62 21 20 0.25
33007JR 35 62 21 21 0.263
30207CR 35 72 18.25 17 0.35
30207JR 35 72 18.25 17 0.344
32207-1R 35 72 24.25 23 0.465
32207JR 35 72 24.25 23 0.453
33207JR 35 72 28 28 0.551
30307DJR 35 80 22.75 21 0.536
30307XR 35 80 22.75 21 0.56
30307JR-1 35 80 22.75 21 0.527
TR0708-1R 35 80 32.75 31 0.83
32307JR 35 80 32.75 31 0.776
32908JR 40 62 15 15 0.164
32008JR 40 68 19 19 0.282
33008JR 40 68 22 22 0.326
33108JR 40 75 26 26 0.508
30208CR 40 80 19.75 18 0.445
30208JR 40 80 19.75 18 0.434
32208CR 40 80 24.75 23 0.57
32208JR 40 80 24.75 23 0.554
33208JR 40 80 32 32 0.758
T2EE040 40 85 33 32.5 0.9
30308DJR 40 90 25.25 23 0.757
30308XR 40 90 25.25 23 0.78
30308JR 40 90 25.25 23 0.757
TR0809AR 40 90 35.25 33 1.1
