OEM Double Row Spherical Roller Bearing Self Aligning Roller Bearing 40038 750CAW33
OEM Double Row Spherical Roller Bearing Self Aligning Roller Bearing 40038 750CAW33
Specifications
Brand Name :
OEM
Model Number :
40038/750CAW33
Certification :
ISO 9001 2000
Place of Origin :
China or Japan
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or PayPal
Supply Ability :
3,000pcs per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Structure :
Spherical
Type :
Roller
Numer of Row :
Single Row
Material :
Chrome steel
Seals Type :
open or seal
Precision :
P0,P6,P5,4
Noise level :
Z1, Z2, Z3
Certificate :
ISO9001:2008
Description

OEM double row spherical roller bearing 40038 750CAW33 for large machinery with brass cage of CA,MA,MB/W33 40038/750

The Self-aligning Roller Bearing/Spherical Roller Bearing Introduction

Spherical Roller Bearing have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway.Since the center of curvature of the outer ring raceway surface coincides with the bearing axis,they are self-aligning in a manner similar to that of Spherical Roller Bearing.

Spherical Roller Bearing Features

1) Spherical Roller Bearing are principally provided with two rows of symmetrical spherical rollers and a common sphere raceway in out ring.

2)With good self-aligning ability and can operate when the shaft deflection under load or the shaft deflection under load or the shaft misalignment in mounting, and their permissible aligning angle is 1 to 2.5 degree.
3) This type of bearings has heavy load carrying capacity and anti-impact ability, in addition to radial loads, theyalso can carry axial loads in two directions.

4)In general, this type of bearings permits a low limiting speed.

Application

Spherical bearings are used in countless applications, wherever rotational motion must be allowed to change the alignment of its rotation axis. A prime example is a tie rod on a vehicle suspension. The mechanics of the suspension allow the axle to moveup and down, but the linkages are designed to control that motion in one direction only and they must allow motion in the other directions. Spherical bearings have been used in car suspensions, driveshafts, heavy machinery, sewing machines, and many other applications.

New code
 40038/750
Bearing type
Spherical roller bearing
Brand
OEM
Business type
Manufacturer
Id (mm)
 750
OD (mm)
 920
B (mm)
 170
Weight(kg)
 252
Material
Chrome steel or Stainless steel
Delivery time
2-3 days of stock, 15-30 days for OEM
Packing
industrial packing or commercial packing
Payment terms
T/T, Western Union, Paypal
Gurantee
2 years
Model of spherical roller bearing:
d(mm) D(mm) B(mm)
22215 75 130 31
21315 75 160 37
22315 75 160 55
22216 80 140 33
21316 80 170 39
22316 80 170 58
22217 85 150 36
21317 85 180 41
22317 85 180 60
22218 90 160 40
23218 90 160 52.4
21318 90 190 43
22318 90 190 64
22219 95 170 43
21319 95 200 45
22319 95 200 67
23020 100 150 37
22220 100 180 46
23220 100 180 60.3
21320 100 215 47
22320 100 215 73
23022 110 170 45
23122 110 180 56
24122 110 180 69
22222 110 200 53
23222 110 200 69.8
21322 110 240 50

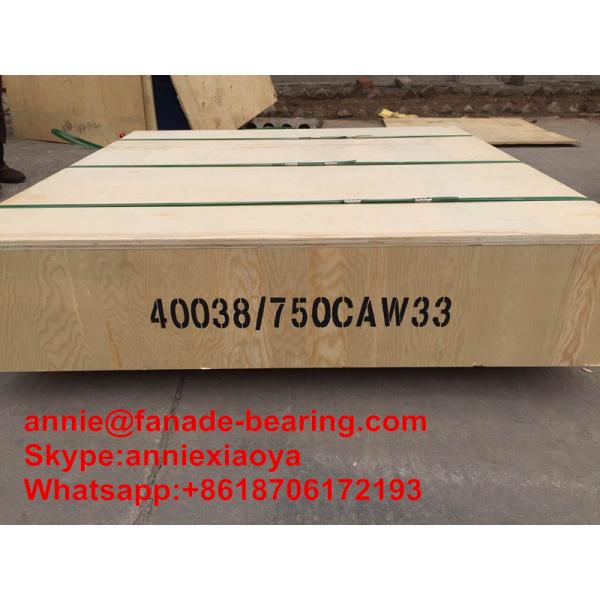

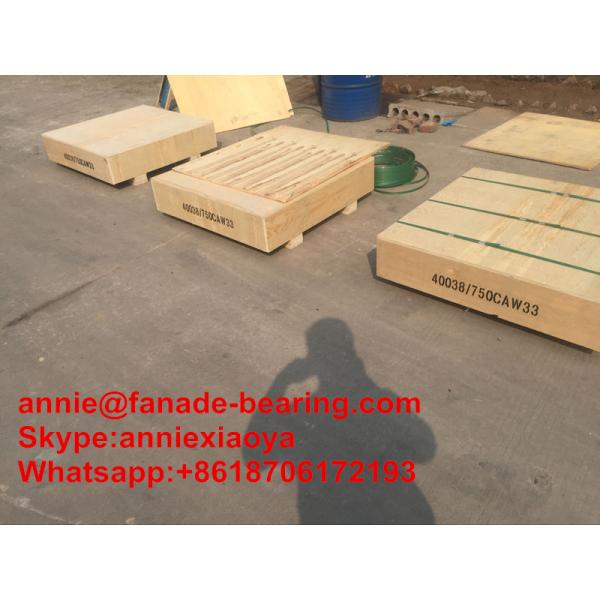

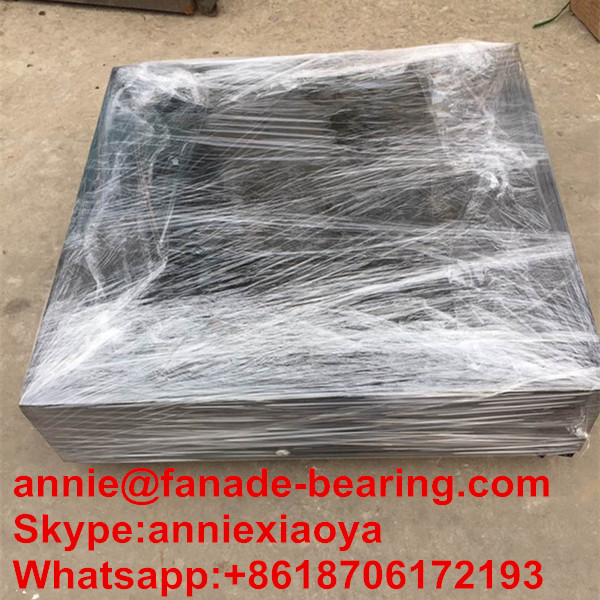

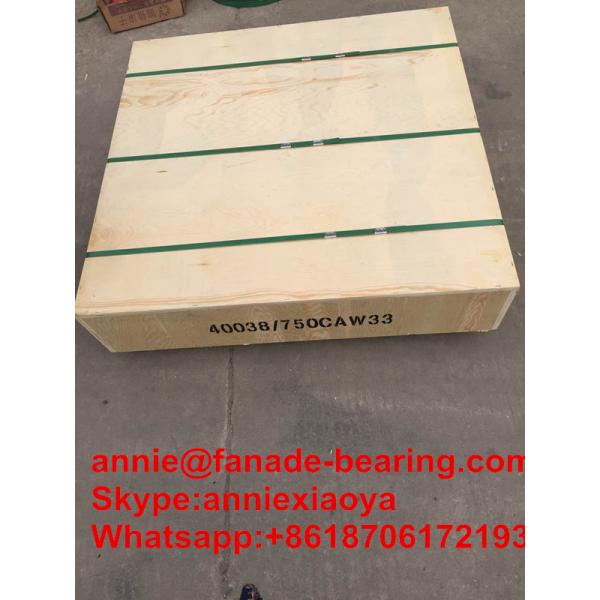

Bearing Picture:
OEM Double Row Spherical Roller Bearing Self Aligning Roller Bearing 40038 750CAW33

OEM Double Row Spherical Roller Bearing Self Aligning Roller Bearing 40038 750CAW33

OEM Double Row Spherical Roller Bearing Self Aligning Roller Bearing 40038 750CAW33

OEM Double Row Spherical Roller Bearing Self Aligning Roller Bearing 40038 750CAW33
