Iron Ball Mill Lining Retaining Ring Liners For Cement Mill Hardness More than HRC52
Iron Ball Mill Lining Retaining Ring Liners For Cement Mill Hardness More than HRC52
Iron Ball Mill Lining Retaining Ring Liners For Cement Mill Hardness More than HRC52
Iron Ball Mill Lining Retaining Ring Liners For Cement Mill Hardness More than HRC52
Iron Ball Mill Lining Retaining Ring Liners For Cement Mill Hardness More than HRC52
Iron Ball Mill Lining Retaining Ring Liners For Cement Mill Hardness More than HRC52
Iron Ball Mill Lining Retaining Ring Liners For Cement Mill Hardness More than HRC52
Iron Ball Mill Lining Retaining Ring Liners For Cement Mill Hardness More than HRC52
Specifications
Place of Origin :
Jiangsu,China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF031
Price :
Discuss in email
MOQ :
5 Unit/Units
Port :
Shanghai
Packaging Details :
Packed in steel pallets.
Delivery Time :
It depends on quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons per Year
Certification :
ISO9001
Application :
mill lining,ball mill liners,coal-fired power plants
Material :
Iron
Dimensions :
KmTBCr15
Hardness :
More than HRC52
Impact Value :
More than 5J
Product Name :
Ball Mill Lining
Description

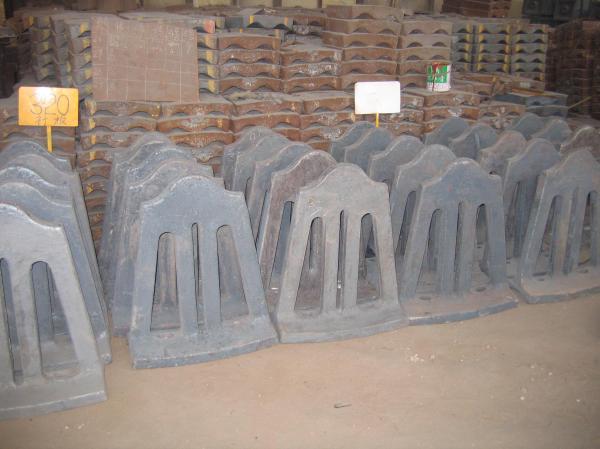

Iron Ball Mill Lining Retaining Ring Liners For Cement Mill



Quick Details
Retaining Ring Liners for Cement Mill Feature:
1.High hardness and high impact value;
2.Hardness distribution from surface to center is even;
3.Hardness:More than HRC52.

Retaining Ring Liners for Cement Mill Description:
1. High hardness and high impact value;
2. Hardness distribution from surface to center is even;
3. Hardness:More than HRC52;
4. No breakage;
5. Retaining ring liners are for cement mill dia3.8m × 13m.

China mill liners supplier provides ball mill liner services to worldwide ball mill liners customer.Hope you find our mill liner process and grinding mill liners product description helpful.

Technical Parameters

Item

Cr-Mo Alloy Steel Ⅰ

Cr-Mo Alloy Steel Ⅱ

Cr-Mo Alloy Steel Ⅲ

High Cr White Iron

High Cr Alloy Steel

High Mn Steel

Ni-hard Cast Iron

C

0.3-0.5

0.65-0.90

0.4-0.9

2.4-3.2

1.1-2.2

0.9-1.3

2.4-3.6

Si

0.15-1.20

≤0.75

0.7-1.2

0.6-1.2

0.6-1.2

≤0.8

≤0.8

Mn

0.4-1.2

0.5-1.2

0.6-1.0

0.5-1.0

0.5-1.0

11.0-18.0

≤2.0

Cr

1.7-2.5

1.5-2.5

4.0-7.0

12.0-30.0

11.0-30.0

1.5-2.5

1.5-10

S

≤0.04

≤0.06

≤0.04

≤0.04

≤0.04

≤0.04

≤0.15

P

≤0.04

≤0.06

≤0.06

≤0.06

≤0.06

≤0.06

≤0.15

Mo

≤0.5

≤0.5

≤0.15

0.1-3.0

0.1-3.0

≤1.0

≤0.1

Cu

0.1-0.6

≤0.25

0.2-0.4

0.1-1.0

0.1-1.0

-

-

Ni

≤0.5

≤0.3

0-0.3

0-0.3

0-0.3

-

3.3-10

Re

≤0.02

≤0.02

≤0.02

-

-

-

-

Equivalent
Specifications

DL/T 681-1999
GB/T26651-2011

AS2074L2B
Mod

DL/T 681-1999

GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A
25%Cr
ASTM A532 Class ⅡType B
15%Cr-Mo
BS4844 3E
DIN1695
NAF32401

GB/T5680-1998
DL/T 681-1999
JISG5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12

GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr1-550
AS2027/Ni-Cr4-600
AS2027/Ni-Cr1-630
ASTMA5321-A,B,C,D
ASTMA5322-A,B,C,D,E
ASTMA5323-A

Material type

Martensite Steel

Martensite or Pearlitic Cr Mo Steel

Martensite Steel

Martensite Matrix

Austenitic Mn Steel

-

Hardness

HRC≥48

HB470&HB321-370

HRC≥50

HRC≥56

HB≤300

HRC≥56

Impact Value

AK≥40J

-

AK≥10J

AK≥4J

AK≥80J

-


Our foundry has complete melting,heat treatment and test equipments,such as mid-frequency induction
electrical furnaces,quenching and tempering furnaces,blast shot,spectrometer,Rockwell and Brinell
Hardness tester,impactor,UT tester and metallographic microscope.We achieved the certificate of quality
management system ISO 9001:2008.We have been exporting castings to oversea markets,such as Brazil,
Australia and South Africa.
