Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48 Applied in Mining Industry
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF055
Price :
Discuss in email
MOQ :
5 Ton/Tons
Port :
Shanghai

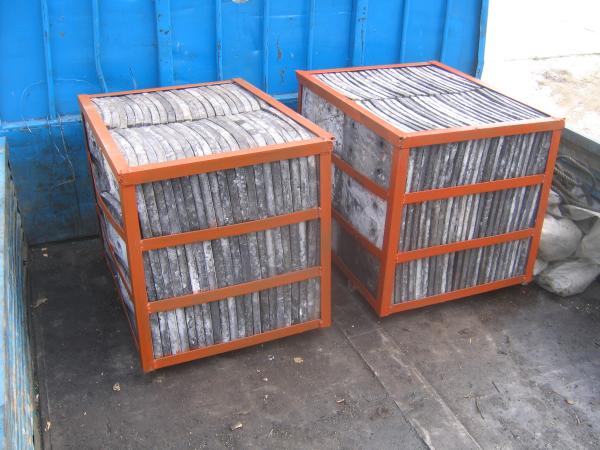

Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons per Year
Material :
Steel
Hardness :
More than HRC48
Dimension :
As per drawing
OEM :
Yes
Dimensional Checking & Gauging :
100% check
Surface Quality :
Good surface quality after shot blasting
Description

Wear-resistant Steel Mill Liners For Hoppers Hardness More Than HRC48

Specification

1.Material:Cr-Mo Alloy Steel

2.Hardness:≥HRC48

3.Impact Value:More than AK10J

4.Application:Mining Industry

5.MOQ:5tons

Our company is a Chinese specialized manufacturer of alloy steel castings.

We can produce alloy steel castings as per the drawings of customers.

Now we have been the regular suppliers of mill liners for Metso;Connect,Australia;

Product Photo

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -

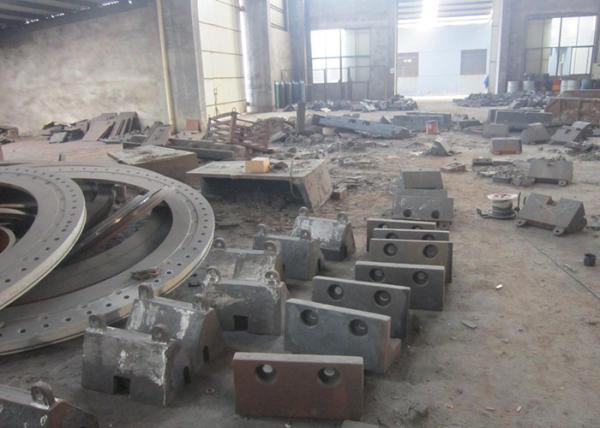

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Inspection Facilities

Spectrometer Portable Hardness Tester

UT Test Electronic Metallographic Microscope

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
