Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50
Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50
Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50
Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50
Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50
Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50
Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50
Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF068
Price :
Discuss in email
MOQ :
5 Ton/Tons
Port :
Shanghai
Packaging Details :
Packed by steel pallets.
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
5000 Ton/Tons per Year
Certification :
ISO9001
Application :
Ball Mill
Material :
Steel
Dimensions :
As per drawings
Hardness :
More than HRC50
Impact Value :
More than AK50J
HardneHardness difference from surface to core :
Less than HRC2
Description

Cr-Mo Alloy Steel Cement Mill Liners Hardness More Than HRC50

Specification

The Cr-Mo Alloy Steel Castings have the following features:

1. Hardness:≥HRC50;

2. Internal Quality: we check the internal quality with UT test;

3. External Quality: we check the external quality with MT test & visual inspection.

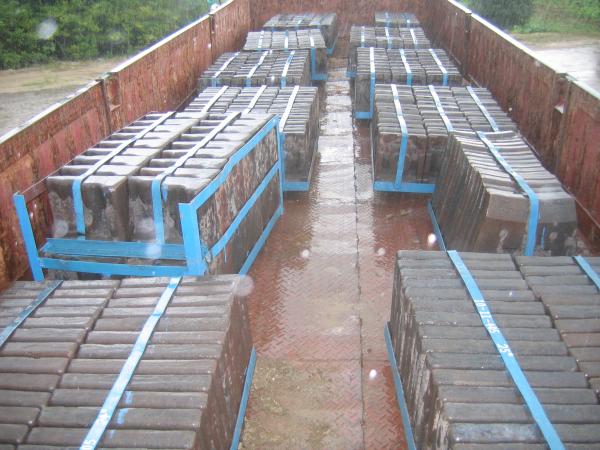

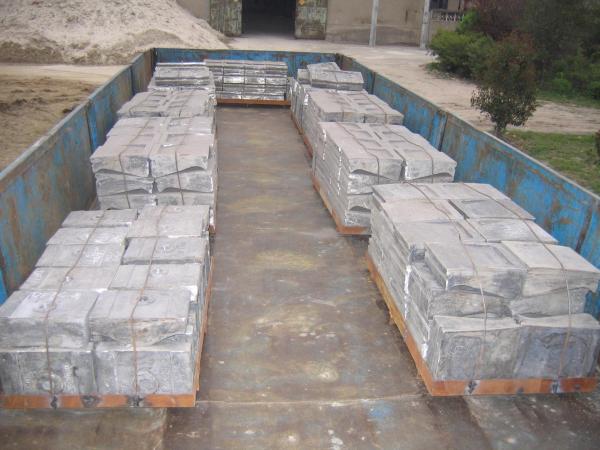

Product Photo

Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification		 DL/T 681-1999
GB/T26651-2011		 AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J

Production Facilities

1T,1.5T,3T, 5T,12T,15T Induction

Electrical Furnaces Heat Treatment Electrical Furnaces

Inspection Facilities

Spectrometer Portable Hardness Tester

UT Test Electronic Metallographic Microscope
