Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill
Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill
Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill
Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill
Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill
Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill
Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill
Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF067
Price :
Discuss in email
MOQ :
5 Ton/Tons
Port :
Shanghai
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons per Year
Certification :
ISO9001
Application :
Grinding Mill,Cement Mill
Material :
Steel
Dimensions :
As per drawings
Hardness :
More than HRC50
Impact Value :
More than AK50J
Hardness difference from surface to core :
Less than HRC2
Surface Quality :
Good surface quality after shot blasting
Product Name :
Cement Mill Liners
Description

Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill

Specification

1. Material:Cr-Mo Alloy Steel

2. Hardness:≥HRC50

3. Impact Value:More than AK50J

4. Application:Mining Industry

5. MOQ:5tons

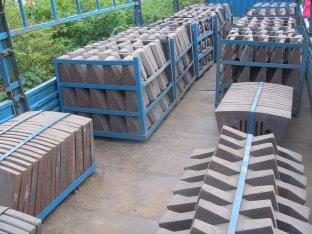

Product Photo

Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification		 DL/T 681-1999
GB/T26651-2011		 AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Inspection Facilities

Spectrometer Portable Hardness Tester

UT Test Electronic Metallographic Microscope

Honor

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
