Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42
Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42
Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42
Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42
Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42
Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42
Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42
Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF073
Price :
Discuss in email
MOQ :
5 Ton/Tons
Port :
Shanghai
Packaging Details :
Packed in strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time :
It depends on quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
25000 Ton/Tons per Year
Certification :
ISO 9001
Application :
AG mills
Material :
Steel
Dimensions :
As per drawings
Hardness :
HRC33~42 (HB310~390)
Microstructure :
Predominantly pearlite
Casting Soundness :
Level 2 of AS2574
Material Grade :
AS 2074 L/2B
Surface Finish :
Visual inspection after shot blasting
Description

Visual Inspection Predominantly Pearlite Cast Steel Mill Liners

For AG Mills

Specification

1.Material:Cr-Mo Alloy Steel

2.Hardness:HRC33-42

3.Impact Value:More than AK20J

4.Application:Mining Industry

5.MOQ:5tons

Our company is a Chinese specialized manufacturer of alloy steel castings.

We can produce alloy steel castings as per the drawings of customers.

Now we have been the regular suppliers of mill liners for Metso;Connect,Australia;

DuoBaoShan Coal Mill.

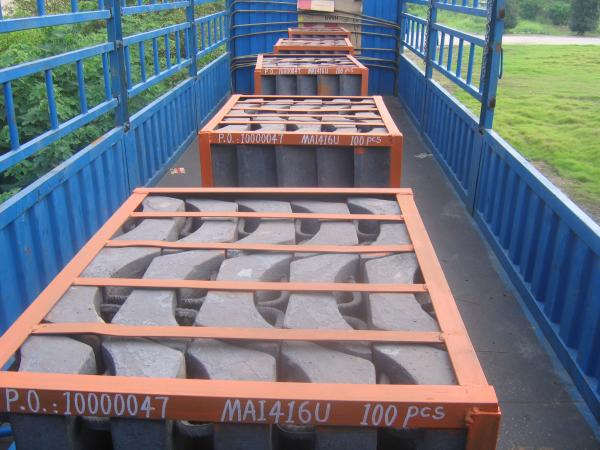

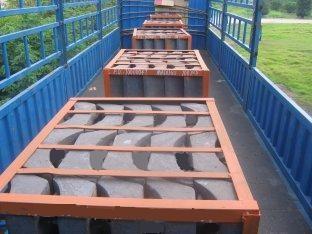

Product Photo

Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42 Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42

Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification		 DL/T 681-1999
GB/T26651-2011		 AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42 Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42

Inspection Facilities

Spectrometer Portable Hardness Tester

Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42 Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42

UT Test Electronic Metallographic Microscope

Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42 Visual Inspection Predominantly Pearlite Cast Steel Mill Liners For AG Mills Hardness HRC33~42

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
