Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF108
MOQ :
5 Ton/Tons
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons per Year
Port :
Shanghai
Certification :
ISO 9001
Product Name :
Ball Mill Lining
Application :
Mill Liners
Material :
Steel
Dimensions :
As per drawings
Hardness :
HRC33-43
Impact Value :
About 70J
Description


Cr-Mo Alloy Steel Shell Ball Mill Lining,Air Quenching Mill Liners


Quick Details
1. Internal Quality: Cr-Mo alloy steel shell liners pass UT test;
2. External Quality: Cr-Mo alloy steel shell liners pass MT test.

Cr-Mo Alloy Steel Shell Liners
The Cr-Mo Alloy Steel Shell Liners have the following features:
1. Hardness: more than HRC33-43;
2. Impact Value: about 70J;
3. Special heat-treatment process: Air quenching；

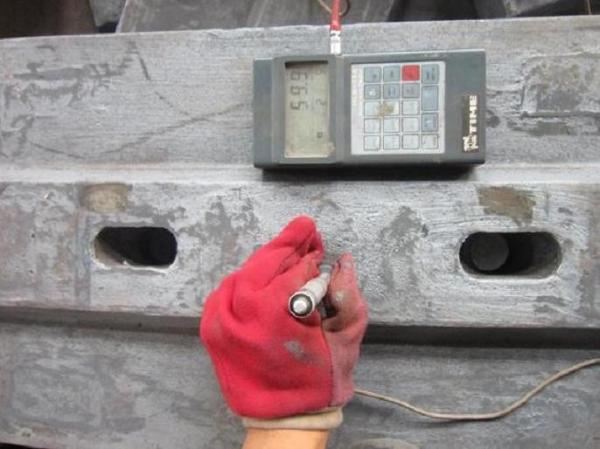

4. Internal Quality: we check the internal quality with UT test;
5. External Quality: we check the external quality with MT test & visual inspection.

Application :Mill Liners
Material :steel
Dimensions :As per drawings
Hardness :HRC33-43
Impact Value :about 70J
Hardness difference from surface to core :Less than HRC2

Technical Parameters

Item

Cr-Mo Alloy Steel Ⅰ

Cr-Mo Alloy Steel Ⅱ

Cr-Mo Alloy Steel Ⅲ

High Cr White Iron

High Cr Alloy Steel

High Mn Steel

Ni-hard Cast Iron

C

0.3-0.5

0.65-0.90

0.4-0.9

2.4-3.2

1.1-2.2

0.9-1.3

2.4-3.6

Si

0.15-1.20

≤0.75

0.7-1.2

0.6-1.2

0.6-1.2

≤0.8

≤0.8

Mn

0.4-1.2

0.5-1.2

0.6-1.0

0.5-1.0

0.5-1.0

11.0-18.0

≤2.0

Cr

1.7-2.5

1.5-2.5

4.0-7.0

12.0-30.0

11.0-30.0

1.5-2.5

1.5-10

S

≤0.04

≤0.06

≤0.04

≤0.04

≤0.04

≤0.04

≤0.15

P

≤0.04

≤0.06

≤0.06

≤0.06

≤0.06

≤0.06

≤0.15

Mo

≤0.5

≤0.5

≤0.15

0.1-3.0

0.1-3.0

≤1.0

≤0.1

Cu

0.1-0.6

≤0.25

0.2-0.4

0.1-1.0

0.1-1.0

-

-

Ni

≤0.5

≤0.3

0-0.3

0-0.3

0-0.3

-

3.3-10

Re

≤0.02

≤0.02

≤0.02

-

-

-

-

Equivalent
Specifications

DL/T 681-1999
GB/T26651-2011

AS2074L2B
Mod

DL/T 681-1999

GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A
25%Cr
ASTM A532 Class ⅡType B
15%Cr-Mo
BS4844 3E
DIN1695
NAF32401

GB/T5680-1998
DL/T 681-1999
JISG5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12

GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr1-550
AS2027/Ni-Cr4-600
AS2027/Ni-Cr1-630
ASTMA5321-A,B,C,D
ASTMA5322-A,B,C,D,E
ASTMA5323-A

Material type

Martensite Steel

Martensite or Pearlitic Cr Mo Steel

Martensite Steel

Martensite Matrix

Austenitic Mn Steel

-

Hardness

HRC≥48

HB470&HB321-370

HRC≥50

HRC≥56

HB≤300

HRC≥56

Impact Value

AK≥40J

-

AK≥10J

AK≥4J

AK≥80J

-
