Hardness AK5-15J High Abrasion Steel Mill Liners Standard AS 2027 CrMo 15 / 3
Hardness AK5-15J High Abrasion Steel Mill Liners Standard AS 2027 CrMo 15 / 3
Hardness AK5-15J High Abrasion Steel Mill Liners Standard AS 2027 CrMo 15 / 3
Hardness AK5-15J High Abrasion Steel Mill Liners Standard AS 2027 CrMo 15 / 3
Specifications
Place of Origin :
Jiangsu,China (Mainland)
Brand Name :
Chen‘s Liner
Model Number :
DF029
MOQ :
5 Ton/Tons
Price :
Discuss in email
Packaging Details :
Packed by steel pallets.
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons per Month
Port :
Shanghai
Certification :
ISO 9001
Hardness :
More than HRC50
Application :
Ball Mill,Coal Mill,Mine Mill
MOQ :
5tons
Product Name :
Ball Mill Liners
Material :
Iron
Dimensions :
As per drawings
Description

Hardness AK5-15J High Abrasion Steel Mill Liners

Standard AS 2027 CrMo 15 / 3

Summarization

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.

Specification

Model Number DF029
Material Cr15Mo3
Hardness ≥HRC50
Dimension As per drawing
Standard AS2027/Cr15Mo3
Process Sand Casting
Impact Value ≥AK 10J
Inspection

Dimensional Inspection

Chemical Composition Inspection

Hardness Inspection

UT Test
Application Coal Mill,Cement Mill,Mining Industry etc.
MOQ 5Tons
Delivery Time Depends on the quantity to be ordered.
Port Shanghai
Package Steel Pallets
Payment Terms T/T,L/C

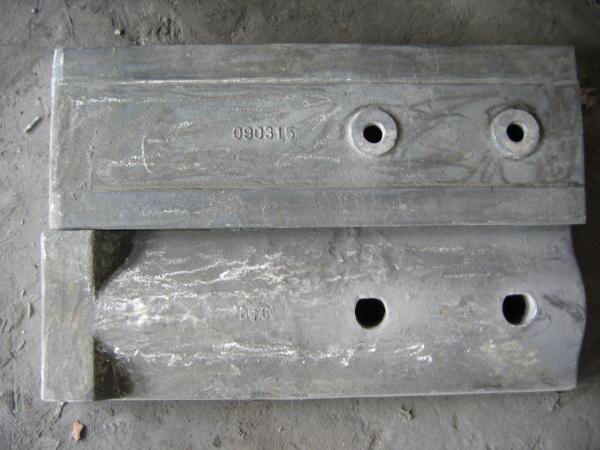

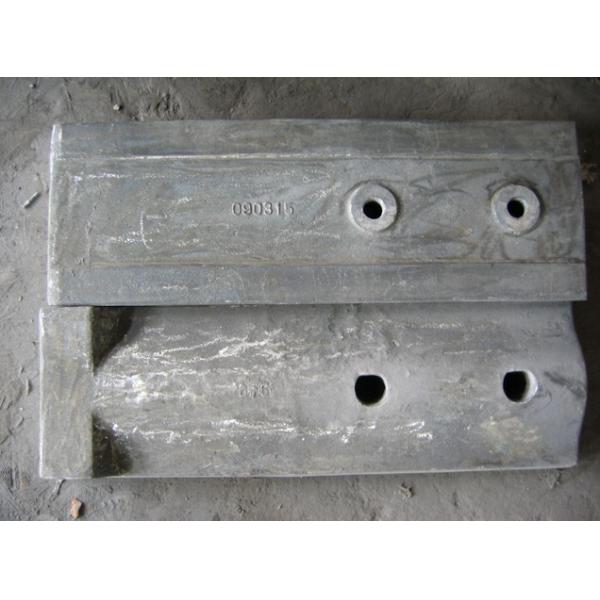

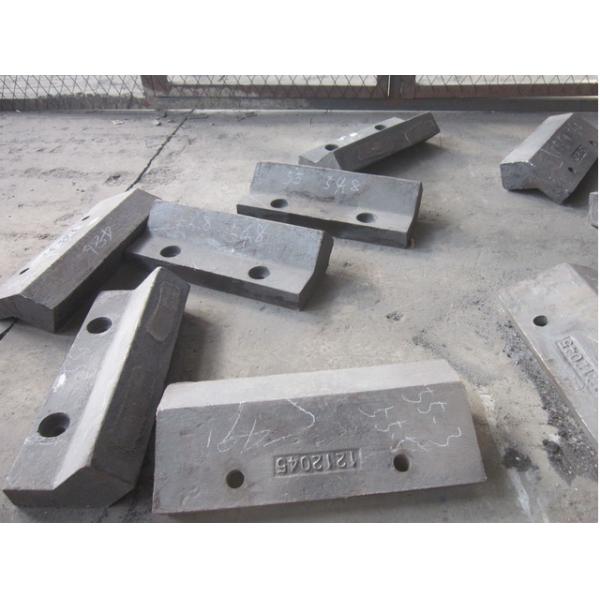

Product Photo

Hardness AK5-15J High Abrasion Steel Mill Liners Standard AS 2027 CrMo 15 / 3

Hardness AK5-15J High Abrasion Steel Mill Liners Standard AS 2027 CrMo 15 / 3

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -
