High Abrasion Performance Steel Mill Liners Standard GB/T 8263-1999
High Abrasion Performance Steel Mill Liners Standard GB/T 8263-1999
High Abrasion Performance Steel Mill Liners Standard GB/T 8263-1999
High Abrasion Performance Steel Mill Liners Standard GB/T 8263-1999
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF023
MOQ :
5 Ton/Tons
Price :
Discuss in email
Packaging Details :
Packed by steel pallets.
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons per Year
Port :
Shanghai
Certification :
ISO9001
Product Name :
Cement Mill Liners
Application :
Mine Mill,Coal Mill,Coal-fired Plant
Feature :
HRC52-65, AK5-15J
Material :
Iron
Dimensions :
As per drawings
Hardness :
More than HRC50
Description

High Abrasion Performance Steel Mill Liners Standard

GB/T 8263-1999

Specification

1.Material:Iron

2.Hardness:More than HRC50

3.Feature:HRC52-65, AK5-15J

4.Application:Cement Mill

5.MOQ:5tons

6.Dimensions:Cr15,Cr12

We specially design the material for cement mill liners ,Which includes boltless liners,shell liners,

grate plates ,end liners etc..The material can not only achieve ideal hardness (more than HRC50)

but also ideal toughness value (AK30~100J).

The liners are more reliable and safer than normal liners,it also can save the cost.We can produce

cement mill liners as per the drawings of customers.

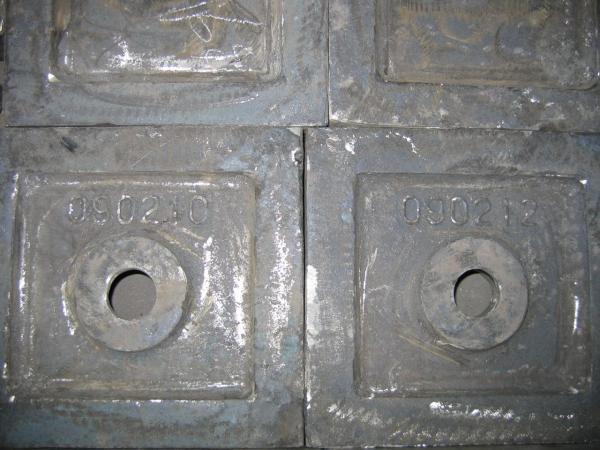

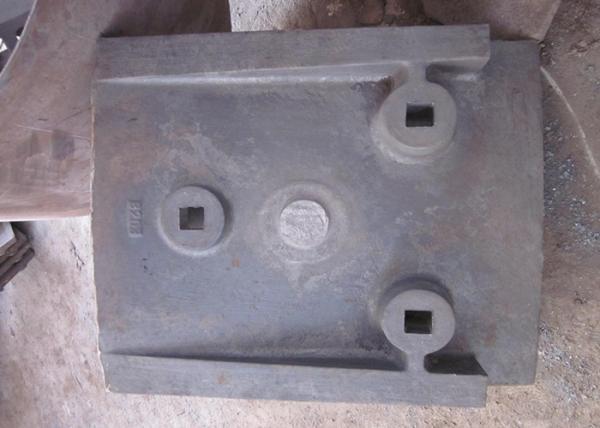

Product Photo

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Inspection Facilities

Spectrometer Portable Hardness Tester

UT Test Electronic Metallographic Microscope

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
