Checked by UT Test Cr-Mo Alloy Steel Mill Liners Mine Mill / Cement Mill / Coal Mill Hardness HRC33-42 Shot Blasting
Checked by UT Test Cr-Mo Alloy Steel Mill Liners Mine Mill / Cement Mill / Coal Mill Hardness HRC33-42 Shot Blasting
Checked by UT Test Cr-Mo Alloy Steel Mill Liners Mine Mill / Cement Mill / Coal Mill Hardness HRC33-42 Shot Blasting
Checked by UT Test Cr-Mo Alloy Steel Mill Liners Mine Mill / Cement Mill / Coal Mill Hardness HRC33-42 Shot Blasting
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF073
MOQ :
5 Ton/Tons
Price :
Discuss in email
Packaging Details :
Packed in strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time :
It depends on quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
25000 Tons per Year
Port :
Shanghai
Material :
Steel
Microstructure :
Predominantly pearlite
Material Grade :
AS 2074 L/2B
Surface Finish :
Visual inspection after shot blasting
Casting Soundness :
Level 2 of AS2574 or equivalent standard
Dimensional Checking & Gauginge :
100% check
Description

Cr-Mo Steel Mill Liners Castings Used Stably In Large Mine Mills

Specification

1.Material:Cr-Mo Alloy Steel

2.Hardness:HRC33-42

3.Impact Value:More than AK50J

4.Application:Mining Industry

5.MOQ:5tons

Our company is a Chinese specialized manufacturer of alloy steel castings.

We can produce alloy steel castings as per the drawings of customers.

Now we have been the regular suppliers of mill liners for Metso;Connect,Australia;

DuoBaoShan Coal Mill.

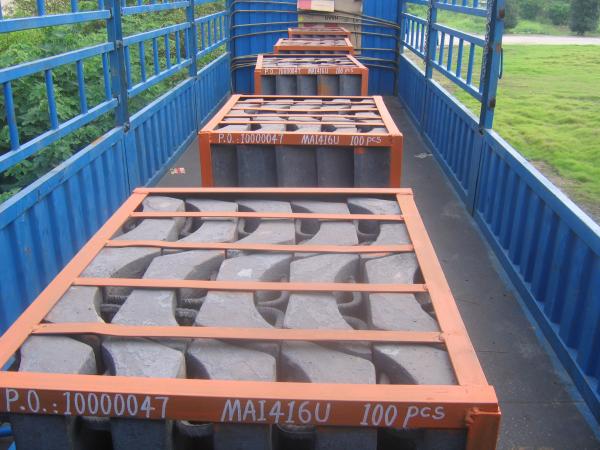

Product Photo

Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification		 DL/T 681-1999
GB/T26651-2011		 AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Inspection Facilities

Spectrometer Portable Hardness Tester

UT Test Electronic Metallographic Microscope

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
