Pearlite Steel Casting Parts , Alloy Steel Casting For SAG Mill DF074
Pearlite Steel Casting Parts , Alloy Steel Casting For SAG Mill DF074
Pearlite Steel Casting Parts , Alloy Steel Casting For SAG Mill DF074
Pearlite Steel Casting Parts , Alloy Steel Casting For SAG Mill DF074
Pearlite Steel Casting Parts , Alloy Steel Casting For SAG Mill DF074
Pearlite Steel Casting Parts , Alloy Steel Casting For SAG Mill DF074
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF074
MOQ :
5 Ton/Tons
Price :
Discuss in email
Packaging Details :

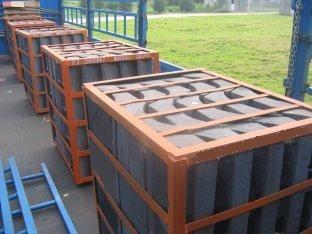

Packed in strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time :
It depends on quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
25000 Tons per Year
Port :
Shanghai
Application :
SAG mill
Material :
Steel
Dimensions :
As per drawings
Hardness :
HRC33~42 (HB310~390)
Microstructure :
Predominantly pearlite
Dimensional Checking & Gauging :
100% check
Surface Finish :
Visual inspection after shot blasting
Material Grade :
AS 2074 L/2B
Description

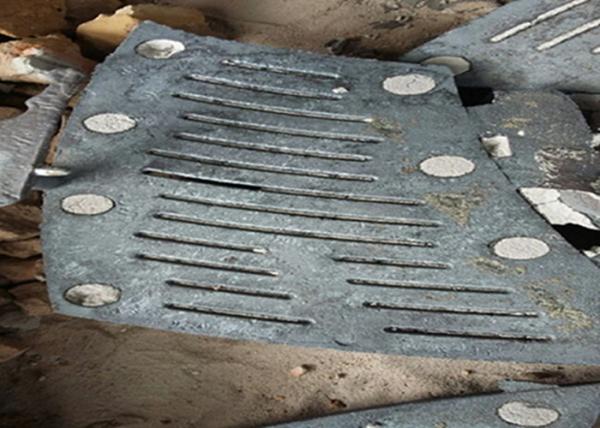

Pearlite Steel Casting Parts , Alloy Steel Casting For SAG Mill DF074

Quick Details

Pearlite Steel Castings Feature:

1.AG mill liners have popular & safer application in mines;
2.Steel castings can be used stably in large mine mills.

Pearlite Steel Castings Description:

a. The hardness for Pearlitic CrMo Cast Steel Cap: HRc33~42 (HB310~390);

b. Microstructure: Pearlite;

c. Chemical Composition: Every melt is analysed by Spectrometer;

d. Dimensional Checking & Gauging: 100% check as per drawings;

1. By visual inspection,

2. By gauges check;

e. Casting Soundness: Checked by UT test as per international standard.

f. Surface Finish: Visual inspection after shot blasting; To achieve an acceptable level of surface texture, freedom from defects;

g. Reporting: Providing chemical,dimensional and hardness reports.

China alloy steel castings supplier provides crusher spare parts services to worldwide alloy steel casting customer. Hope you find our special alloy steel casting process and stainless steel castings product description helpful.

In the recent 20 years, our liners have been widely used in large, medium and small ball mills in Chinese power generation, mining, cement, Chemical engineering and metallurgical industries and super fine pulverizing equipments. It is the only recommended liner product in the latest standard of the electric-power industry in China.

Technical Parameters

Wuxi Orient Anti-wear Engineering Co., Ltd.

Chemical Composition & Mechanical Property of Wear-resistant Castings

Item

Cr-Mo

Alloy Steel I

Cr-Mo

Alloy Steel II

Cr-Mo

Alloy Steel III

High Cr white iron

High Cr Alloy Steel

High Manganese Steel

Ni-Hard cast iron

C

0.30~0.50

0.65~0.90

0.40~0.90

2.40~3.20

1.1~2.2

0.90~1.30

2.40~3.60

Si

0.50~1.20

≤0.75

0.70~1.20

0.60~1.20

0.60~1.20

≤0.08

≤0.80

Mn

0.40~1.20

0.50~1.20

0.60~1.00

0.50~1.00

0.50~1.00

11.00~18.00

≤2.0

Cr

1.70~2.50

1.50~2.50

4.00~7.00

12.00~30.00

11.00~30.00

1.50~2.50

1.5~10

S

≤0.04

≤0.06

≤0.04

≤0.04

≤0.04

≤0.04

≤0.15

P

≤0.04

≤0.06

≤0.06

≤0.06

≤0.06

≤0.06

≤0.15

Mo

≤0.5

≤0.5

≤0.5

0.10~3.0

0.10~3.0

≤1.0

≤0.10

Cu

0.10~0.60

≤0.25

0.20~0.40

0.10~1.00

0.10~1.00

-

-

Ni

≤0.50

≤0.30

0~0.30

0~0.30

0~0.30

-

3.3~10

Re

≤0.02

≤0.02

≤0.02

-

-

-

-

Equivalent

Specifications

DL/T 681-1999

GB/T26651-2011

AS 2074 L2B Mod

DL/T 681-1999

GB/T 8263-1999

AS 2027 Cr27

AS 2027 CrMo 15/3

AS 2027 CrMo 20/2/1

ASTM A532 Class III type A 25% Cr

ASTM A532Class II type B 15% Cr-Mo

BS 4844 3E

DIN1695

NFA32401.

GB/T 5680-1998

DL/T 681-1999

JIS G 5153-1999

ASTM A 128

DIN GX120Mn12

AFNOR:Z120Mn12

GB/T 8263-1999

AS 2027/Ni-Cr1-550

AS 2027/Ni-Cr2-500

AS 2027/Ni-Cr4-500

AS 2027/Ni-Cr4-600

AS 2027/Ni-Cr4-630

ASTM A 532 1-A,B,C,D

ASTM A 532 2-A,B,C,D,E

ASTM A 532 3-A

Material Type

Martensite Steel

Martensite or

Pearlitic Cr Mo Steel

Martensite Steel

Martensite matrix

Austenitic Mn Steel

-

Hardness

HRc≥48

HB470 &

HB 321~370

HRc≥50

HRc≥56

HB≤300

HRc≥56

Impact Value

Ak≥40J

-

Ak≥10J

Ak≥4J

Ak≥80J

-

Our foundry has complete melting, heat treatment and test equipments, such as mid-frequency induction electrical furnaces, quenching and tempering furnaces, blast shot, spectrometer, Rockwell and Brinell Hardness tester, impactor, UT tester and metallographic microscope. We achieved the certificate of quality management system ISO 9001:2008. We have been exporting castings to oversea markets, such as Brazil, Australia and South Africa.
