Energy Saving Ball Mill Liners / End Liner SiO2 Mill High Cr White Iron
Energy Saving Ball Mill Liners / End Liner SiO2 Mill High Cr White Iron
Energy Saving Ball Mill Liners / End Liner SiO2 Mill High Cr White Iron
Energy Saving Ball Mill Liners / End Liner SiO2 Mill High Cr White Iron
Specifications
Place of Origin :
Jiangsu,China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF480
MOQ :
2Ton/Tons
Price :
USD 1950~4380 / Ton
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg
Delivery Time :
It depends on quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
5000Ton/Tons per Year
Port :
Shanghai
Certification :
ISO9001
Material :
Iron
Dimensions :
As per drawings
Application :
Ball mills
Impact Value :
More than AK10J
Hardness for High Cr White Iron :
More than HRC56
Product Name :
Ball Mill Liners
Description

Energy Saving Ball Mill Liners / End Liner SiO2 Mill High Cr White Iron

Summarization

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.

Specification

Model Number DF480
Material High Cr Cast Iron
Hardness ≥HRC56
Dimension As per drawing
Process Sand Casting
Impact Value ≥AK 10J
Inspection

Dimensional Inspection

Chemical Composition Inspection

Hardness Inspection

UT Test
Application Coal Mill,Cement Mill,Mining Industry etc.
MOQ 2Tons
Delivery Time Depends on the quantity to be ordered.
Port Shanghai
Payment Terms T/T,L/C

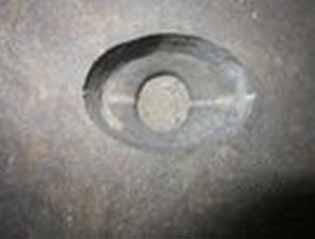

Product Photo

Energy Saving Ball Mill Liners / End Liner SiO2 Mill High Cr White Iron

Energy Saving Ball Mill Liners / End Liner SiO2 Mill High Cr White Iron

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -
