High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment
High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment
Specifications
Brand Name :
Chen's Liner
Model Number :
DF683
Certification :
ISO 9001:2008
Place of Origin :
China(Mainland)
MOQ :
4Tons
Price :
FOBShanghai USD2500-3200/ton
Payment Terms :
T/T,L/C
Supply Ability :
4500Tons/year
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg;
Material :
High Cr Cast Iron
Hardness :
More than HRC60
Dimension :
As per drawing
Package :
Steel Pallet
MOQ :
2tons
OEM： :
Yes
Inspection: :
UT&MT
Impact Value： :
More than AK49J
Heat Treatment： :
Quenching&Tempering
Description

High Chrome Wear-resistant Castings With Hardness More Than HRC60

Specification

1. Material:High Cr Cast Iron

2. Hardness:≥HRC60

3. Impact Value:AK5-15J

4. Application:Mining Industry

5. MOQ:2tons

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.

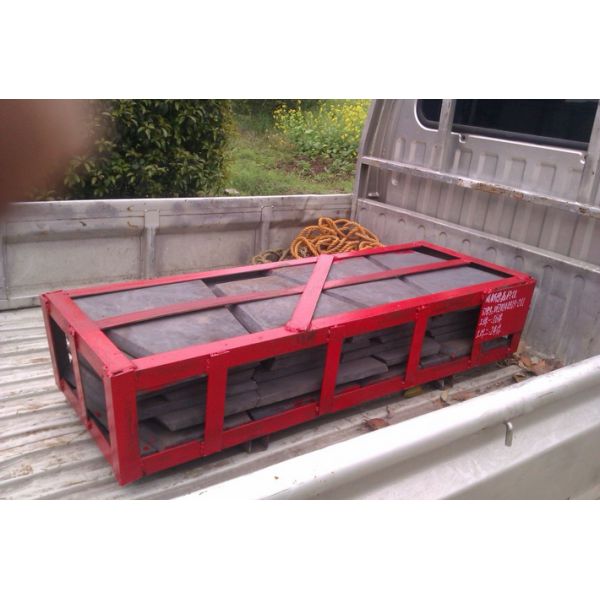

Product Photo

High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment

Inspection Facilities

Spectrometer Portable Hardness Tester

High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment

UT Test Electronic Metallographic Microscope

High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment

Process

High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment

Honor

High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment

About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.

The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical furnaces with capacity of 30 tons, 10 tons,3 tons.

High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment High Chrome Cement Mill Liners Quenching & Tempering Heat Treatment

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
