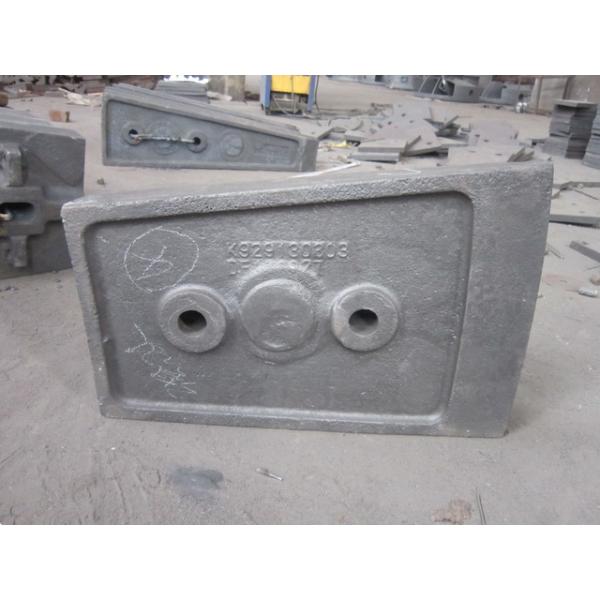

Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment
Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment
Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment
Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment
Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment
Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment
Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment
Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment
Specifications
Place of Origin :
Jiangsu,China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF049
MOQ :
2 Ton/Tons
Price :
Discuss in email

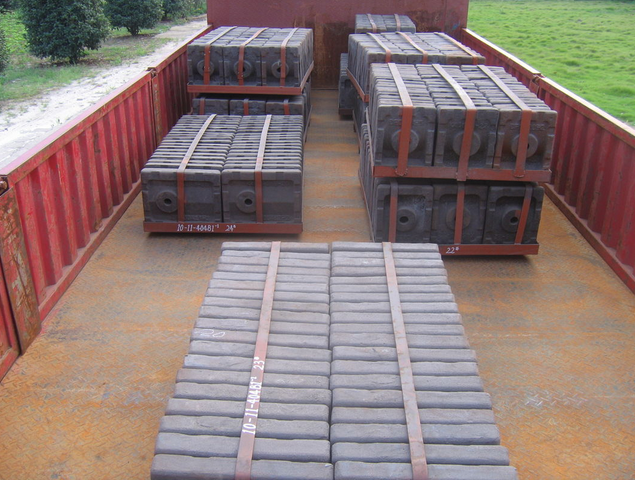

Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings are loaded
Delivery Time :
It depends on quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
3000 Ton/Tons per Year
Certification :
ISO 9001:2008
Material :
Mn18Cr2 Steel
Application :
Cement mills
Dimensions :
As per drawing
Hardness :
Less than HB300
Impact Value :
More than AK10J
Product Name :
Ball Mill Liners
Inspection :
UT&MT
Surface quality :
Good surface quality after shot blasting
Description

Cement Mill Ball Mill Liners Mn18Cr2 Steel Casting Heat Treatment

Summarization

High Manganese Steel is a traditional wear-resistant steel,it is widely used for high impact working condition.The yield strength can reach 60,000--85,000 psi,tensile strength 120,000--130,000 psi,and elongation35%-50%.

Specification

Model Number DF049
Material High Mn Steel
Hardness Less than HB300
Dimension As per drawing
Process Sand Casting
Impact Value ≥AK 100J
Inspection

Dimensional Inspection

Chemical Composition Inspection

Hardness Inspection

UT Test
Application Coal Mill,Cement Mill,Mining Industry etc.
MOQ 6Tons
Delivery Time Depends on the quantity to be ordered.
Port Shanghai
Package Steel Pallets
Payment Terms T/T,L/C

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -
