Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill
Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill
Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill
Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF560
MOQ :
2 Ton/Tons
Price :
USD 1950~4380 / Ton
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons / Year
Port :
Shanghai
Certification :
ISO 9001:2008
Application :
Cement Mill,Coal Mill,Mine Mill
Material :
Iron
Dimensions :
As per drawings
Hardness :
More than HRC55
Model No :
DF560
MOQ :
2Tons
Surface quality :
Good surface quality after shot blasting
Inspection :
UT&MT
Description

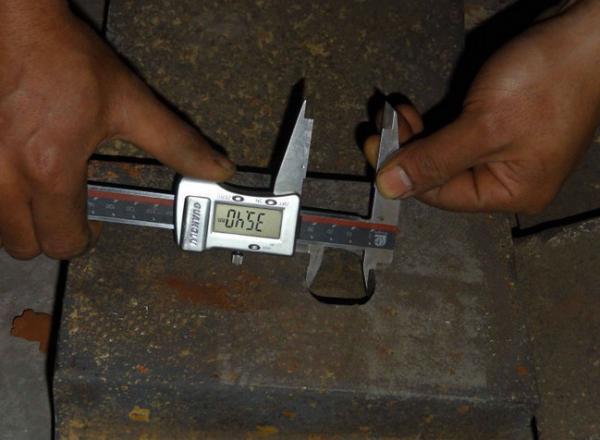

Hole Diameter Check for High Cr Cast Iron Liners

Specification

1.Material:High Cr Cast Iron

2.Hardness:≥HRC55

3.Impact Value:More than AK10J

4.Application:Mining Industry

5.MOQ:2tons

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.

Product Photo

Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill

Inspection Facilities

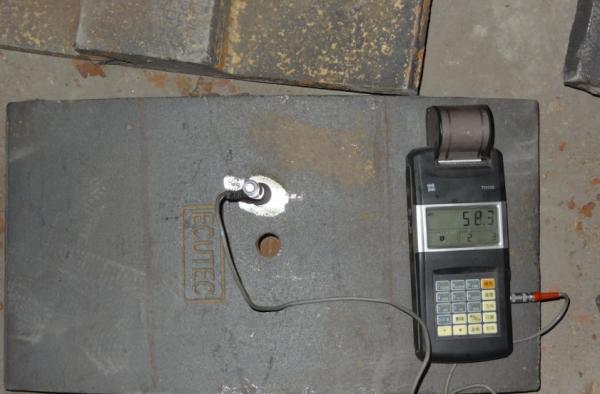

Spectrometer Portable Hardness Tester

Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill

UT Test Electronic Metallographic Microscope

Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill

Honor

Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill Hole Diameter Check for High Cr Cast Iron Liners Coal Mill / Cement Mill / Mine Mill

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
