Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43
Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43
Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43
Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43
Specifications
Place of Origin :
Jiangsu,China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF642
MOQ :
2 Tons
Price :
FOB Shanghai USD2000-2500/t
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg;
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
T/T,L/C
Supply Ability :
4500Tons/year
Certification :
ISO 9001:2008
Hardness :
HRC33-43
Impact value :
More Than AK70J
Dimension :
As per drawings
Application :
Mining Industry
Standard :
Conform to AS 2074 L/2B
MOQ :
2 Tons
Surface quality :
Good surface quality after shot blasting
Inspection :
UT&MT
Description

Boltless Ball Shell Liners For Mine Mills

Specification

1.Material:Cr-Mo Alloy Steel

2.Hardness:HRC33-43

3.Impact Value:More than AK70J

4.Application:Mining Industry

5.MOQ:2tons

Our company is a Chinese specialized manufacturer of alloy steel castings.

We can produce alloy steel castings as per the drawings of customers.

Now we have been the regular suppliers of mill liners for Metso;Connect,Australia;

DuoBaoShan Coal Mill.

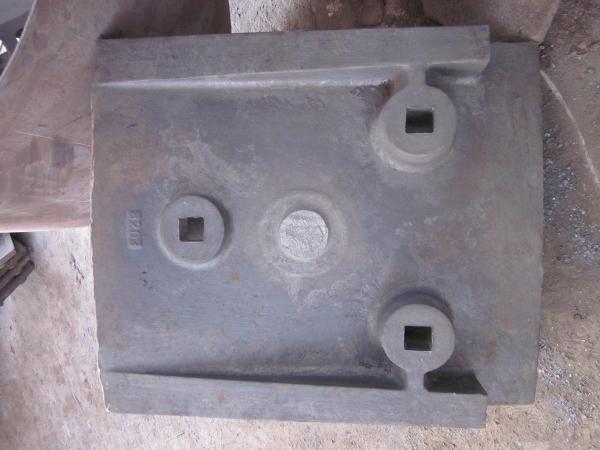

Product Photo

Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43 Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43

Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification		 DL/T 681-1999
GB/T26651-2011		 AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43 Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43

Inspection Facilities

Spectrometer Portable Hardness Tester

Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43 Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43

UT Test Electronic Metallographic Microscope

Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43 Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43

Process

Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43

Honor

Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43 Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43 Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43

About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.

The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical furnaces with capacity of 30 tons, 10 tons,3 tons.

Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43 Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43 Boltless Ball Shell Liners For Mine Mills Standard ISO9001:2000 Hardness HRC33-43

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
