Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43
Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43
Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43
Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43
Specifications
Brand Name :
Chen’s Liner
Model Number :
DF1026
Certification :
ISO 9001:2008
Place of Origin :
Jiangsu,China (Mainland)
MOQ :
3 Tons
Price :
Discuss in email
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons per Month
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Packed by steel pallets.
Material :
Cr-Mo Alloy Steel
Dimension :
As per drawings
Application :
Mining Industry
Package :
Steel Pallet
Hardness :
HRC33-43
Product Name :
Mill Liners
Description

Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43

Specification

The Cr-Mo Alloy Steel Castings have the following features:

1. Hardness:HRC33-43

2. Internal Quality: we check the internal quality with UT test;

3. External Quality: we check the external quality with MT test & visual inspection.

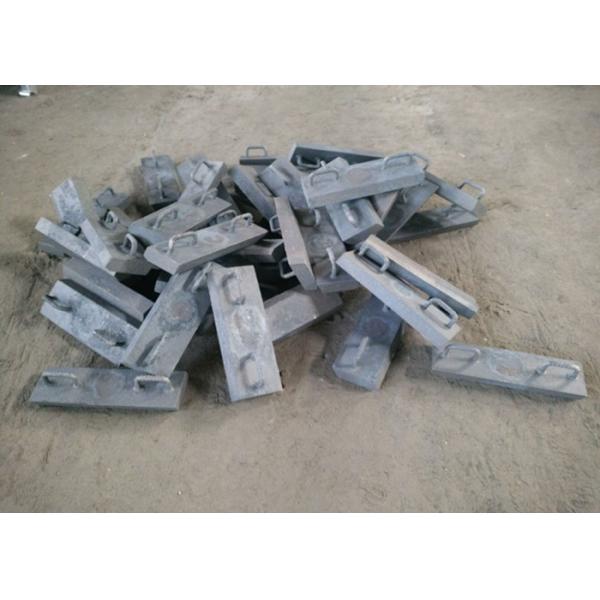

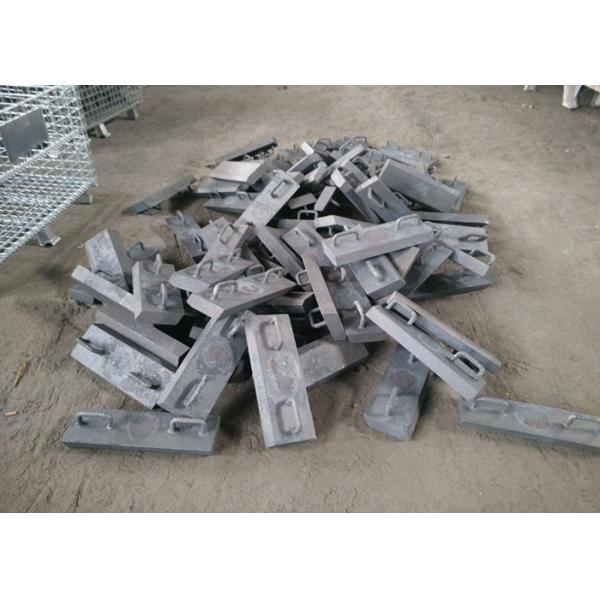

Product Photo

Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43

Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43

Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification		 DL/T 681-1999
GB/T26651-2011		 AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J

Production Facilities

1T,1.5T,3T, 5T,12T,15T Induction

Electrical Furnaces Heat Treatment Electrical Furnaces

Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43 Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43

Inspection Facilities

Spectrometer Portable Hardness Tester

Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43 Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43

UT Test Electronic Metallographic Microscope

Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43 Cr - Mo Alloy Steel Castings Lifter Bars for Mining Industry , Hardness HRC33-43

About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings. Our main

products are ball mill liners, grinding media and wear parts for crushers.

The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacities of Mid-frequency induction electric furnaces are

15tons, 12tons, 5tons, 2tons, 1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical furnaces

with capacity of 30 tons, 10 tons,3 tons.
