Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54
Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54
Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54
Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54
Specifications
Brand Name :
Chen's Liner
Model Number :
DF058
Certification :
ISO 9001:2008
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3 Ton/Tons
Price :
Discuss in email
Payment Terms :
L/C,T/T
Supply Ability :
3500 Ton/Tons per Year
Delivery Time :
It depends on quantity to be ordered.
Packaging Details :
Packed in strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Port :
Shanghai
Material :
Ni-hard Cast Iron
Casting Process :
Sand Casting
Dimension :
As per drawing
MOQ :
2tons
Application :
Mining Industry
OEM :
Yes
Product Name： :
Mill Liners
Hardness： :
More than HRC50
Impact Value： :
More than AK49J
Heat Treatment： :
Quenching&Tempering
Description

1Tonne Deflector Wear-resistant Castingsr Feed Head / Small Magnetic Head

Specification

1. Material:Ni-hard Cast Iron

2. Hardness:≥HRC54

3. Impact Value:AK5-15J

4. Application:Mining Industry

5. MOQ:2tons

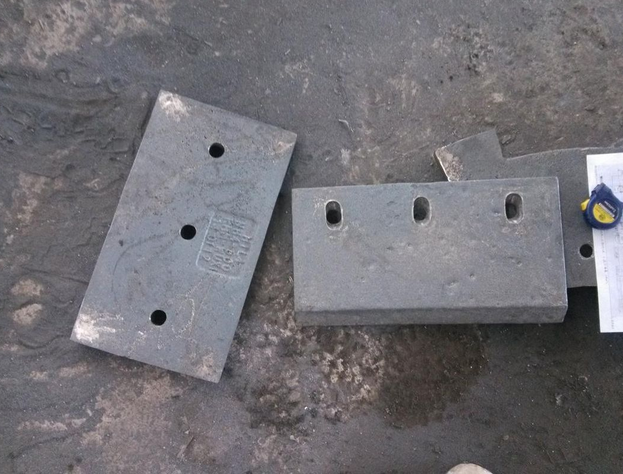

Product Photo

Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54 Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54

Inspection Facilities

Spectrometer Portable Hardness Tester

Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54 Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54

UT Test Electronic Metallographic Microscope

Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54 Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54

Process

Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54

Honor

Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54 Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54 Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54

About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.

The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical furnaces with capacity of 30 tons, 10 tons,3 tons.

Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54 Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54 Ni-hard Cast Iron Wear-resistant Castingsr Feed Head Hardness More Than HRC54

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
