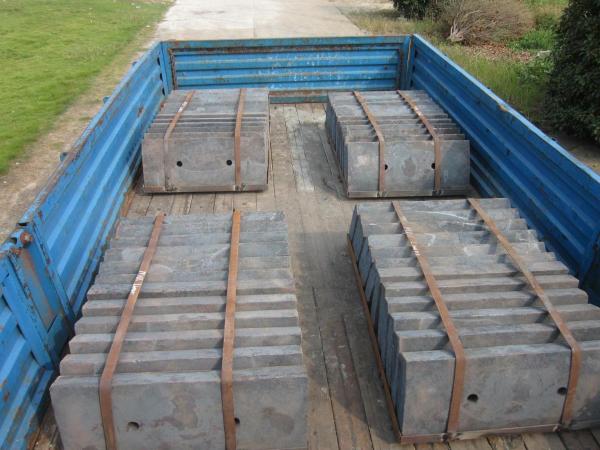

Cr-Mo Alloy Shell Liners for Dia.2.2m Mill

1. Hardness difference from surface to center is less than HRC2.

2. The series are designed for higher reliability in AG mills and SAG mills.

3. HRC33-43.

4. AK≥60J.

5.The bolt holes are clean,smooth.

Our main product series are ball mill liners, wear parts for crushers and grinding media. Boltless Ball Mill Liners decrease maintenance of liners and save the cost of bolts. What’s more, our boltless-liner design can exert the maximum quenching hardness of metal material while the bolted-liner design has to scarify the quenching hardness to get better toughness because each bolt hole is a source of thousands of crackings.

Patented Anti-wear Product

We possess famous patented product------ Combined Self-fastened (Boltless) Ball Mill Liners, or called CHINA BEST LINER.

In 2012, we registered a new patent about Liner Technology.

In December of 2000, we successfully registered the international patent in Canada.

In 1988 and 1997, we claimed domestic patents for ball mill liners .

The outstanding advantage of our liners is boltless.

The general advantages in coal mills are as follows:

The additional advantages in coal mills are as follows:

So far, we have supplied more than 400 sets of boltless coal mill liners for Chinese Coal-fired Power Plants.

<1> Martensite Cr-Mo Alloy Steel Coal Mill Liners

In the normal working condition, the lifetime of the liners is about 4 to 6 years.

<2> High Cr Coal Mill Liners

In the normal working condition,the service lifetime of the liners is more than 8 years.

In Huaibei Power Plant, our high Cr Coal Mill Liners are used for 14 years without Repairs.

<3> Cr26 Coal Mill Liners

In the normal working condition, the lifetime of the liners is more than 10 years.

Product Details:

Application :cement mill, coal mill, mine mill

Material :Alloy Steel

Dimensions :As per drawings

Hardness for High Cr White Iron : HRC33-43

In the recent 20 years, our liners have been widely used in large, medium and small ball mills in Chinese power generation, mining, cement, Chemical engineering and metallurgical industries and super fine pulverizing equipments. It is the only recommended liner product in the latest standard of the electric-power industry in China.

Technical Parameters

Wuxi Orient Anti-wear Engineering Co., Ltd.

Chemical Composition & Mechanical Property of Wear-resistant Castings

Our foundry has complete melting, heat treatment and test equipments, such as mid-frequency induction electrical furnaces, quenching and tempering furnaces, blast shot, spectrometer, Rockwell and Brinell Hardness tester, impactor, UT tester and metallographic microscope. We achieved the certificate of quality management system ISO 9001:2008. We have been exporting castings to oversea markets, such as Brazil, Australia and South Africa.
