HB300 Hardness AK118J Impact Value High Manganese Steel Casting
HB300 Hardness AK118J Impact Value High Manganese Steel Casting
HB300 Hardness AK118J Impact Value High Manganese Steel Casting
HB300 Hardness AK118J Impact Value High Manganese Steel Casting
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF017
MOQ :
5 Metric Ton/Metric Tons
Price :
Discuss in email
Packaging Details :
Packed in steel pallets.
Delivery Time :
It depends on quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Metric Ton/Metric Tons per Year
Port :
FOBShanghai
Certification :
ISO:9001
Application :
Coal Mill,Mine Mill,Cement Mill
Material :
Steel
Dimensions :
As per drawings
Microstructure :
Austenite
Hardness :
Less than HB300
Advantage :
High Toughness
Description

HB300 Hardness AK118J Impact Value High Manganese Steel Casting

Specification

1.Material:High Mn Steel

2.Application:Coal Mill,Mine Mill,Cement Mill

3.MOQ:5tons

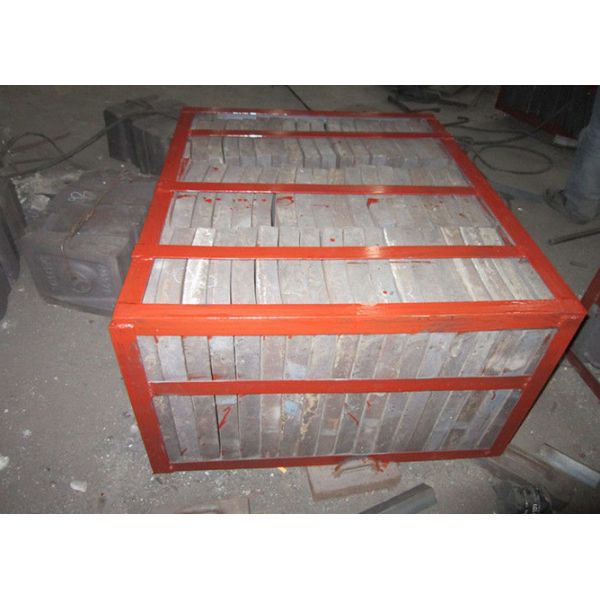

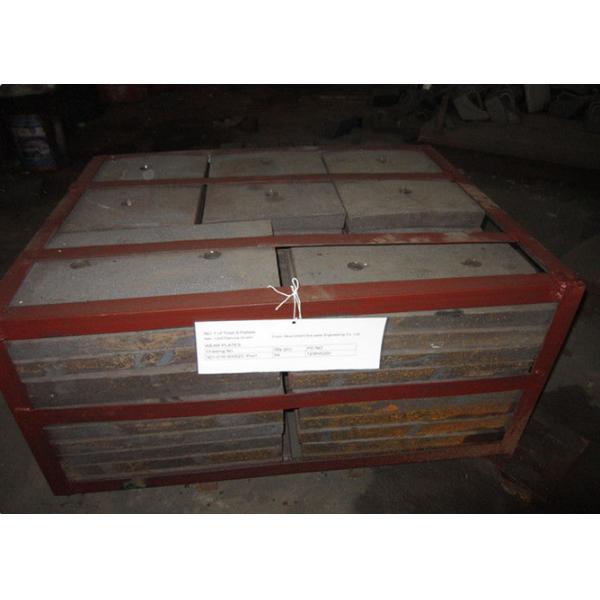

Product Photo

HB300 Hardness AK118J Impact Value High Manganese Steel Casting HB300 Hardness AK118J Impact Value High Manganese Steel Casting

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

HB300 Hardness AK118J Impact Value High Manganese Steel Casting HB300 Hardness AK118J Impact Value High Manganese Steel Casting

Inspection Facilities

Spectrometer Portable Hardness Tester

HB300 Hardness AK118J Impact Value High Manganese Steel Casting HB300 Hardness AK118J Impact Value High Manganese Steel Casting

UT Test Electronic Metallographic Microscope

HB300 Hardness AK118J Impact Value High Manganese Steel Casting HB300 Hardness AK118J Impact Value High Manganese Steel Casting

Process

HB300 Hardness AK118J Impact Value High Manganese Steel Casting

Honor

HB300 Hardness AK118J Impact Value High Manganese Steel Casting HB300 Hardness AK118J Impact Value High Manganese Steel Casting HB300 Hardness AK118J Impact Value High Manganese Steel Casting

About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.

The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical furnaces with capacity of 30 tons, 10 tons,3 tons.

HB300 Hardness AK118J Impact Value High Manganese Steel Casting HB300 Hardness AK118J Impact Value High Manganese Steel Casting HB300 Hardness AK118J Impact Value High Manganese Steel Casting

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
