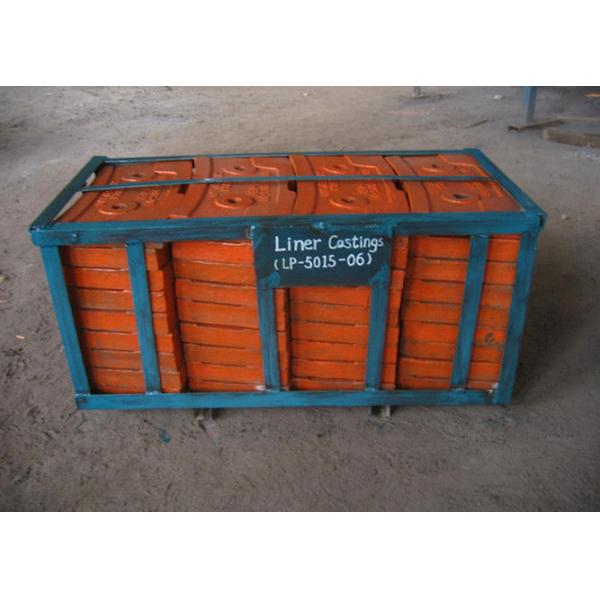

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK
Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK
Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK
Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF036
MOQ :
3 Ton/Tons
Price :
Discuss in email
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time :
It depends on the quantity to be ordered
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons per Year
Port :
Shanghai
Certification :
ISO:9001
Application :
Coal Mill,Mine Mill,Cement Mill
Material :
Steel
Dimensions :
As per drawings
Hardness :
Less than HB300
Impact Value :
More than AK147J
Material Grade :
Mn13Cr2
Description

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills

Specification

1.Material:Mn13Cr2

2.Application:Coal Mill,Mine Mill,Cement Mill

5.MOQ:3tons

Product Photo

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK

Inspection Facilities

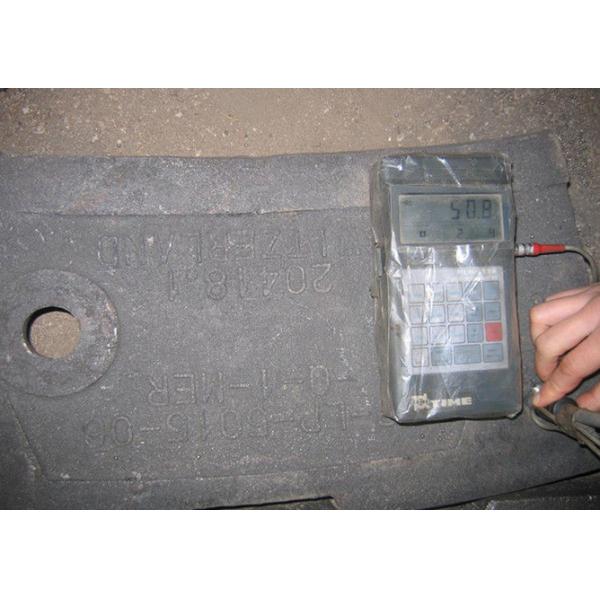

Spectrometer Portable Hardness Tester

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK

UT Test Electronic Metallographic Microscope

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK

Process

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK

Honor

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK

About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.

The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical furnaces with capacity of 30 tons, 10 tons,3 tons.

Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK Packed in Steel Pallets High Wear-resistant Castings Mn13 For Mine Mills Deliver to UK

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
