High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF511
MOQ :
2 Tons
Price :
USD 1600~2300 / Ton
Packaging Details :
Packed by steel pallets.
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
3500 Ton/Tons per Year
Certification :
ISO9001:2008
Application :
Mine mill
Material :
Mn Steel
Dimensions :
As per drawings
hardness :
More than HB218
Impact Value :
More than AK15J
Product Name :
Crusher Wear Parts
Description

OEM Crusher Wear Parts Hammers For Cone Crushers

Quick Details

Material:High Mn Steel

Hardness:≥HB218

Application:Hammer Crusher

Dimension:According to the client's drawing

MOQ:2 Tons

Shipment Port:Shanghai Port

Delivery Time:It depends on the quantity to be ordered.

Technical Parameters

Chemical Composition & Mechanical Property of Wear-resistant Castings

Item

Cr-Mo

Alloy Steel

High Cr white iron

High Cr Alloy Steel

High Manganese Steel

C

0.65~0.90

2.40~3.20

1.1~2.2

0.90~1.30

Si

≤0.75

0.60~1.20

0.60~1.20

≤0.08

Mn

0.50~1.20

0.50~1.00

0.50~1.00

11.00~18.00

Cr

1.50~2.50

12.00~30.00

11.00~30.00

1.50~2.50

S

≤0.06

≤0.04

≤0.04

≤0.04

P

≤0.06

≤0.06

≤0.06

≤0.06

Mo

≤0.5

0.10~3.0

0.10~3.0

≤1.0

Cu

≤0.25

0.10~1.00

0.10~1.00

-

Ni

≤0.30

0~0.30

0~0.30

-

Re

≤0.02

-

-

-

Equivalent

Specifications

AS 2074 L2B Mod

GB/T 8263-1999

AS 2027 Cr27

AS 2027 CrMo 15/3

AS 2027 CrMo 20/2/1

ASTM A532 Class III type A 25% Cr

ASTM A532Class II type B 15% Cr-Mo

BS 4844 3E

DIN1695

NFA32401.

GB/T 5680-1998

DL/T 681-1999

JIS G 5153-1999

ASTM A 128

DIN GX120Mn12

AFNOR:Z120Mn12

Material Type

Martensite or

Pearlitic Cr Mo Steel

Martensite matrix

Austenitic Mn Steel

Hardness

HB470 &

HB 321~370

HRc≥56

HB≤300

Impact Value

-

Ak≥4J

Ak≥80J

Our Testing

High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers

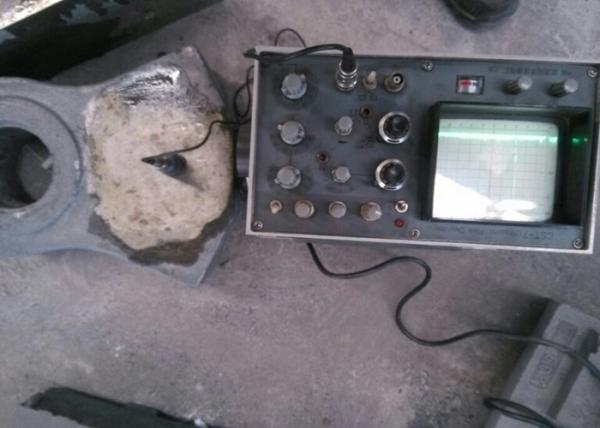

Our foundry has complete melting, heat treatment and test equipments, such as mid-frequency induction electrical furnaces, quenching and tempering furnaces, blast shot, spectrometer, Rockwell and Brinell Hardness tester, impactor, UT tester and metallographic microscope. We achieved the certificate of quality management system ISO 9001:2008. We have been exporting castings to oversea markets, such as Brazil, Australia and South Africa.

Our Factory

High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers

Our Service

High Manganese Steel OEM Crusher Wear Parts hammers For Cone Crushers
