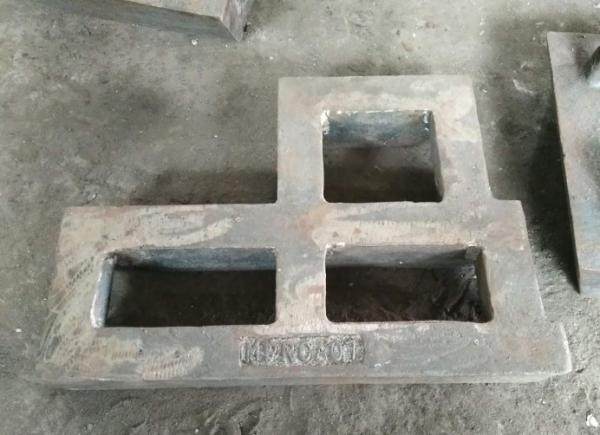

Custom Manganese Steel Crusher Wear Parts for Crusher , High Mn Steel
Custom Manganese Steel Crusher Wear Parts for Crusher , High Mn Steel
Specifications
Brand Name :
Chen's Liner
Model Number :
DF512
Certification :
ISO 9001:2008
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
2 tons
Price :
USD 2200~2700 / Ton
Payment Terms :
L/C,T/T
Supply Ability :
3500 Ton/Tons per Year
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Packed by strong steel pallets;The load of each pallet is less than 2500kg;The castings will be load
Application :
Concaves & Mantles for Cone Crushers
Material :
High Mn Steel
Dimensions :
As per drawings
Impact Value :
More than 147J
Hardness :
Less than HB300
Description

Custom Manganese Steel High Mn Steel Crusher Wear Parts for Crusher

Quick Details

Jaw Plates for Jaw Crushers Feature:

1.Jaw plates for jaw crushers;
2.Hammers and impact plates for impact crushers;
3.Concaves and mantles for cone crushers.

Jaw Plates for Jaw Crushers Description:

A. Jaw plates and cheek plates for jaw crushers,

B. Blow bars, hammers and impact plates for impact crushers;

C. Concaves and mantles for cone crushers.

D. Depending on the specific working conditions, all wear parts can be ordered

as Manganese Steel, high Cr cast iron or Cr-Mo Alloy Steel.

China crusher wear parts supplier provides crusher spare parts services to worldwide crusher spares customer. Hope you find our rock crusher parts process and impact crusher parts product description helpful.

In the recent 20 years, our liners have been widely used in large, medium and small ball mills in Chinese power generation, mining, cement, Chemical engineering and metallurgical industries and super fine pulverizing equipments. It is the only recommended liner product in the latest standard of the electric-power industry in China.

Technical Parameters

Wuxi Orient Anti-wear Engineering Co., Ltd.

Chemical Composition & Mechanical Property of Wear-resistant Castings

Item

High Cr white iron

Ni-Hard cast iron

C

2.40~3.20

2.40~3.60

Si

0.60~1.20

≤0.80

Mn

0.50~1.00

≤2.0

Cr

12.00~30.00

1.5~10

S

≤0.04

≤0.15

P

≤0.06

≤0.15

Mo

0.10~3.0

≤0.10

Cu

0.10~1.00

-

Ni

0~0.30

3.3~10

Re

-

-

Equivalent

Specifications

GB/T 8263-1999

AS 2027 Cr27

AS 2027 CrMo 15/3

AS 2027 CrMo 20/2/1

ASTM A532 Class III type A 25% Cr

ASTM A532Class II type B 15% Cr-Mo

BS 4844 3E

DIN1695

NFA32401.

GB/T 8263-1999

AS 2027/Ni-Cr1-550

AS 2027/Ni-Cr2-500

AS 2027/Ni-Cr4-500

AS 2027/Ni-Cr4-600

AS 2027/Ni-Cr4-630

ASTM A 532 1-A,B,C,D

ASTM A 532 2-A,B,C,D,E

ASTM A 532 3-A

Material Type

Martensite matrix

-

Hardness

HRc≥56

HRc≥56

Impact Value

Ak≥4J

-

Our foundry has complete melting, heat treatment and test equipments, such as mid-frequency induction electrical furnaces, quenching and tempering furnaces, blast shot, spectrometer, Rockwell and Brinell Hardness tester, impactor, UT tester and metallographic microscope. We achieved the certificate of quality management system ISO 9001:2008. We have been exporting castings to oversea markets, such as Brazil, Australia and South Africa.
