Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Certification :
ISO 9001:2008
Model Number :
DF145
MOQ :
2 Tons
Price :
Discuss in email

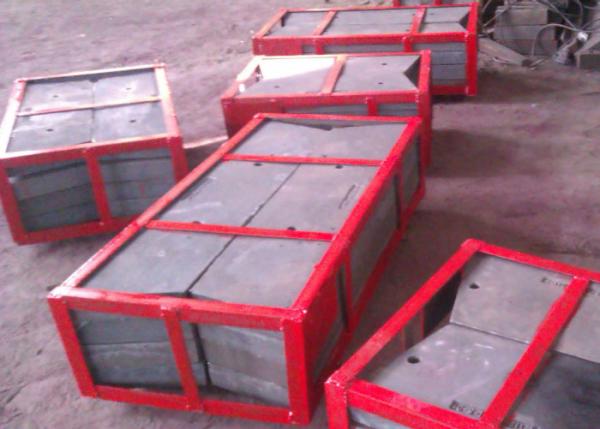

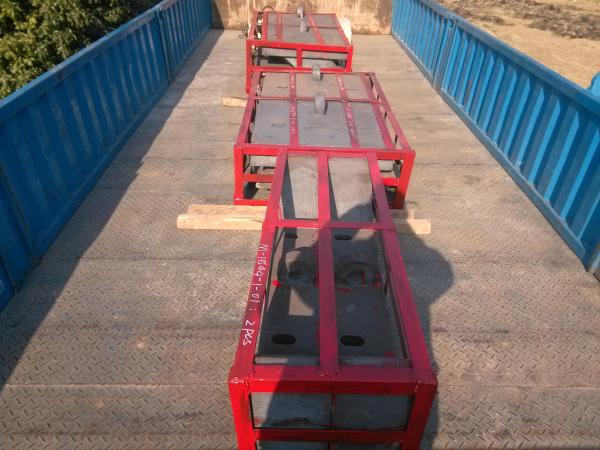

Packaging Details :
Packed by steel pallets.
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
30000 Ton/Tons per Year
Material :
Cr15
Hardness :
≥HRC60
Impact Value :
As per drawing
Assembly Face :
More than5J
Application :
Jaw Crushers
Product Name :
Crusher Wear Parts
Heat treatment :
Quenching and Tempering

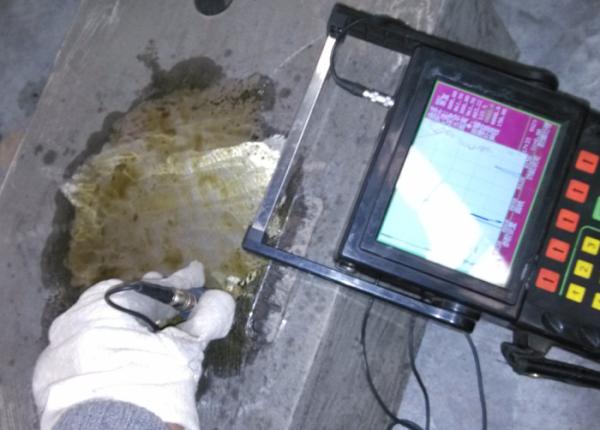

Inspection :
UT&MT
Description

Crusher Parts High Cr Cast Iron Chute Liners for High Toughness Values

Quick Details

1. Material:High Cr Cast Iron

2. The series are designed for high abrasion performance and high toughness values.

3. Hardness:more than HRC58.

4. Microstructure:Fine Martensite + Carbide + retained Austenite(≤6%).

High Cr Chute Liners for Mine Machinery

1. Hardness difference from surface to center is less than HRC2.

2. The Cr15 Chute Liners are designed for high abrasion performance.

3. Hardness:more than HRC58.

4. Surface of castings is free from burnt sand & smooth.

5. It is free from hard spot,visible injurious defects such as blow hole,porosity,shrinkage,cracks,cold-shlations.

6. Excellent wear performance:under same working condition,the wear property of High Chrome Jaw Plates is four times of that of high manganese steel plates and twice of that of low Chrome alloy steel plates.

In the recent 20 years,our liners have been widely used in large,medium and small ball mills in Chinese power generation,mining,cement,Chemical engineering and metallurgical industries and super fine pulverizing equipments.It is the only recommended liner product in the latest standard of the electric-power industry in China.

Technical Parameters

Chemical Composition & Mechanical Property of Wear-resistant Castings

Item

Cr-Mo Alloy Steel

High Cr white iron

High Manganese Steel

C

0.65~0.90

2.40~3.20

0.90~1.30

Si

≤0.75

0.60~1.20

≤0.08

Mn

0.50~1.20

0.50~1.00

11.00~18.00

Cr

1.50~2.50

12.00~30.00

1.50~2.50

S

≤0.06

≤0.04

≤0.04

P

≤0.06

≤0.06

≤0.06

Mo

≤0.5

0.10~3.0

≤1.0

Cu

≤0.25

0.10~1.00

-

Ni

≤0.30

0~0.30

-

Re

≤0.02

-

-

Equivalent

Specifications

AS 2074 L2B Mod

GB/T 8263-1999

AS 2027 Cr27

AS 2027 CrMo 15/3

AS 2027 CrMo 20/2/1

ASTM A532 Class III type A 25% Cr

ASTM A532Class II type B 15% Cr-Mo

BS 4844 3E

DIN1695

NFA32401.

GB/T 5680-1998

DL/T 681-1999

JIS G 5153-1999

ASTM A 128

DIN GX120Mn12

AFNOR:Z120Mn12

Material Type

Martensite or

Pearlitic Cr Mo Steel

Martensite matrix

Austenitic Mn Steel

Hardness

HB470 &

HB 321~370

HRc≥56

HB≤300

Impact Value

-

Ak≥4J

Ak≥80J

Our foundry has complete melting,heat treatment and test equipments,such as mid-frequency induction electrical furnaces,quenching and tempering furnaces,blast shot,spectrometer,Rockwell and Brinell Hardness tester,impactor,UT tester and metallographic microscope.We achieved the certificate of quality management system ISO 9001:2008.We have been exporting castings to oversea markets,such as Brazil, Australia and South Africa.
