High Manganese Steel Shell Liners Visual Check for Mining Industry
High Manganese Steel Shell Liners Visual Check for Mining Industry
High Manganese Steel Shell Liners Visual Check for Mining Industry
High Manganese Steel Shell Liners Visual Check for Mining Industry
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF1005
MOQ :
2 Ton/Tons
Price :
USD 2400~2450 / Ton
Packaging Details :
Packed in steel pallets.
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
450Ton/Tons / Year
Port :
Shanghai
Certification :
ISO 9001:2008
Surface Quality :
100% Visual Check
Application :
Cement Mill
Material :
High Cr White Iron
Dimensions :
As per drawings
Product Name :
Cement Mill Liners
Advantage :
Better Toughness
OEM :
Yes
Hardness :
More than HRC50
Description

High Manganese Steel Shell Liners Visual Check for Mining Industry

Specification

1. Material:High Mn Steel

2. Advantage:Better Toughness

3. Surface Quality:100% Visual Check

4. Application:Mining Industry

5. MOQ:2tons

Our company is a Chinese specialized manufacturer of alloy steel castings.

We can produce alloy steel castings as per the drawings of customers.

Now we have been the regular suppliers of mill liners for Metso;Connect,Australia;

DuoBaoShan Coal Mill.

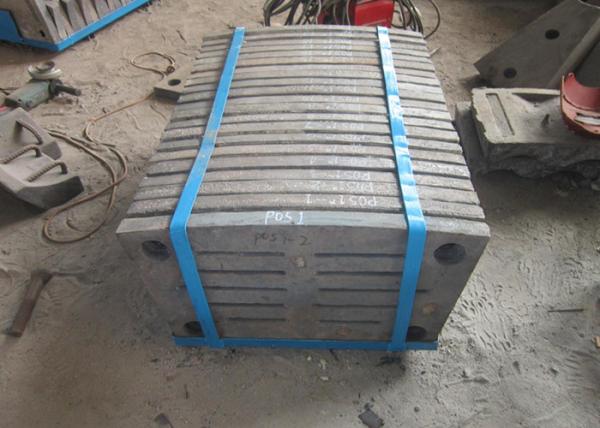

Product Photo

High Manganese Steel Shell Liners Visual Check for Mining Industry High Manganese Steel Shell Liners Visual Check for Mining Industry

Technical Parameters

Item Cr-Mo Alloy Steel Ⅰ Cr-Mo Alloy Steel Ⅱ Cr-Mo Alloy Steel Ⅲ
C 0.3-0.5 0.65-0.90 0.4-0.9
Si 0.15-1.20 ≤0.75 0.7-1.2
Mn 0.4-1.2 0.5-1.2 0.6-1.0
Cr 1.7-2.5 1.5-2.5 4.0-7.0
S ≤0.04 ≤0.06 ≤0.04
P ≤0.04 ≤0.06 ≤0.06
Mo ≤0.5 ≤0.5 ≤0.15
Cu 0.1-0.6 ≤0.25 0.2-0.4
Ni ≤0.5 ≤0.3 0-0.3
Re ≤0.02 ≤0.02 ≤0.02
Equivalent
Specification		 DL/T 681-1999
GB/T26651-2011		 AS2074L2B Mod DL/T 681-1999
Material Type Martensite Steel Martensite or Pearlitic Cr Mo Steel Martensite Steel
Hardness HRC≥48 HB470&HB321-370 HRC≥50
Impact Value AK≥40J - AK≥10J

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

High Manganese Steel Shell Liners Visual Check for Mining Industry High Manganese Steel Shell Liners Visual Check for Mining Industry

Inspection Facilities

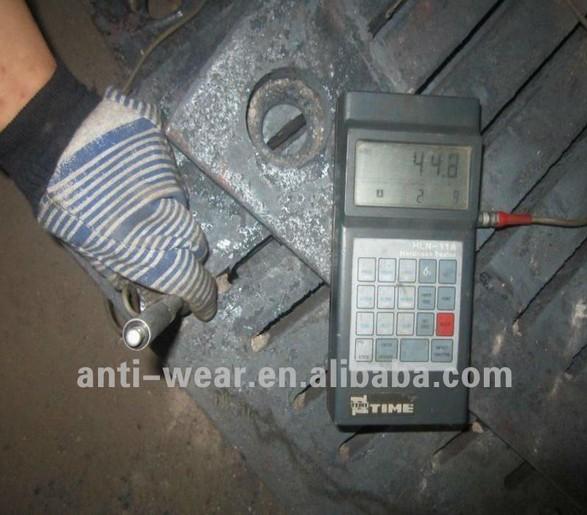

Spectrometer Portable Hardness Tester

High Manganese Steel Shell Liners Visual Check for Mining Industry High Manganese Steel Shell Liners Visual Check for Mining Industry

UT Test Electronic Metallographic Microscope

High Manganese Steel Shell Liners Visual Check for Mining Industry High Manganese Steel Shell Liners Visual Check for Mining Industry

Honor

High Manganese Steel Shell Liners Visual Check for Mining Industry High Manganese Steel Shell Liners Visual Check for Mining Industry High Manganese Steel Shell Liners Visual Check for Mining Industry

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
