Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58
Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58
Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58
Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58
Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58
Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58
Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58
Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Chen's Liner
Model Number :
DF716
MOQ :
2 Ton/Tons
Price :
USD 2500~3200 / Ton
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Delivery Time :
It depends on quantity to be ordered.
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons / Year
Port :
Shanghai
Certification :
ISO9001:2008
Application :
Mining Industry
Dimension :
According to detailed drawing
Hardness :
More than HRC58
Material Grade :
KmTBCr18
MOQ :
2tons
Surface quality :
Good surface quality after shot blasting
Inspection :
UT&MT
Description

Industrial White Iron Castings / Chute Liners Sand Castings

Specification

Model Number DF716
Material High Cr Cast Iron
Hardness More than HRC58
Dimension As per drawing
Casting Process Sand Casting
Heat Treatment Process Quenching and Tempering
Impact Value ≥AK10J
Inspection

Dimensional Inspection

Chemical Composition Inspection

Hardness Inspection

UT Test
Application Coal Mill,Cement Mill,Mining Industry etc.
MOQ 2Tons
Delivery Time Depends on the quantity to be ordered.
Port Shanghai
Package Steel Pallets
Payment Terms T/T,L/C

Technical Parameters

Item High Cr White Iron
C 2.4-3.2
Si 0.6-1.2
Mn 0.5-1.0
Cr 12.0-30.0
S ≤0.04
P ≤0.06
Mo 0.1-3.0
Cu 0.1-1.0
Ni 0-0.3
Re -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401
Material Type Martensite Matrix
Hardness HRC≥56
Impact Value AK≥4J

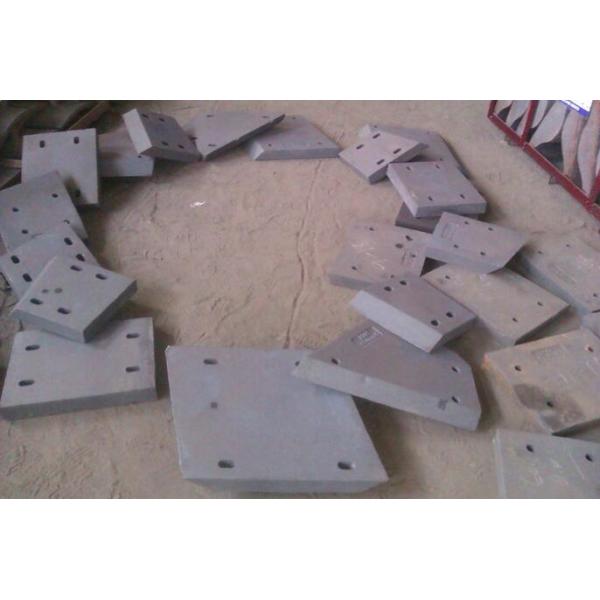

Product Photo

Industrial White Iron Castings / Chute Liners Sand Castings Hardness More Than HRC58

Summarization

High Cr white iron material possess a combination of superior abrasion resistance and a reasonable

degree of toughness. The high Cr castings have longer service life than the other material,such as

high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.
