GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher
GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher
GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher
GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher
Specifications
Brand Name :
Chen's Liner
Model Number :
DF794
Certification :
ISO 9001:2008
Place of Origin :
China(Mainland)
MOQ :
3 tons
Price :
USD2000-2500 per ton
Payment Terms :
L/C,T/T
Supply Ability :
5000 tons per year
Delivery Time :
It depends on quantity to be ordered.
Packaging Details :
Packed with Steel Pallets
Material :
GX140MnCr 14 - 2
Application :
Ore Crusher
Dimension :
As per drawing
Weight :
760KG
Maintenance Decreased :
Increased Above 98%
OEM： :
Yes
MOQ： :
2 Tons
Impact Value： :
More than AK49J
Heat Treatment： :
Quenching&Tempering
Description

GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron

Specification

1. Material:High Mn Steel

2. Hardness:Less Than HB300

3. Application:Mining Industry

4. MOQ:2tons

Technical Parameters

Item High Cr White Iron High Cr Alloy Steel High Mn Steel Ni-hard Cast Iron
C 2.4-3.2 1.1-2.2 0.9-1.3 2.4-3.6
Si 0.6-1.2 0.6-1.2 ≤0.8 ≤0.8
Mn 0.5-1.0 0.5-1.0 11.0-18.0 ≤2.0
Cr 12.0-30.0 11.0-30.0 1.5-2.5 1.5-10
S ≤0.04 ≤0.04 ≤0.04 ≤0.15
P ≤0.06 ≤0.06 ≤0.06 ≤0.15
Mo 0.1-3.0 0.1-3.0 ≤1.0 ≤0.1
Cu 0.1-1.0 0.1-1.0 - -
Ni 0-0.3 0-0.3 - 3.3-10
Re - - - -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401		 GB/T5680-1998
DL/T 681-1999
JIS G 5153-1999
ASTM A128
DIN GX120Mn12
AFNORZ120Mn12		 GB/T8263-1999
AS2027/Ni-Cr1-550
AS2027/Ni-Cr2-500
AS2027/Ni-Cr4-500
AS2027/Ni-Cr4-600
AS2027/Ni-Cr4-630
ASTM A532 1-A,B,C,D
ASTM A532 2-A,B,C,D,E
ASTM A532 3-A
Material Type Martensite Matrix Austenitic Mn Steel -
Hardness HRC≥56 HB≤300 HRC≥56
Impact Value AK≥4J AK≥80J -

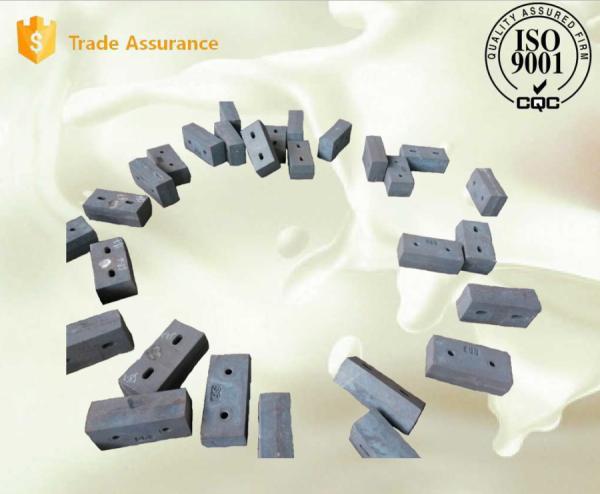

Product Photo

GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher

Inspection Facilities

Spectrometer Portable Hardness Tester

GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher

UT Test Electronic Metallographic Microscope

GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher

Process

GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher

Honor

GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher

About Us

We are a Chinese specialized manufacturer of wear, heat and corrosion-resistant castings.

Our main products are ball mill liners, grinding media and wear parts for crushers.

The area for our foundry is about 30,000 square meters. The capacity of our company is 30,000MT/year

and the single piece is from 15kg to 20tons. The capacitiesof Mid-frequency induction electric furnaces

are 15tons,12tons, 5tons,2tons,1.5tons and 1.2tons. And we have 10 sets of heat-treatment electrical furnaces with capacity of 30 tons, 10 tons,3 tons.

GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher GX140MnCr 14-2 Wear-resistant Castings , Grinding Path Impact Plate Schist Iron Ore Crusher

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
