Specifications
Brand Name :
JINMA
Model Number :
Jaw Crusher
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
US$ 2500-30000/piece
Payment Terms :
T/T
Delivery Time :
one month
Packaging Details :
Standard shipping packaging
type :
Jaw Crusher
name :
30kw Jaw Crusher Mining Equipment With Uniform Particle Size
purpose :
Crusher Machine
Motor Type :
AC Motor
Motor Power :
30kw
Application :
Construction
Materials :
Granite, Sand Stone, River Stone
Keyword :
Mining Equipment
Description

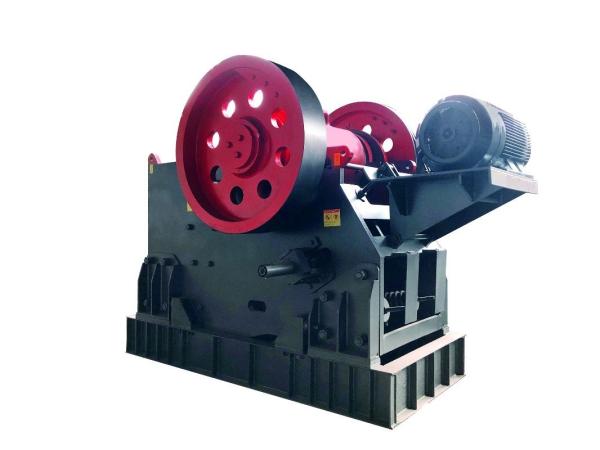

30kw Jaw Crusher Mining Equipment With Uniform Particle Size

Jaw crusher working principle

The electrical motor transmits power to the eccentric shaft through v-belt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw forwards and downwards. This movement would trigger the plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards the fixed jaw', materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which meted the requirement will be discharged from the outlet. Since the motor keeps working, the crusher and discharge periodically to achieve mass production.

Name 30kw Jaw Crusher Mining Equipment With Uniform Particle Size
Attributes Mining Equipment
Model 30kw Jaw Crusher

Technical Specifications and Performance

Basic parameters Inlet port width mm Inlet port length mm Maximum feeding size mm Discharge port adjustment range mm Production capacity t/h Motor Power kw Machine Weight t Dimensions mm
PE250x400 250 400 210 20-60 4-14 15 3 1450X1350X1400
PE250X500 250 500 210 20-60 5-16 18.5 4.1 1320x1400x1320
PE400X600 400 600 340 35-85 8-25 30 6.95 1700x1800x1650
PE500X750 500 750 425 50-100 30-70 55 10.5 2118x1962x1843
PE600X900 600 900 500 75-125 40-100 75 20 2600x2180x2325
PE750X1060 750 1060 630 80-140 80-180 95 25.5 2550x2322x3110
PE900X1200 900 1200 750 95-165 200-290 110 49.5 3110x3026x3280
PE1200x1500 1200 1500 950 160-280 300-500 200 88 4590x3272x4033
PEX150X750 150 750 120 15-45 5-14 15 3 1194x1531x1089
PEX250X750 250 750 210 25-60 8-15 30 4.98 1520x1750x1270
PEX250X1000 250 1000 210 25-60 10-25 30 6.34 1530x1992x1380
PEX250X1200 250 1200 210 20-60 30-52 45 9.5 2300x2120x1500


Company introduction

Tangshan Mine Machinery Factory is a specialized manufacturer that produces complete sets of equipment for metallurgy, mining, building materials, environmental protection, as well as the design and manufacture of complete sets of sand and gravel materials, and the design and manufacture of dry tailings discharge. The company was founded in 1971 and turned into a joint-stock enterprise in 1997.

The company occupies more than 50 acres, with total assets of 90 million yuan and more than 200 employees, including 96 engineering and technical personnel.

Various processing and testing equipment: 8 meters, 5 meters, 4 meters vertical lathes, 8 meters, 5 meters, 3.15 meters gear hobbing machine, 6 meters planer, precision boring machine, medium frequency quenching and other larger processing equipment and automatic welding, ultrasonic welding More than 300 sets of flaw detectors, W15-23 material testing machines, aging vibration devices, etc.

The products are sold all over the country and exported to Russia, Mongolia, South Korea, Chile and other international markets.

30kw Jaw Crusher Mining Equipment With Uniform Particle Size30kw Jaw Crusher Mining Equipment With Uniform Particle Size

FAQ to save your precious time!

Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

Q3: How long does it take to deliver?

Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

Q4: Do you provide machine operation guidance?

Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
